Johnson Controls LSWU User Manual

JOHNSON CONTROLS
15
SECTION 2 – INSTALLATION
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019

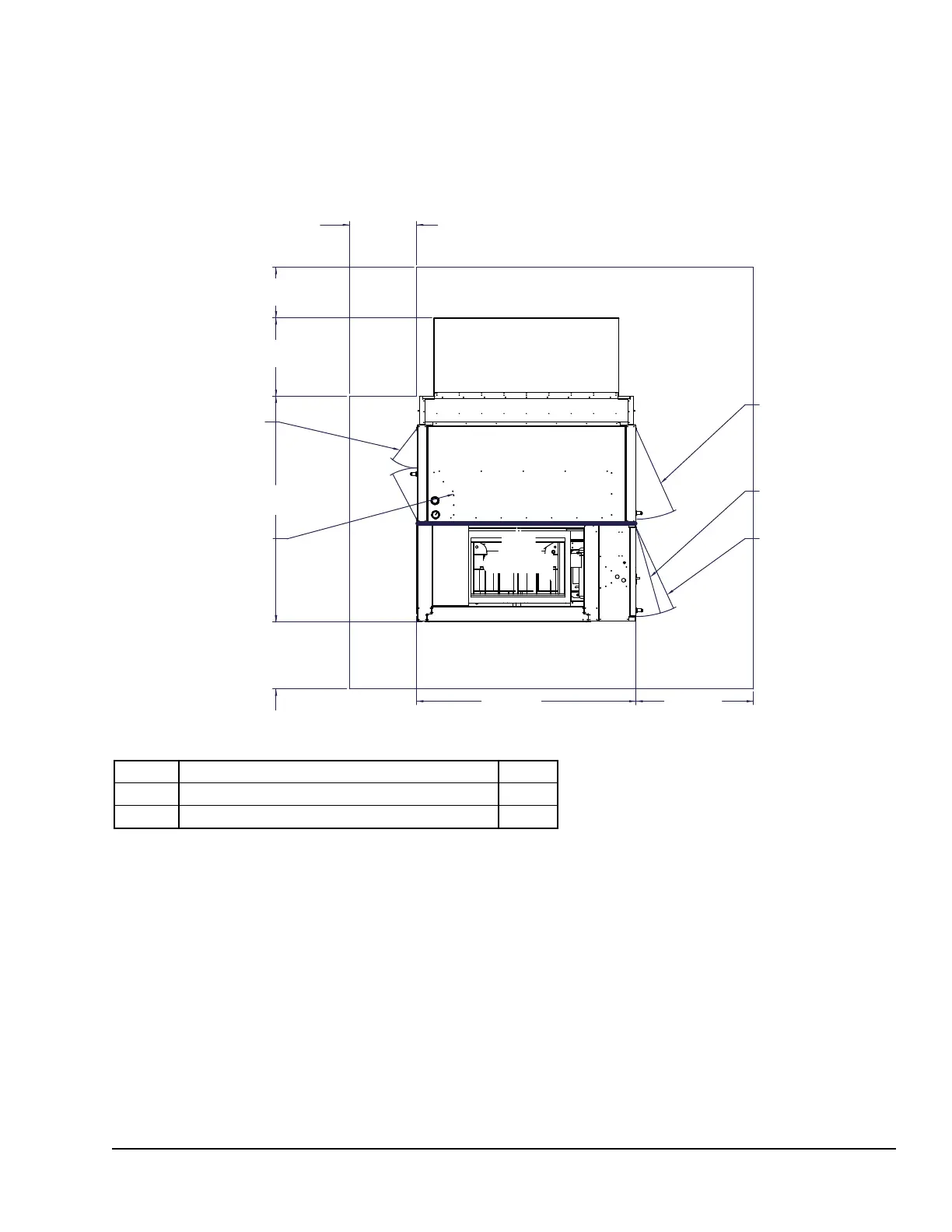

FIGURE 5 - RECOMMENDED SERVICE AND MAINTENANCE CLEARANCE WITH SOUND ATTENUATING
PLENUM (LSW_025–040)
075-83768-907 REV --
NO. FILTER OPTIONS “A”
1 4 inch lter 76.43
2 4 inch prelter + 4 inch high efciency lter 80.68
NOTE:
1. All dimensions are in inches.
24 inch clearance required
on standard units, 3 inch
clearance required on units
with low clearance option.
24 inch clearance required on stan-
dard units, 3 inch clearance required
on units with low clearance option.
Removable door
with hinges. One
door handle and tool
operated latch.
Entry door (under)
standard 32 wide x
44 inch high nominal
with one door handle
and tool operated
latch.
Electrical panel door.
Non removable with
hinges. One door
handle and tool
operated latch.
Optional when clear-
ance is available.
Removable doors
with hinges. One door
handle and one tool-
operated latch.
Removable internal
panel is provided for
access to water valves
when no leftside clear-
ance is required.
78.37
inch
42 inch
Clearance
18 inch Clearance
28 inch
FRONT
COIL SECTION
FILTER SECTION
REAR
SOUND ATTENUATING
PLENUM
LEFT
RIGHT
FAN
SECTION
“A”
