Johnson Controls LSWU User Manual

JOHNSON CONTROLS
25
SECTION 2 – INSTALLATION
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
LSW 70–105 ton units are shipped with twenty 2 x 6 x
1 inch thick vibration isolation pads as shown in Figure
13.
Proper placement of isolation devices
under the curb of the LSWU is critical to
the operation and noise reduction of the
unit. Isolation pads supplied with unit
are adequate for most installations when
placed and used per unit size diagram.
Do not attempt to install dollies in the cen-
ter of the unit. Units can become unstable
and tip over, causing injury.
Do not use hooks to lift unit or hook into
open channels to lift unit. This could
cause unit damage.

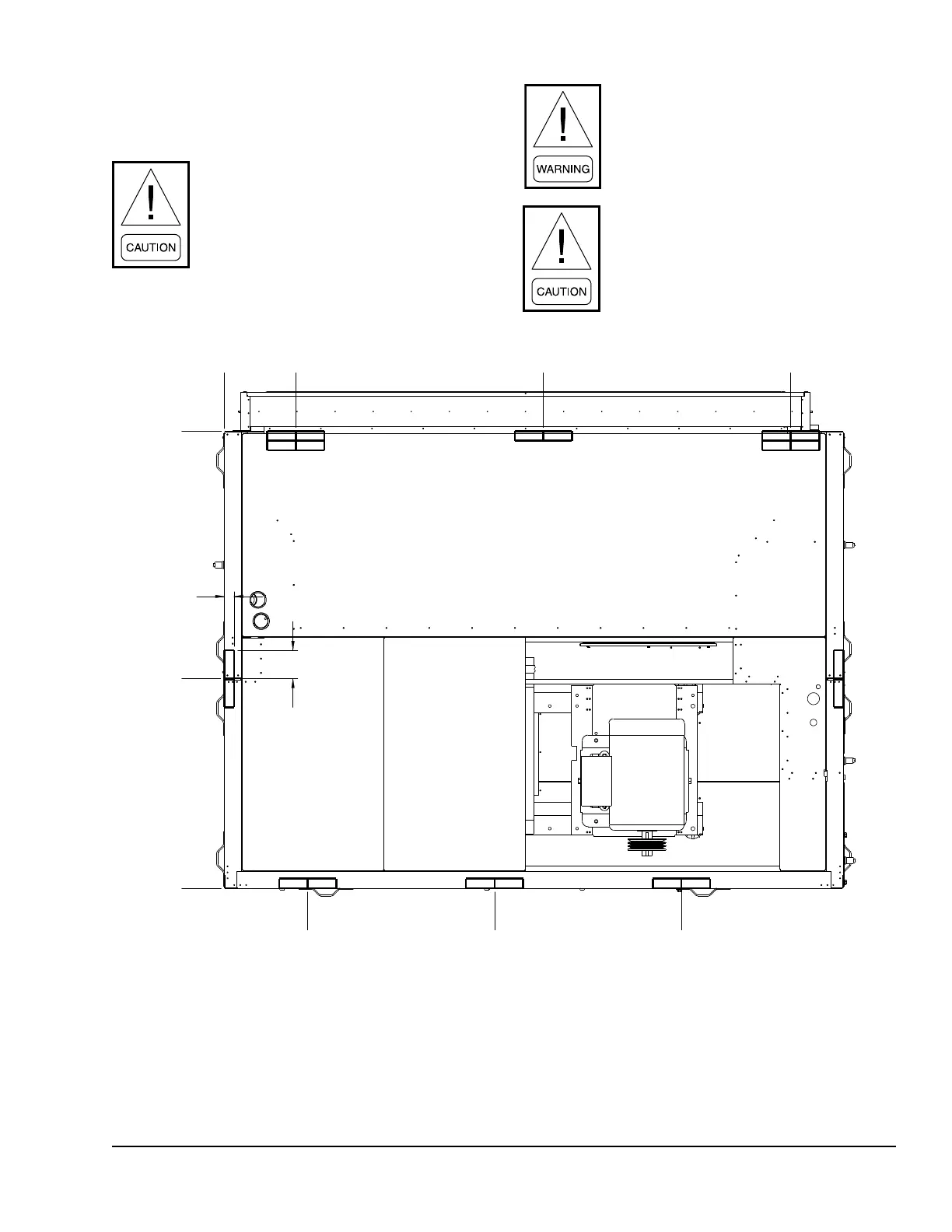

FIGURE 14 - VIBRATION ISOLATION PAD LOCATIONS (LSW_070–105)
15.00 0 67.00 119.00
17.50 56.75
FRONT
LEFT
RIGHT
FAN SECTION
FILTER SECTION
COIL SECTION
96.00
96.00
52.00
(SPLIT LINE
AT FLOOR
ELEVATION)
10 X 2.00
0
REAR
075-93744-910 REV - .PDF
NOTE:
1. All dimensions are in inches.
