Johnson Controls LSWU - FIGURE 16 - Lifting Recommendations, Coil Section Only (LSW

To Next Page

To Previous Page

JOHNSON CONTROLS

SECTION 2 – INSTALLATION

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

79.50 REF

35.00 REF

78.37 REF

TOP VIEW

LIFTING POINTLIFTING POINT

LIFTING POINTS LIFTING POINTS

SHIPPING TIMBERS

LD21637

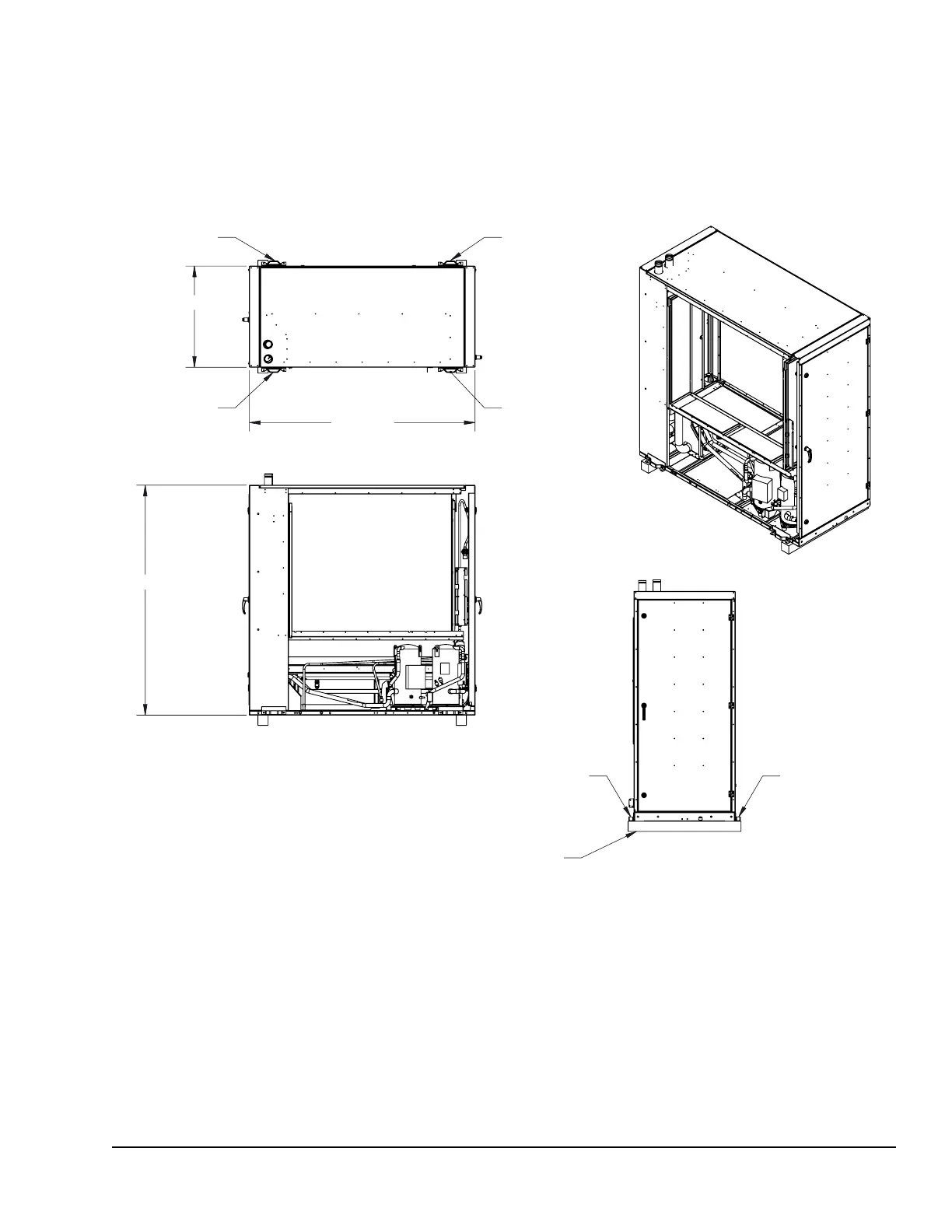

FIGURE 16 - LIFTING RECOMMENDATIONS, COIL SECTION ONLY (LSW_025–040)
