JOHNSON CONTROLS

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

SECTION 2 – INSTALLATION

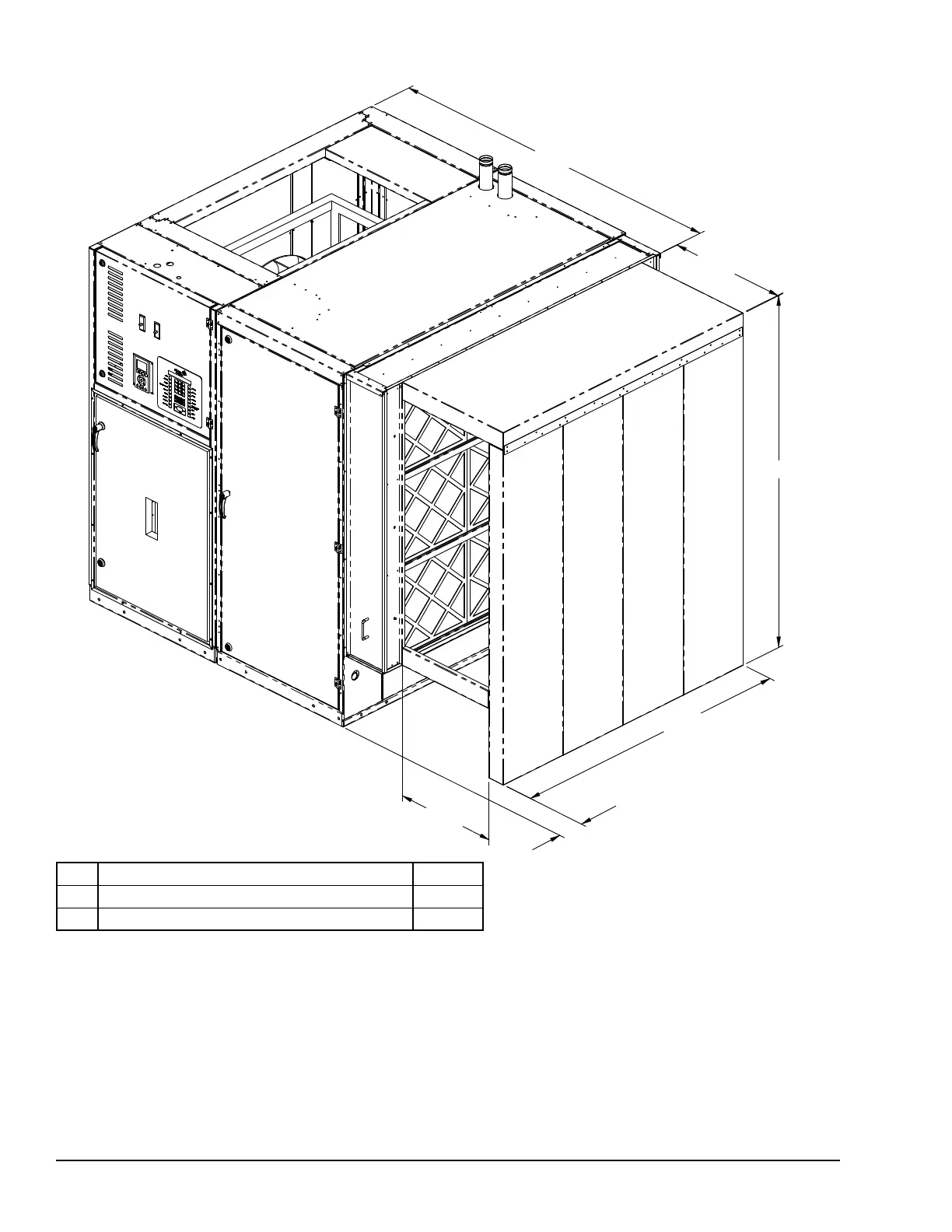

FIGURE 49 - UNIT DIMENSIONS SOUND ATTENUATING PLENUM OPTION (LSWU/F 025–040)

075-83768-906 REV-

23.94

79.50

27.94

66.09

“A”

5.95

OPTIONAL SOUND ATTENUATING

(INLET) PLENUM OPTION

NO. FILTER OPTIONS "A"

1 4 inch lter 102.06

2 4 inch Pre-Filter + 4 inch High Efciency Filter 106.31

NOTES:

1. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change

without notice.

2. Sound-attenuating plenum option can be combined with any lter section option.

3. Sound-attenuating plenum ships separately from base unit segment(s).

4. Option is not available with ducted connections.

5. With this option the top row of lters can only be removed from the end of the lter rack.

6. All dimensions in inches.
