JOHNSON CONTROLS
18
FORM 145.05-NOM7
ISSUE DATE: 10/31/2019
SECTION 2 – INSTALLATION

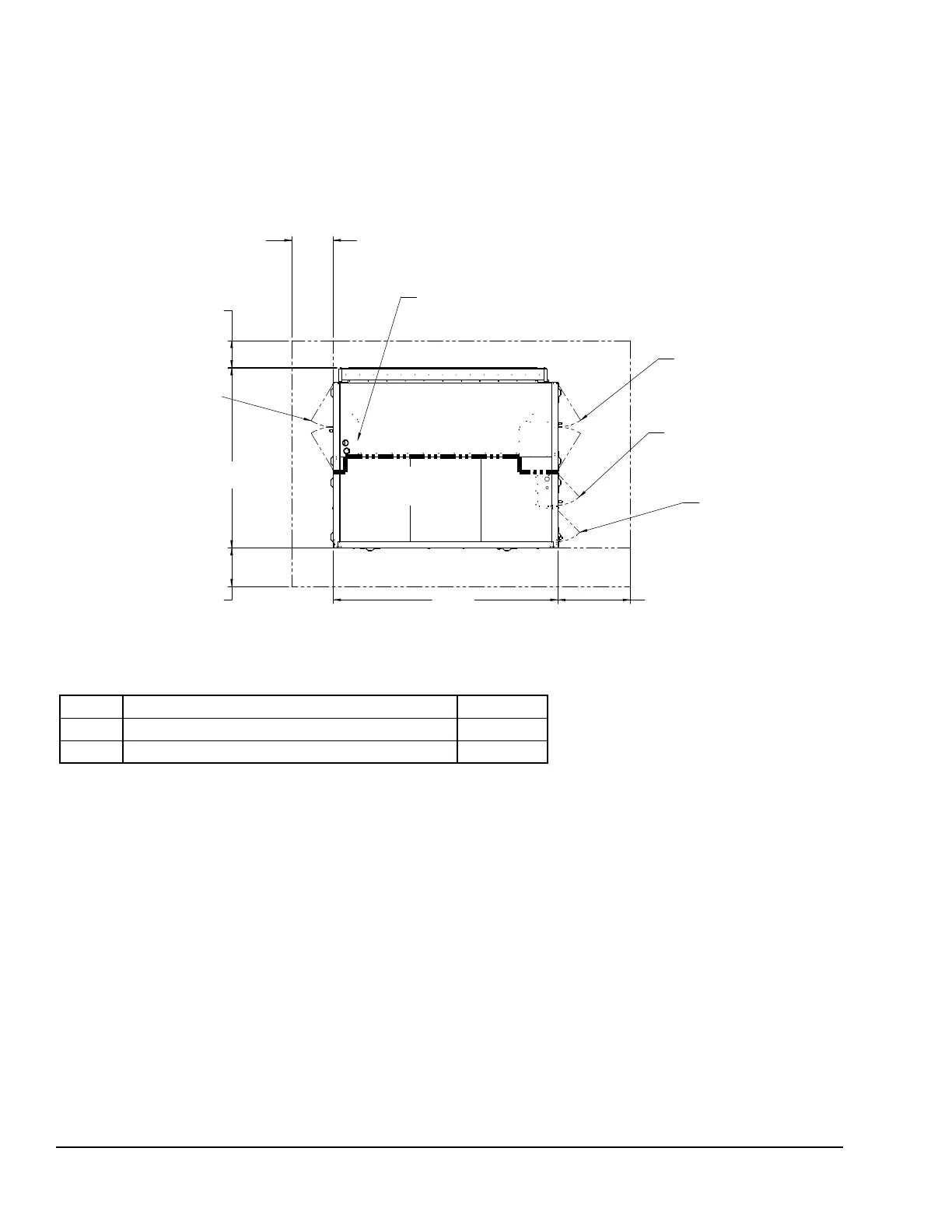

FIGURE 8 - RECOMMENDED SERVICE AND MAINTENANCE CLEARANCE, FRONT DISCHARGE
(LSW_070–105)
18 inch
Clearance
FRONT
COIL SECTION
FILTER SECTION
REAR
LEFT
RIGHT
130.00
inch
24 inch clearance required on
standard units, 3 inch clear-
ance required on units with low
clearance option.
24 inch clearance re-
quired on standard units,
3 inch clearance required
on units with low clear-
ance option.
Removable inner panel is pro-
vided for access to water valves
when no left side clearance is
required.
Removable door with
hinges. One door handle
and tool operated latch.
Entry door standard
72 inch x 18 inch
nominal with one door
handle and tool oper-
ated latch.
Electrical panel door.
Non removable with
hinges. One door handle
and tool operated latch.
Optional when clearance
is available. Removable
doors with hinges. One
door handle and one
tool-operated latch.
42 inch
Clearance
“A”
NO. FILTER OPTIONS “A”
1 4 inch lter 102.06
2 4 inch pre-lter + 4 inch high efciency lter 106.31
075-83744-913 REV -
FAN
SECTION
NOTE:
1. All dimensions are in inches.
