JOHNSON CONTROLS

SECTION 2 – INSTALLATION

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

LD14325

.88

.250

.1.38

34.80

52.79

44.00

130.00

102.00

52.88

44.00

LEFT

RIGHT

FRONT VIEW

39.80

42.30

6.25

43.08

REAR

TO FAN SECTION

52.00

FRONT VIEW

DRAIN CONNECTION

RIGHT

3.78

2.95

11.24

LEFT

FAN SECTION COIL SECTION

STD DIA 1.25 NOM PVC SOCKET

(TO CONNECT METAL

PIPE, PLASTIC

WELD ONE UNIVERSAL

PN 478-012

SPIGOT FEMALE ADAPTER)

ELECTRICAL PENETRATIONS

TO COIL SECTION

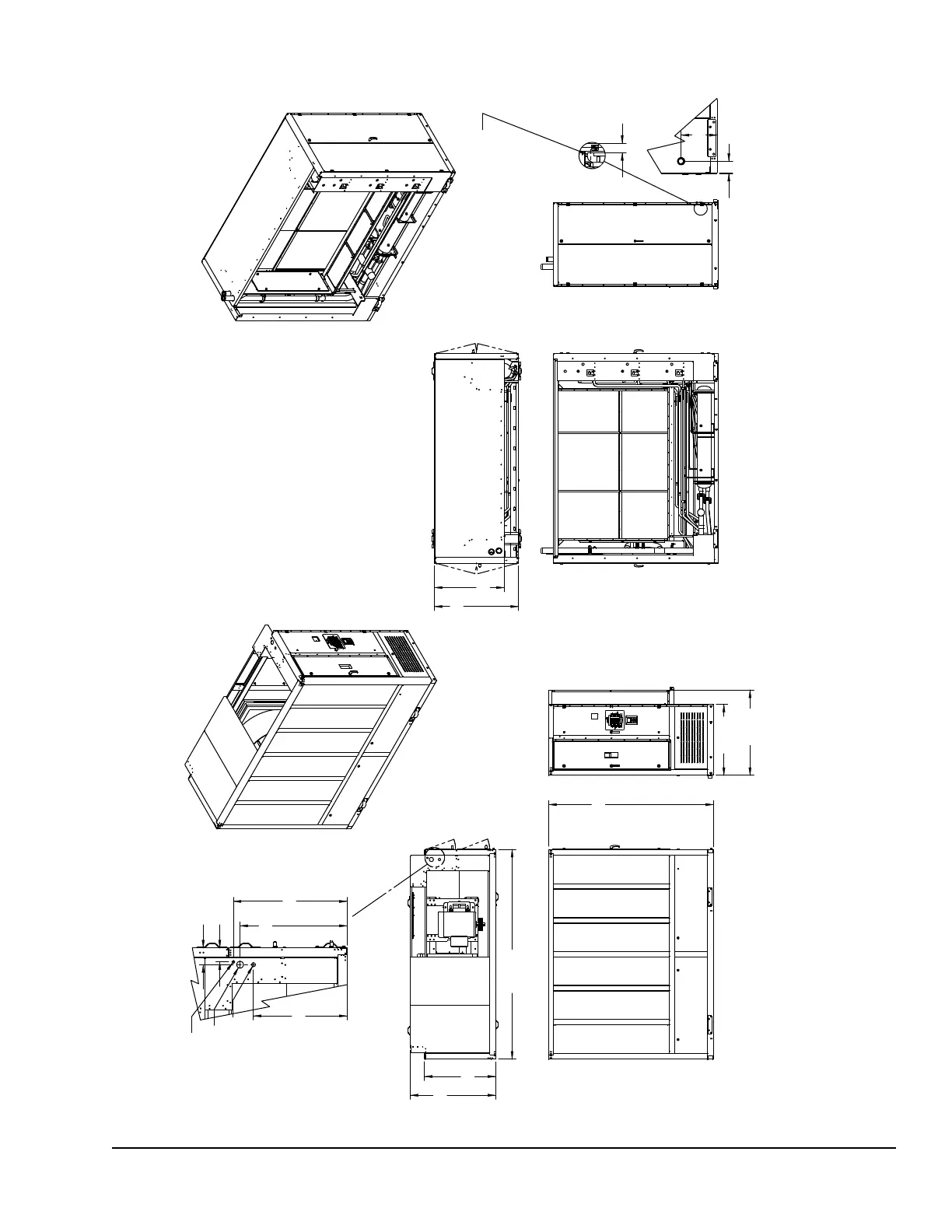

FIGURE 32 - UNIT DIMENSIONS, TOP DISCHARGE, SEGMENTED (LSWU 070–105)

NOTES:

1. Filter section is not shown and will be shipped separately

2. All dimensions are in English

3. Due to the dedication of continuous product improvement and enhancements, the information/dimensions

provided are subject to change without notice.
