JOHNSON CONTROLS

SECTION 2 – INSTALLATION

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

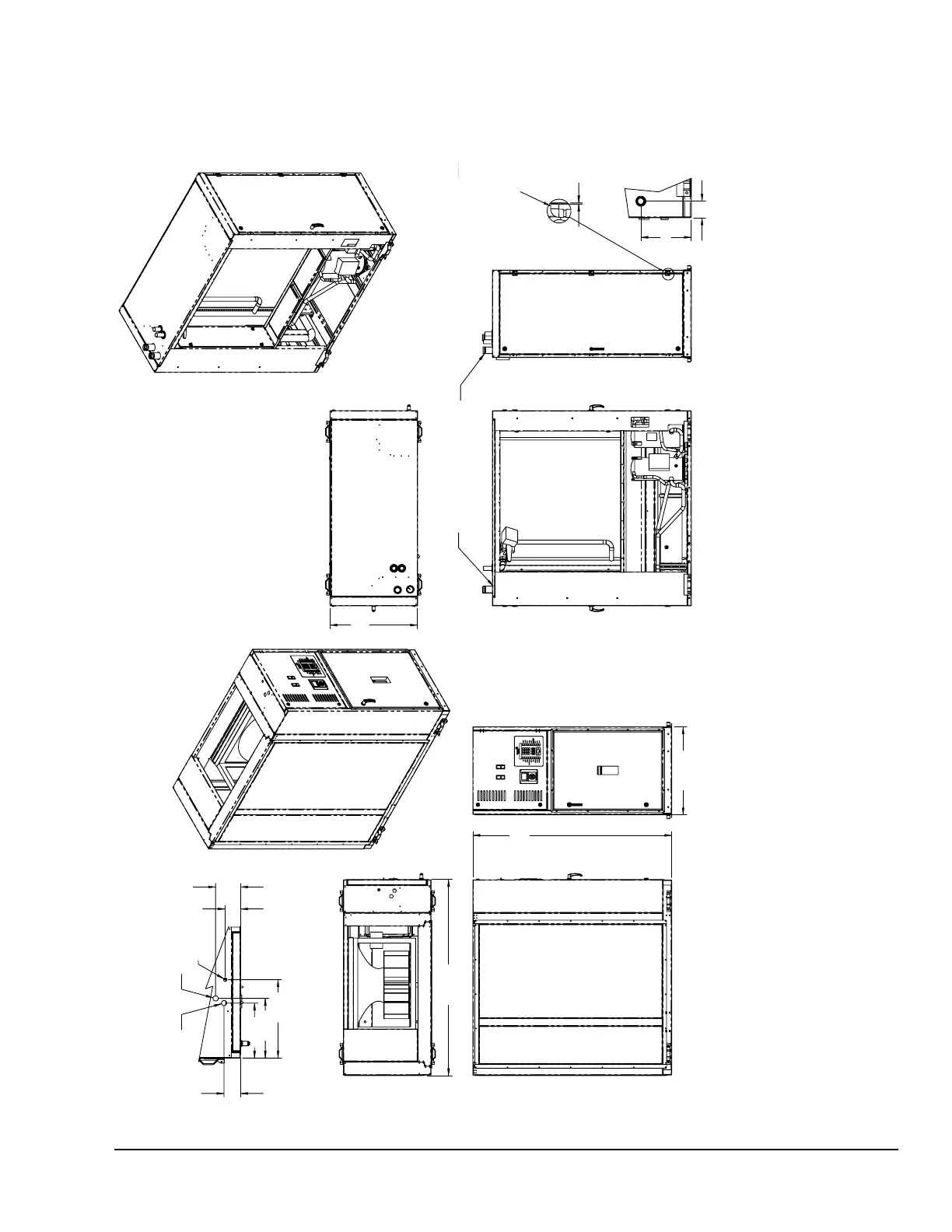

FIGURE 30 - UNIT DIMENSIONS, TOP DISCHARGE, SEGMENTED (LSWU_025–040)

4.43

14.63

15.88

20.88

4.23

9.89

4.12

6.68

Ø 1.38

Ø 0.88

TO COIL SECTION

TO FAN SECTION

Connection tube stubs will

be detached & shipped

inside unit with couplings.

REAR

LEFT

FRONT VIEW

FAN SECTION

COIL SECTION

RIGHT

Std. dia. 1.00 nom. PVC socket

(to connect metal pipe, plastic

weld one universal P/N 478-010

spigot female adapter).

35.00

35.25

78.37

ELECTRICAL

PENETRATIONS

79.50

RIGHT

DRAIN CONNECTION

.34

075-83768-902 REV-

NOTES:

1. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change without notice.

2. Filter Section is not shown and ships separately.

3. All dimensions are in inches.
