JOHNSON CONTROLS

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

SECTION 2 – INSTALLATION

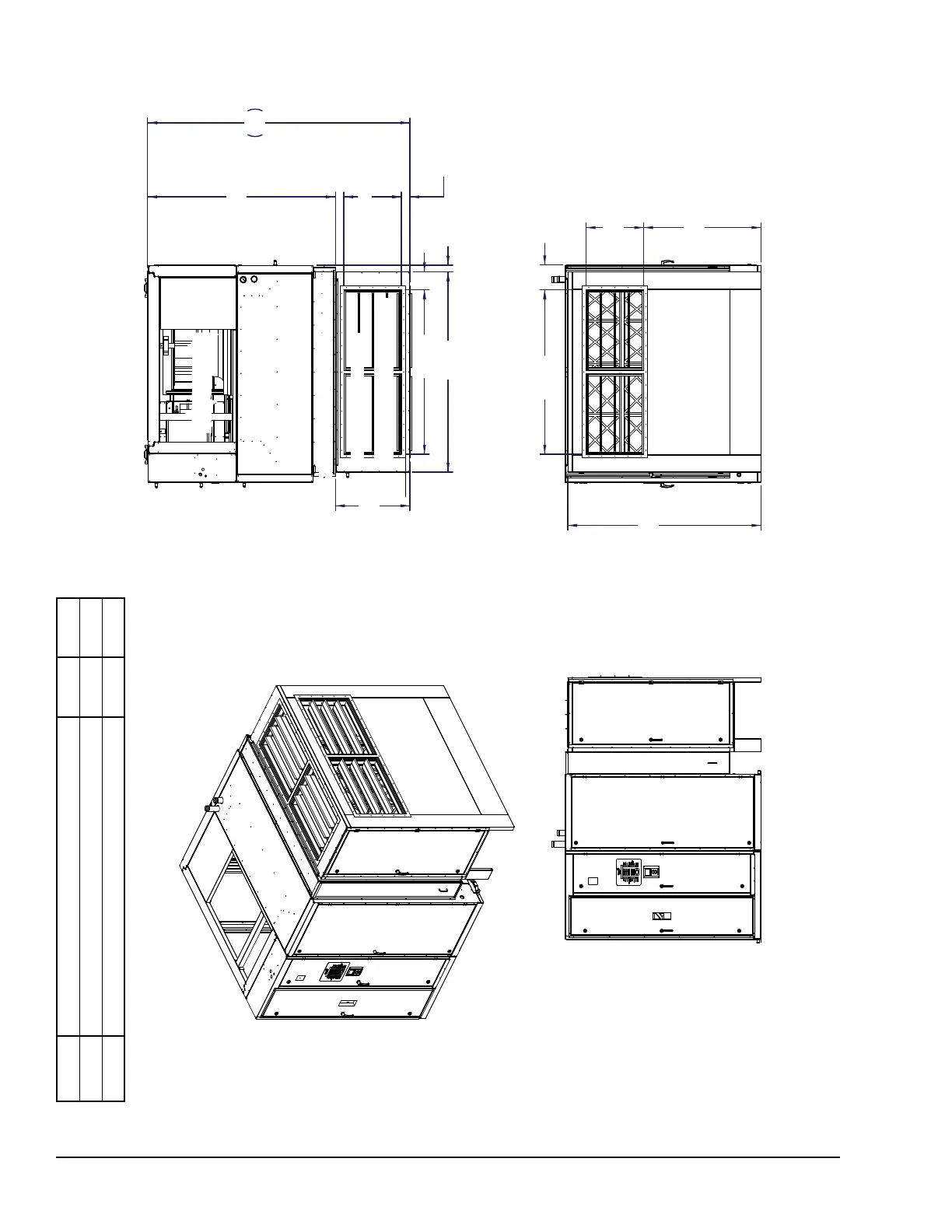

FIGURE 53 - UNIT DIMENSIONS AIRSIDE ECONOMIZER OPTION (LSW_050–060)

075-83756-906 REV A

NO. FILTER OPTIONS “A” “B”

1 4 inch lter 82.00 116.22

2 4 inch prelter + 4 inch high efciency lter 86.25 120.47

COIL SECTION

FAN SECTION

3.86*

FILTER SECTION

AIRSIDE ECONOMIZER

75.47*

55.47*

11.49*

26.47*

53.89*

88.80

26.47*

34.22

“A”

“B”

2.9792.06

8.26*

NOTES:

* Minimum interior duct dimensions.

1. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change without notice.

2. Airside Economizer is shipped separately.

3. All dimensions are in inches.
