JOHNSON CONTROLS

SECTION 2 – INSTALLATION

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

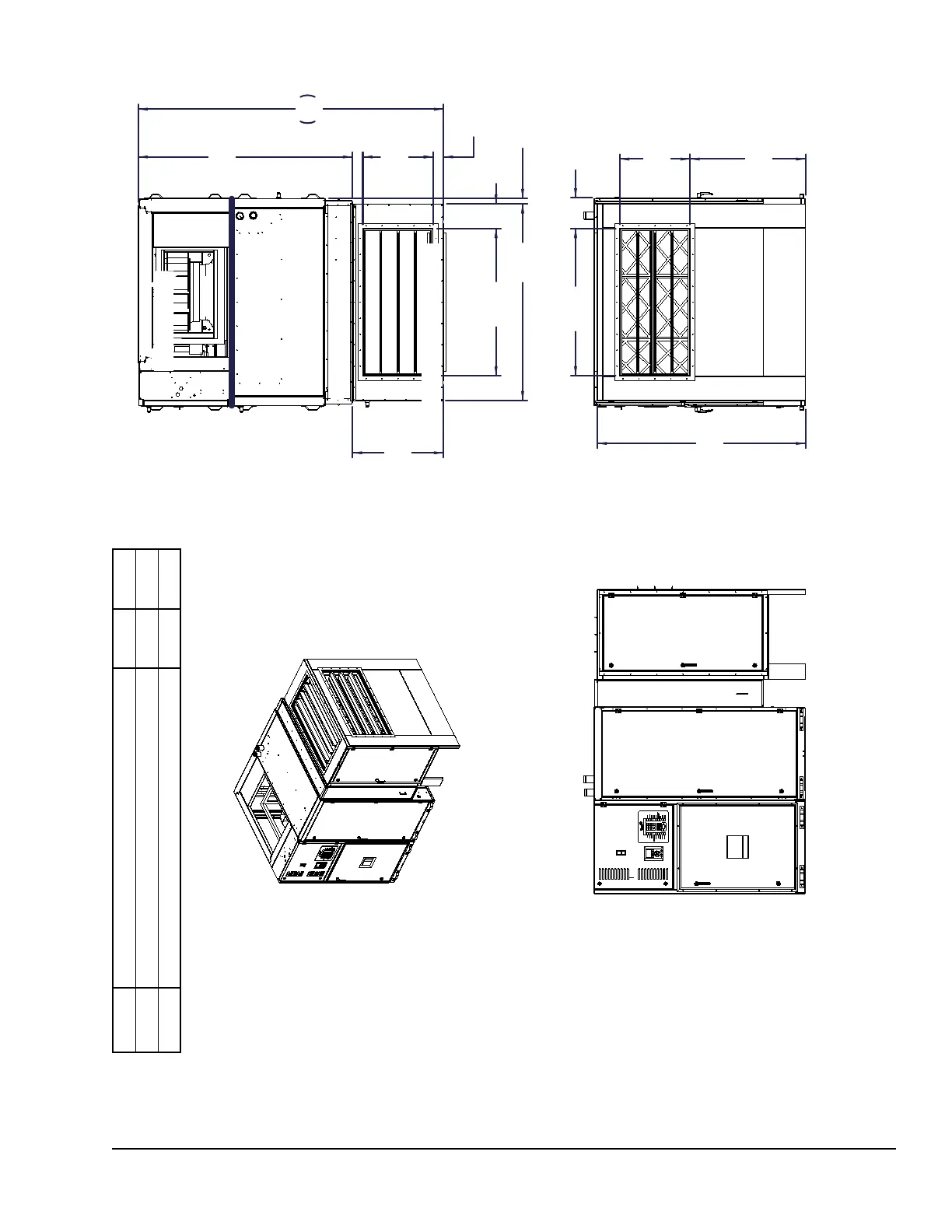

FIGURE 52 - UNIT DIMENSIONS AIRSIDE ECONOMIZER OPTION (LSW_025–040)

075-83768-908 REV A

NOTES:

1. * Minimum interior duct dimensions

2. 1. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change without notice.

3. 2. Airside Economizer is shipped separately..

4. 3. All dimensions are in inches.

COIL SECTION

FAN SECTION

3.86*

FILTER SECTION

AIRSIDE ECONOMIZER

55.47*

11.51*

26.47*

43.41*

78.32*

26.47*

34.22

“A”

“B”

2.00

74.06

9.26*

NO. FILTER OPTIONS “A” “B”

1 4 inch lter 76.43 110.65

2 4 inch prelter + 4 inch high efciency lter 80.68 114.90
