Johnson Controls LSWU - FIGURE 35 - Unit Dimensions, Front Discharge, Segmented (LSW

To Next Page

To Previous Page

JOHNSON CONTROLS

FORM 145.05-NOM7

ISSUE DATE: 10/31/2019

SECTION 2 – INSTALLATION

79.50

FRONT VIEW

LEFT

RIGHT

78.37

1.63

TYP

LIFTING LUG

8.71 *

TYP

8.59 *

TYP

TO COIL SECTION

35.25

LEFT

RIGHT

FRONT VIEW

35.00

8.47 *

TYP

8.47 *

TYP

REAR

TO FAN SECTION

4.23

9.89

DRAIN CONNECTION

.34

STD DIA 1.00 NOM PVC SOCKET

(TO CONNECT METAL PIPE, PLASTIC

WELD ONE UNIVERSAL PN 478-010

SPIGOT FEMALE ADAPTER)

CONNECTION TUBE STUBS

WILL BE DETACHED & SHIPPED

INSIDE UNIT WITH COUPLINGS

1.381.38

.88

14.63

15.88

20.88

4.43 4.12

6.68

ELECTRICAL PENETRATIONS

FAN SECTION

COIL SECTION

* LIFTING LUG DIMENSION

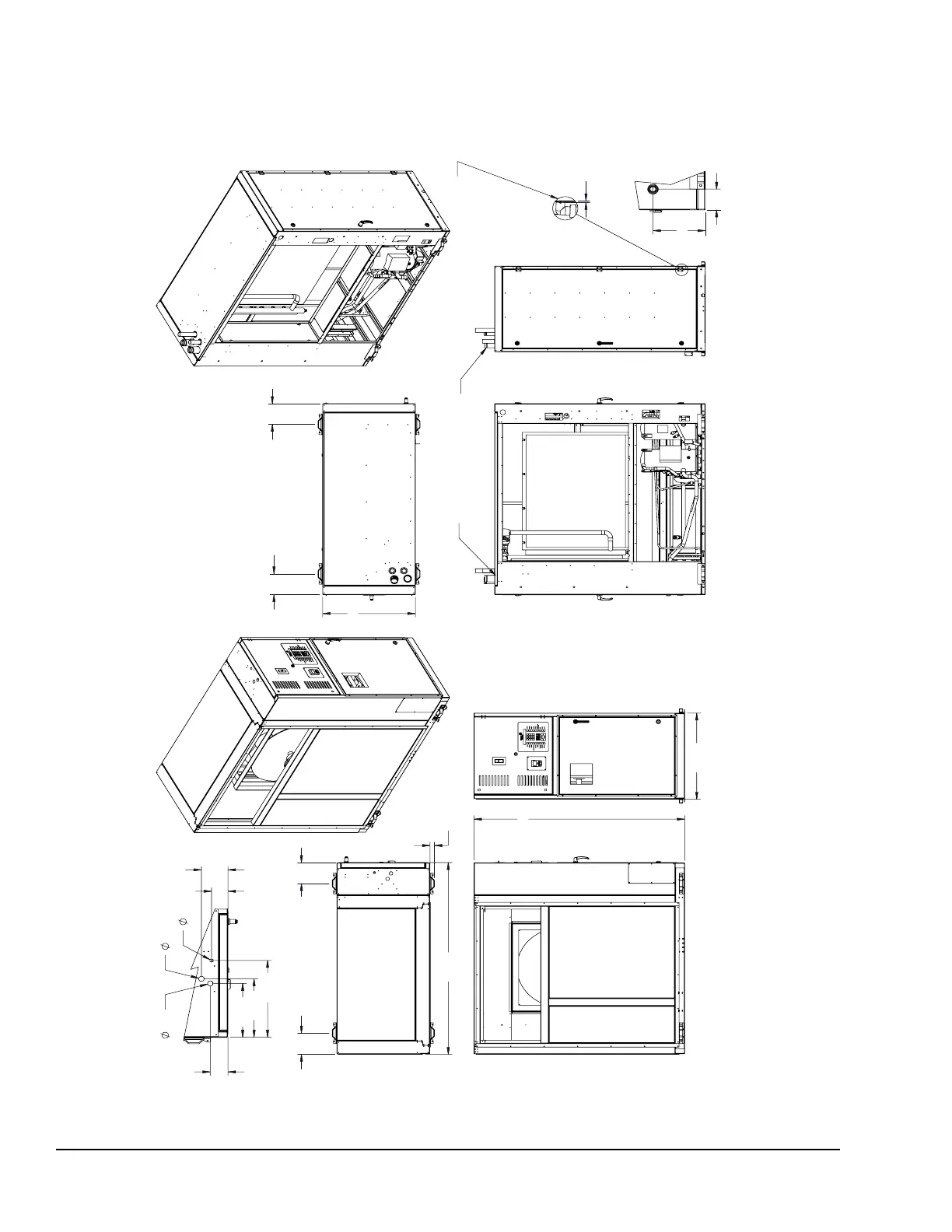

FIGURE 35 - UNIT DIMENSIONS, FRONT DISCHARGE, SEGMENTED (LSW_025–040)

NOTES:

1. Filter section is not shown and will be shipped separately

2. All dimensions are in English

3. Due to the dedication of continuous product improvement and enhancements, the information/dimensions provided are subject to change without notice.
