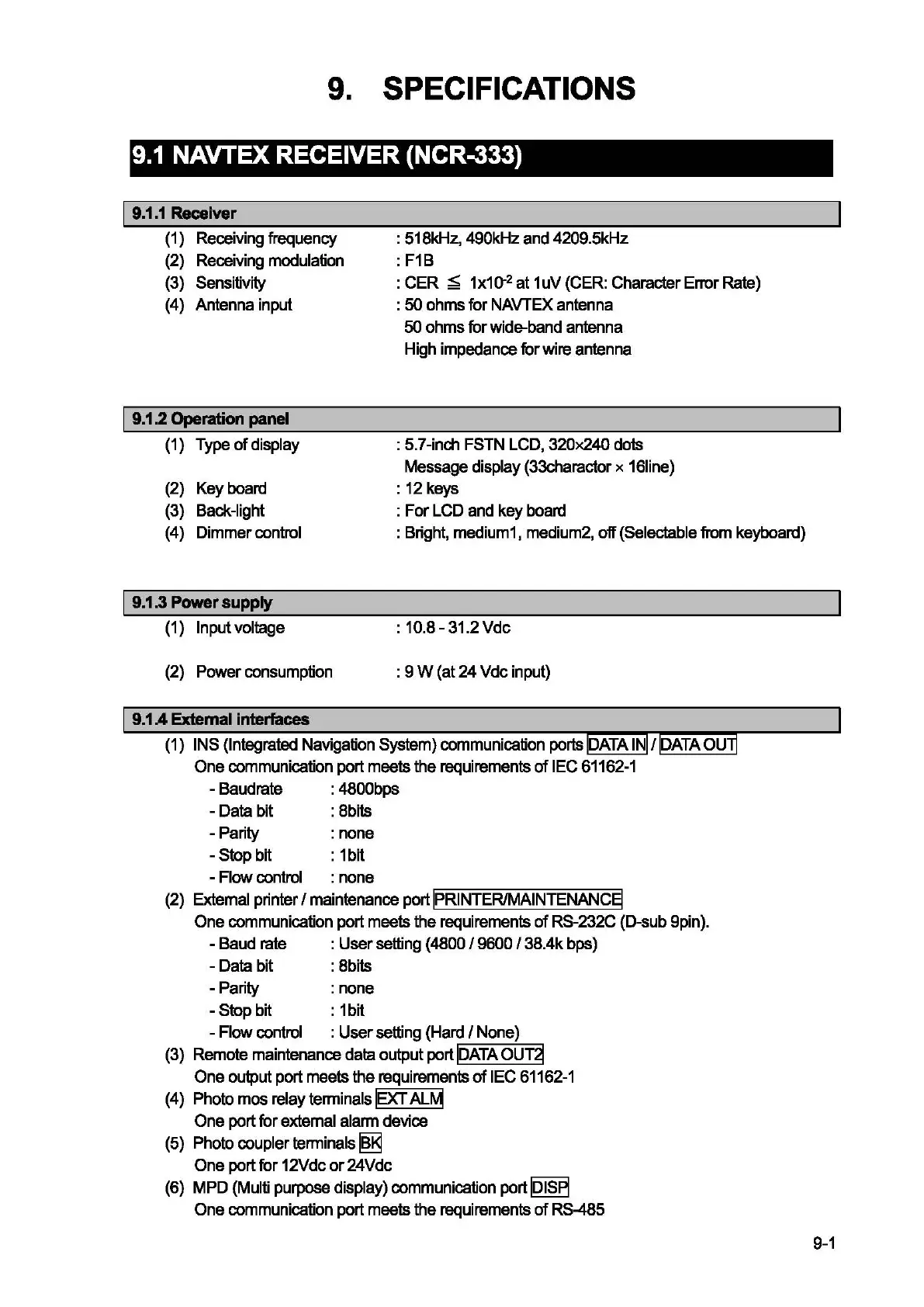

9. SPECIFICATIONS
9.1 NAVTEX RECEIVER (NCR-333)
I 9.1.1 Receiver
(1) Receiving frequency
(2) Receiving modulation
(3) Sensitivity
(4) Antenna input
1 9.1.2 Operation panel
(1) Type of display
(2) Key board
(3) Back-light
(4) Dimmercontrol
I 9.1.3 Power supply
(1) Input voltage
(2) Power consumption
9.1 A Extemallnterraces
: 518kHz, 490kHz and 4209.5kHz
:
F1B
: CER ::S: 1 x1 o-
2
at 1 uV (CER: Character Error Rate)
: 50 ohms for NAVTEX antenna
50 ohms for wide-band antenna
High impedance for wire antenna
: 5.7-inch FSTN LCD, 320x240 dots
Message display (33charactor x 161ine)
: 12 keys
: For LCD and key board
: Bright, medium1, medium2, off (Selectable from keyboard)
: 1 0.8 - 31.2 Vdc
: 9
W (at 24 Vdc input)
(1) INS (Integrated Navigation System) communication ports DATA IN I DATA OU
One communication port meets the requirements of IEC 61162-1
- Baudrate : 4800bps
- Data bit : 8bits
-
Parity : none
-
Stop bit : 1 bit
-
Flow control : none
(2) External printer I maintenance port IPRINTERIMAINTENANCEj
One communication port meets the requirements of RS-232C (D-sub 9pin).
- Baud rate : User setting (4800 19600 138.4k bps)
- Data
bit : 8bits
-
Parity : none
-
Stop bit : 1 bit
-
Flow control : User setting (Hard I None)
(3) Remote maintenance data output port IDATA OUT~
One output port meets the requirements of IEC 61162-1
(4) Photo mas relay terminals IEXT ALM
One port for external alarm device
(5) Photo coupler terminals~
One port for 12Vdc or 24Vdc
(6) MPD (Multi purpose display) communication port IDISR
One communication port meets the requirements of RS-485
