– 41 –
The lamps will be
on alternately.
1 2 TPo _
Po T _ni _
2L 4
3i 1 rEv T
3i 1
2L 4
Po T i n
nE d
1 2 TPo _
List 1

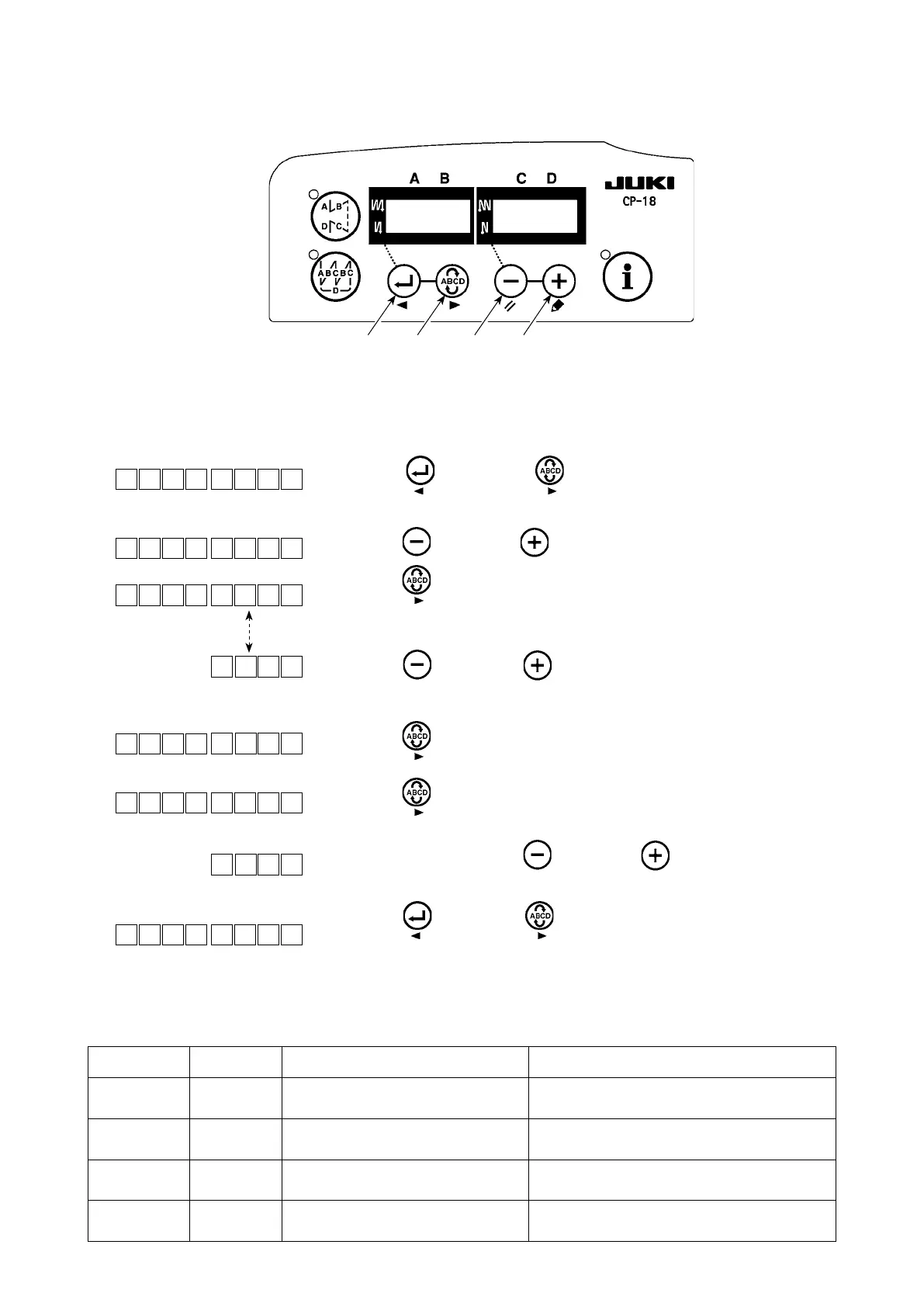

1) Enter the function setting mode referring to
"III-6. Setting of func-
tions of SC-922, 1)" in the Instruction Manual for the SC-922
.
2) Press switch
or switch
to call out function setting
No.12 (option input/output function selection).
3) Press switch
or switch
and select the item for “in”.
4) Press switch
and select display No.i31.
5) Press switch
or switch
to select the knee switch func-
tion. Refer to list 1 for the details of the functions.
6) Press switch
and x the function.
7) Press switch
and end the option input.
8) Select “End” item using switch
or switch
.
9) Press switch
or switch
and return to the function set-
ting mode.
Function code Abbreviation Functional item Remarks
5 FL Presser lifter switch function Presser output will be ON while the switch is
being pressed.
31 ALFL Presser lifter alternate switch function Presser output will be ON or OFF each time the
switch is pressed.
24 vErT Alternate vertical movement amount
conversion alternate switch function
Alternate vertical movement amount output will
be ON or OFF each time the switch is pressed.
25 vSW Alternate vertical movement amount
conversion switch function
Alternate vertical movement amount output will
be ON while the switch is being pressed.
(3) Function setting of the knee switch
・
CP-18
To Next Page
