4 Electrical connection
18
1
2 4 3
5
6 8 7
(not possible!) (not possible!)
Option 1 Option 2
Analog output
Relay (changeover)
2 relays (n.o. make)
+
-
U
x
Ö P S
Out5 Out8
Solid-state relay
Analog output 5 (Out5)
Binary output 5 (Out5)
Binary output 5+8 (Out5+Out8)
Binary output 5 (Out5)
/ I
x
+
-
U
x
Analog output 6 (Out6)
Binary output 6 (Out6)
/ I
x
PROFIBUS RS422
VP (+5 V) RxD/TxD-P (B) RxD/TxD-N (A) DGND
RxD + RxD - TxD + TxD -
RS485
RxD/TxD + RxD/TxD -
VP (+5 V) RxD/TxD-P (B) RxD/TxD-N (A) DGND
RxD + RxD - TxD + TxD -
RxD/TxD + RxD/TxD -
Type 703041 continued

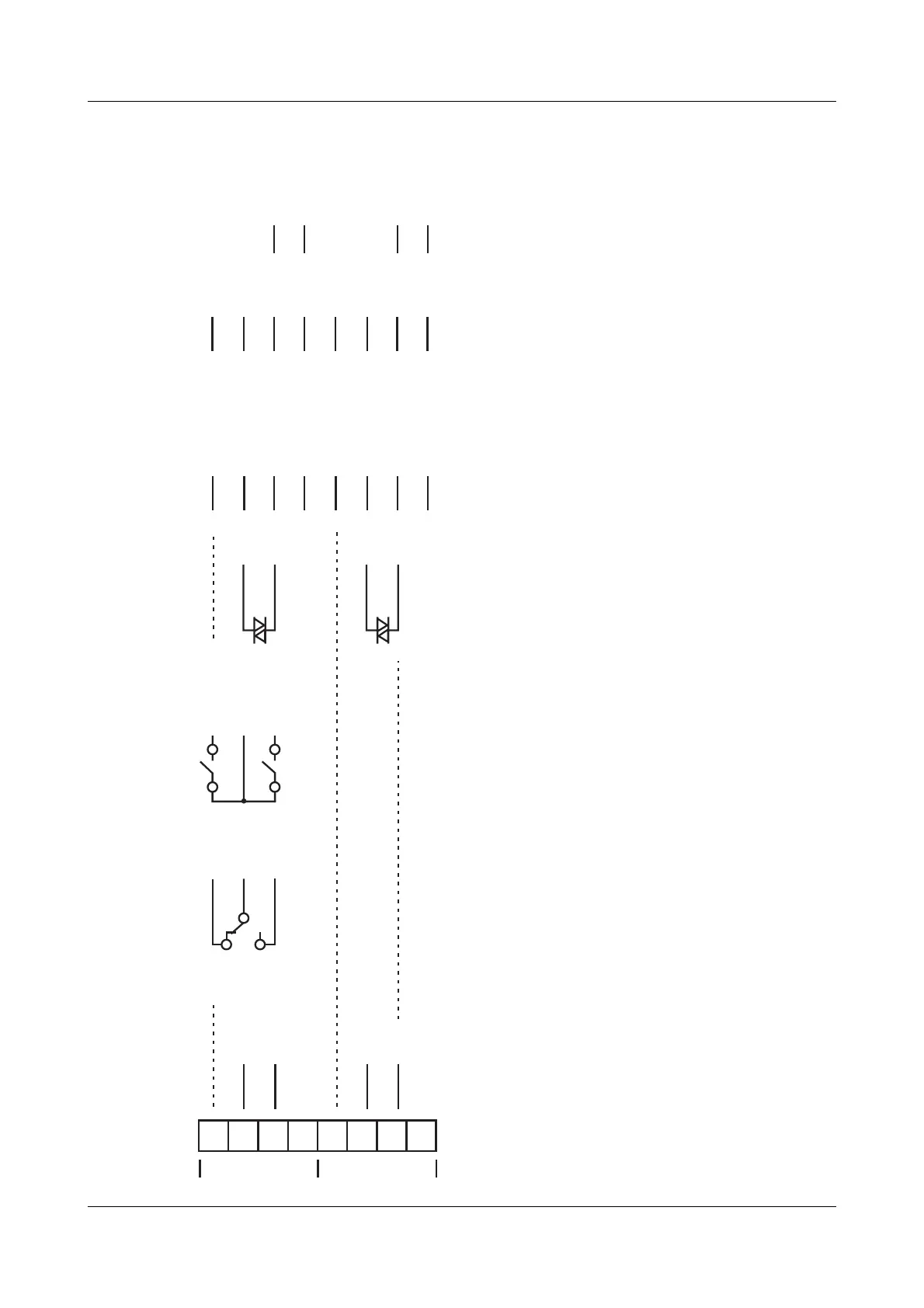

Outputs and interfaces - terminal strip 1 (option board)
v Chapter 8.5 “Outputs “OutP””
H
Note numbering of outputs.
