JUMO 703041 - Page 19

19
4 Electrical connection
1
2 4 3
6 7 8
E S A
-
+
-
+
I
x
I
x
- /
~ ~
Resistance thermometer
Resistance thermometer
Resistance thermometer
Resistance transmitter
Thermo- couple
Current
bin1
bin2 GND
As an alternative to binary outputs 3 and 4 (configurable)!
Analog 1
Logic



U
x
-
+
U
x
-
+
Voltage 0(2)—10V
Voltage 0—1V
Binary input 1 Binary input 2
Type 703041 continued

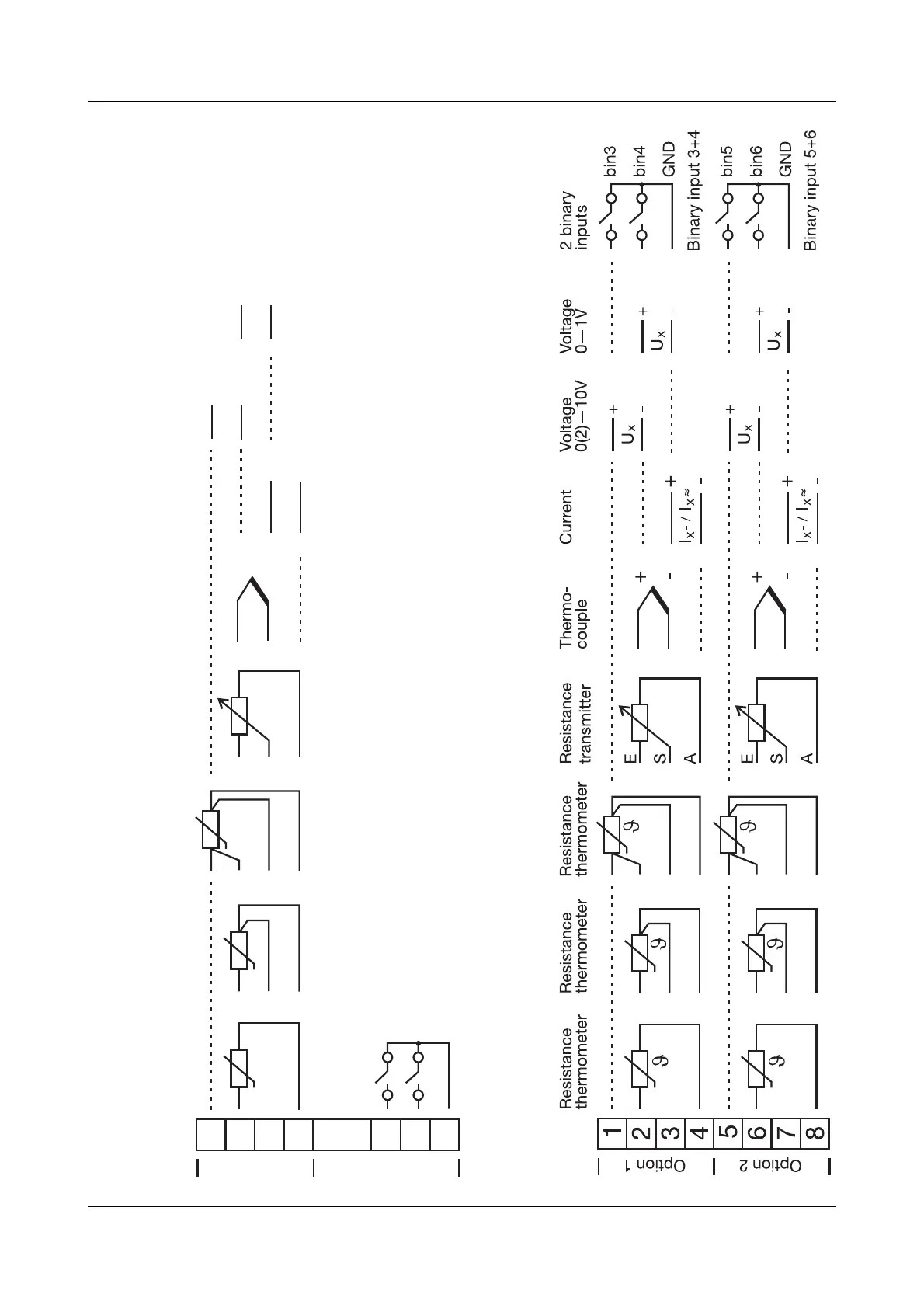

Analog input 1 and binary inputs 1+2 - terminal strip 2
Analog input 2 and binary inputs 3...6 - terminal strip 1 (option boards)
