Juniper ACX1000 Configuration Guide

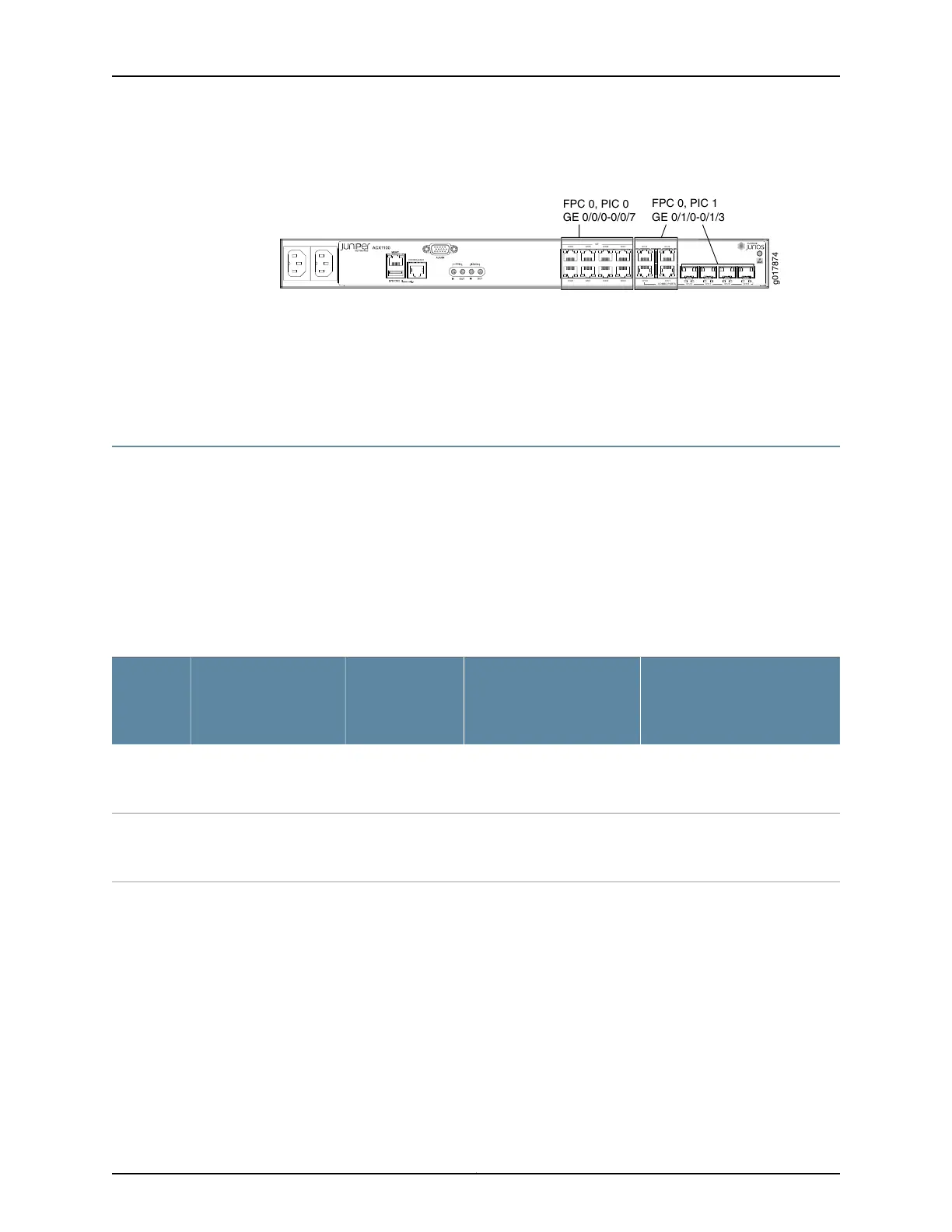

Figure 7: ACX1100 Interface Port Mapping
g017874
0/0/0
0/0/1 0/0/2 0/0/3
0/0/4
0/0/5 0/0/6 0/0/7
GE
0/1/0
0/1/1
0/1/2 0/1/3
0/1/0
0/1/1 0/1/2 0/1/3
CONSOLE/AUX
COMBO PORTS
FPC 0, PIC 0
GE 0/0/0-0/0/7
FPC 0, PIC 1
GE 0/1/0-0/1/3
Related
Documentation
ACX1000 and ACX1100 Universal Access Router Overview•
ACX2000 and ACX2100 Routers Hardware and CLI Terminology Mapping
•
ACX2000 Hardware and CLI Terminology Mapping on page 33
•
ACX2100 Hardware and CLI Terminology Mapping on page 35
ACX2000 Hardware and CLI Terminology Mapping
Table 9 on page 33 describes the hardware terms used in ACX2000 router documentation
and the corresponding terms used in the Junos OS command line interface (CLI).
Figure 8 on page 34 shows the port locations of the interfaces.
Table 9: CLI Equivalents of Terms Used in Documentation for ACX2000 Routers
Additional InformationItem in Documentation
Value (as
displayed in the
CLI)
Description (as
displayed in the CLI)
Hardware
Item (as
displayed
in the CLI)
Chassis Physical Specifications
for ACX2000 and ACX2100
Routers
Router chassis–ACX2000Chassis
Interface Naming Conventions
Used in the Junos OS Operational
Commands
The router does not have
actual FPCs. In this case, FPC
refers to the router itself.
Value of n is
always 0.
Abbreviated name of the
Flexible PIC
Concentrator (FPC)
FPC (n)
33Copyright © 2017, Juniper Networks, Inc.
Chapter 1: ACX Series Universal Access Router Overview
