4 Design and Function
4.1 Bodywork
Bodywork is understood to be the exterior of the machine mounted on the chassis.

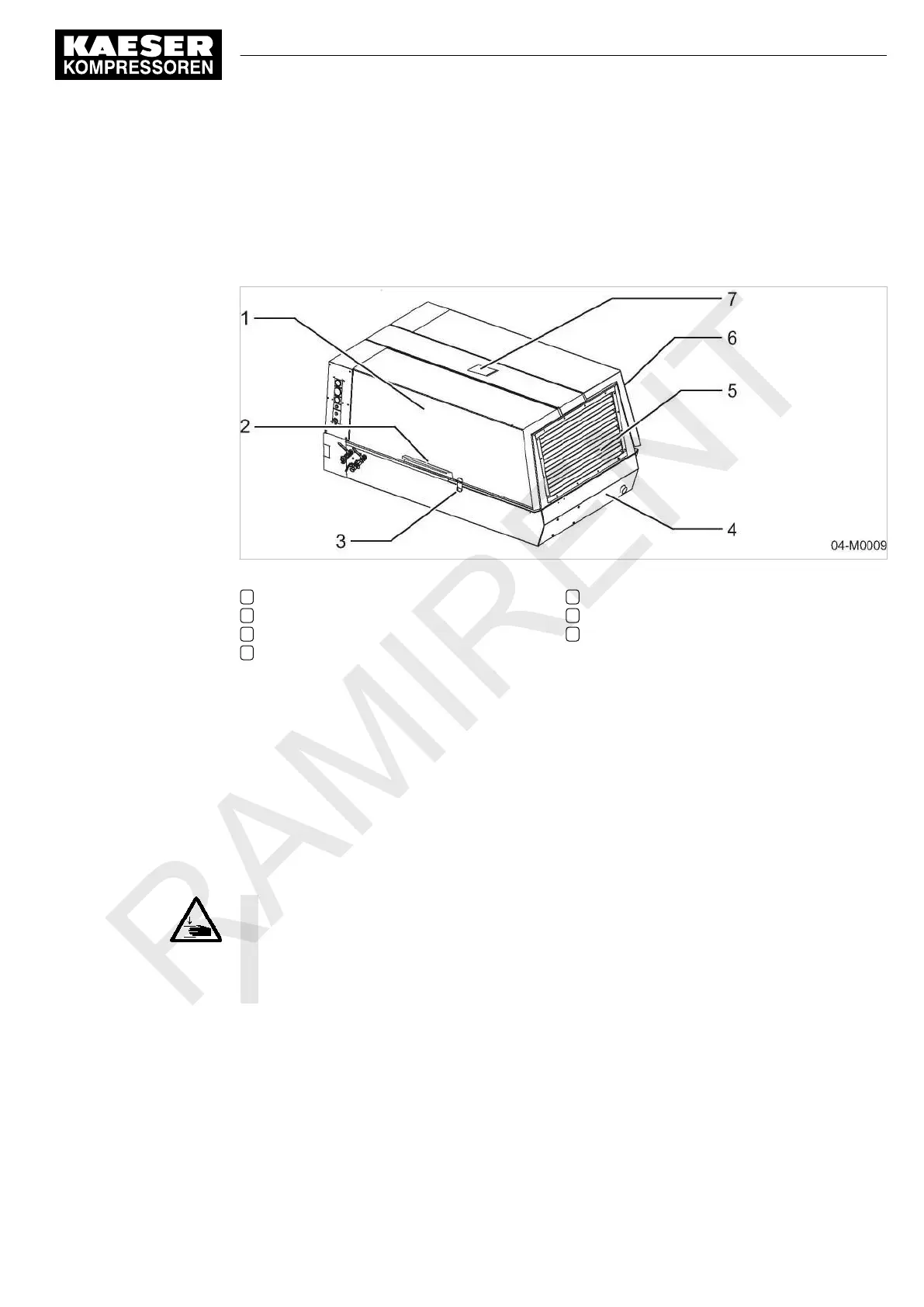

Fig. 2 Overview Bodywork
1 Right-hand wing door
2 Handle
3 Snap fastener
4 Lower body
5 Sound damping louver for cooler
6 Left-hand wing door
7 Cover for lifting eye
The bodywork has several functions when it is closed:
■ Weather protection
■ Sound insulation
■ Guarding against touching
■ Cooling air flow
The bodywork is not suitable for the following uses:
■ Walking on, standing or sitting on.
■ Use as resting place or storage of any kind of load.
CAUTION
Danger of pinching!
Severe injuries of the fingers if they are caught when closing doors and covers.
➤
Work carefully.
➤ If necessary, wear protective gloves.
Safe and reliable operation is only ensured when the bodywork is closed.
The wing doors are provided with handles for opening. Release the doors by the snap fasteners.
The doors are held open by gas springs.
