Operating the tool lubricator
Precondition The machine is shut down.
Tool lubricator filled with oil

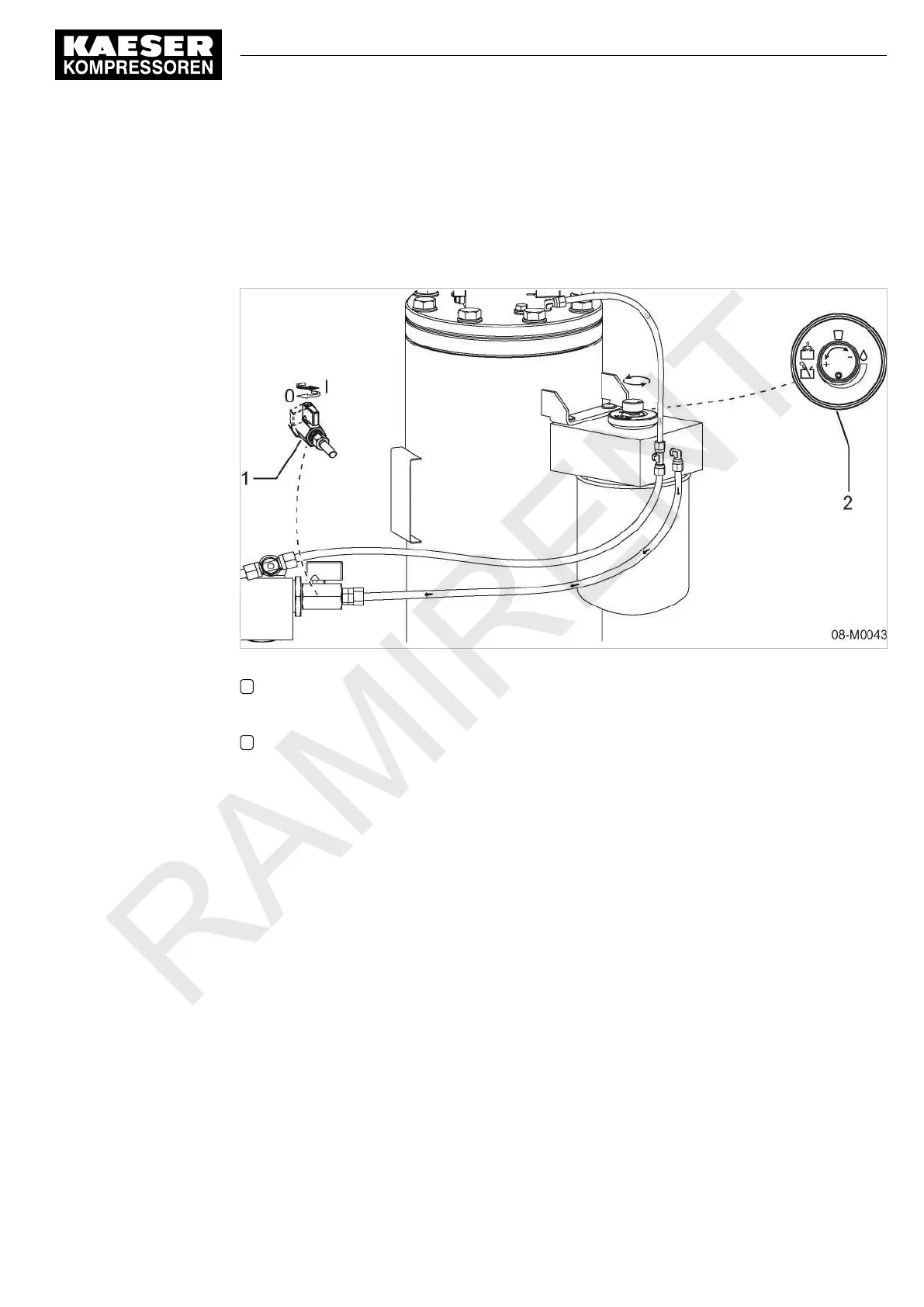

Fig. 31 Setting the tool lubricator
1 Shut-off valve
I – open
0 – closed
2 Metering knob
➤ Open the right-hand access door.
Adding lubricating oil
1. Open the shut-off valve.
2. Close the door.
Setting the oil flow
The amount of oil the compressed air should contain depends on the application and must be de‐
termined by the user. It depends on the nature of the air consumers and the supply hoses.
The metering valve controls the flow of oil into the air.
■ Turning clockwise: reduces the oil flow.
■ Turning counter-clockwise: increases the oil flow.
1. Set the required oil flow.
2. Close the door.
Further information Fill the tool lubricator with suitable oil (see chapter 10.7.1)
