Instructions for use ELECTROmatic TM and TMM/TMC
4 Installation | 4.6 Installation position 3: Mount on a holder or on the backside of a holder
40 / 90

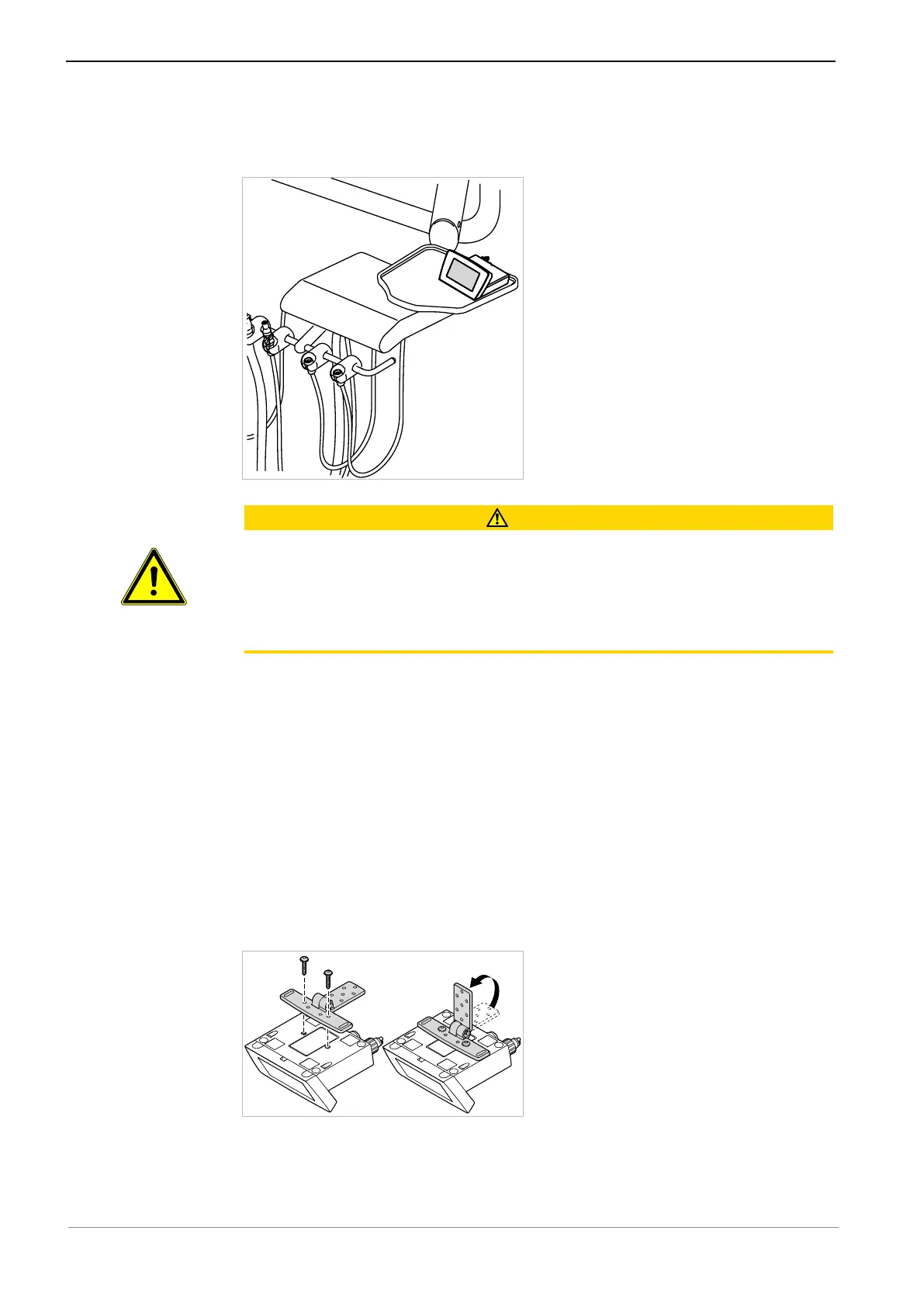

4.6 Installation position 3: Mount on a holder or on the
backside of a holder
On a holder
CAUTION
Damage to the dentist element.
Installations involving an intervention on the treatment unit might damage
components, which can interfere with the safe function and cause injury.
▶ Have installations involving an intervention on the treatment unit per-
formed by trained expert personnel only.
▶ Have the treatment unit subjected to a safety check after installation.
▶ Use the control unit as a template for the screw positions on a holder or on
the backside of a holder. If possible, use existing screws or perforations as
screw positions.
Assembly variant a)
The following parts from the scope of delivery and the installation set are
needed:
▪ 1x Mounting bracket
▪ 2x Screws M4x12 ④ with self-locking nuts ①
▪ 2x Washers ②
▪ 2x Plastic screws
▶ Use 2 plastic screws to screw the mounting bracket to the control panel.
▶ Fold the mounting bracket and fasten it to the holder using 2 screws, 2
washers and 2 self-locking nuts.
