Instructions for use ELECTROmatic TM and TMM/TMC

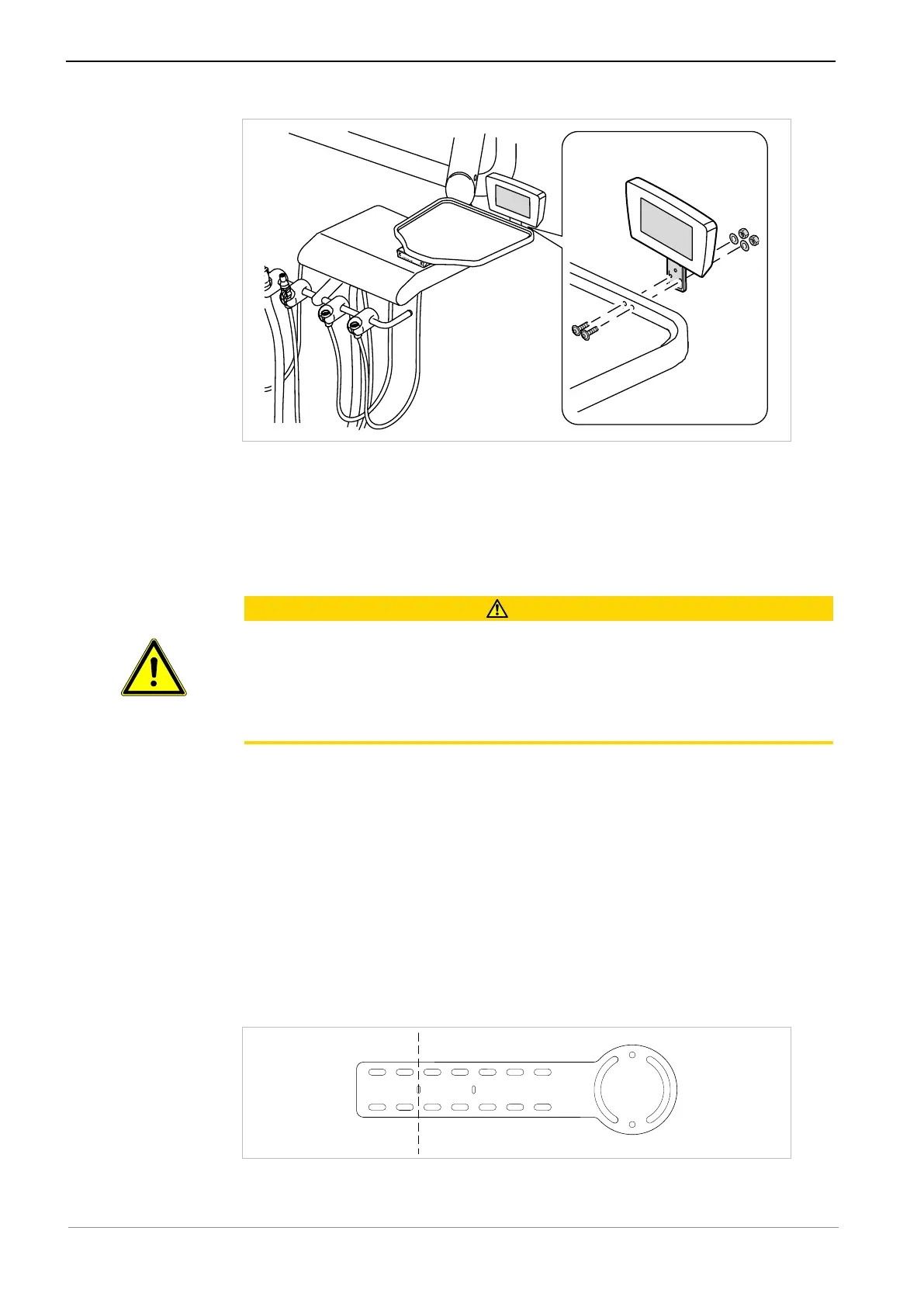

4 Installation | 4.7 Installation position 4: Mount control panel as remote control
▶ Mount the control unit.
See also:
2 4.4 Install below the dentist element, a holder or a cabinet, Page 36
4.7.3 Mount control panel on the side of a holder
CAUTION
Damage to the dentist element.
Installations involving an intervention on the treatment unit might damage
components, which can interfere with the safe function and cause injury.
▶ Have installations involving an intervention on the treatment unit per-
formed by trained expert personnel only.
▶ Have the treatment unit subjected to a safety check after installation.
Assembly variant a)
The following parts from the scope of delivery and the installation set are
needed:
▪ 1x Mounting plate
▪ 1x Mounting bracket
▪ 1x Cover panel
▪ 4x Screws M4x12 ④ with self-locking nuts ①
▪ 4x Washers ②
▪ 2x Plastic screws ⑥ for fastening to the mounting plate
▶ Shorten the mounting plate with a suitable tool, if needed.
▶ Select the position of the mounting plate. If possible, use existing screws or
perforations as screw positions.
45 / 90
