Instructions for use ELECTROmatic TM and TMM/TMC
4 Installation | 4.5 Installation position 2: Mount on the side of a holder
38 / 90

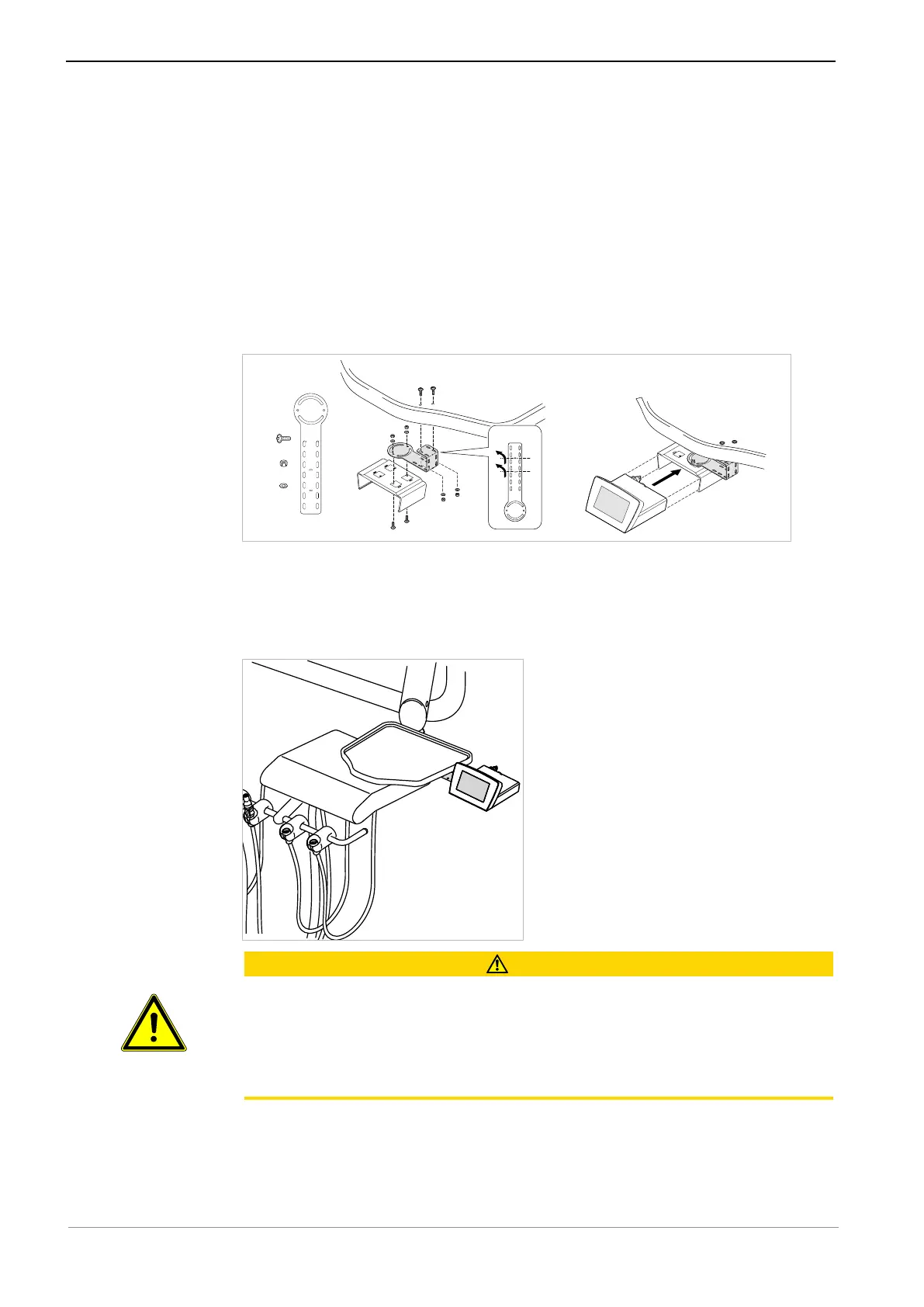

Assembly variant c)
The following parts from the scope of delivery and the installation set are
needed:
▪ 1x Insert holder
▪ 4x Screws M4x12 ④ with self-locking nuts ①
▪ 4x Washers ②
▪ 1x Mounting plate
▶ To increase the distance between the holder and the insert holder, chamfer
the mounting plate twice (U-shape) and use it for a spacer.
▶ Make sure that the insert holder is firmly seated.
▶ Slide the control unit of the ELECTROmatic into the insert holder.
4.5 Installation position 2: Mount on the side of a holder
CAUTION
Damage to the dentist element.
Installations involving an intervention on the treatment unit might damage
components, which can interfere with the safe function and cause injury.
▶ Have installations involving an intervention on the treatment unit per-
formed by trained expert personnel only.
▶ Have the treatment unit subjected to a safety check after installation.
The following parts from the scope of delivery and the installation set are
needed:
▪ 1x Mounting plate
▪ 4x Screws M4x12 ④ with self-locking nuts ①
