3.5 Damage due to overheating
• The operating temperature must range between 0° and 50°C for E1-E4 and L1-L4
devices.
• The operating temperature must range between -20° and +70°C for E1-ET, E2-ET
devices.
• An inclined installation reduces the thermal convection of the device and the maxi-
mum permissible ambient temperature for operation. Please contact KEB for details.
• Thedevicemayotherwisebedamagedanditscerticationsandwarrantywillbe
void.
3.6 Preparing the mounting
In order to ensure a proper mounting of the system, the material of the mounting frame
mustbesu󰀩cientlystable.
3.7 Mounting the device
3.7.1 Installation procedure wall mounting
• Install wall mounting plate as shown.

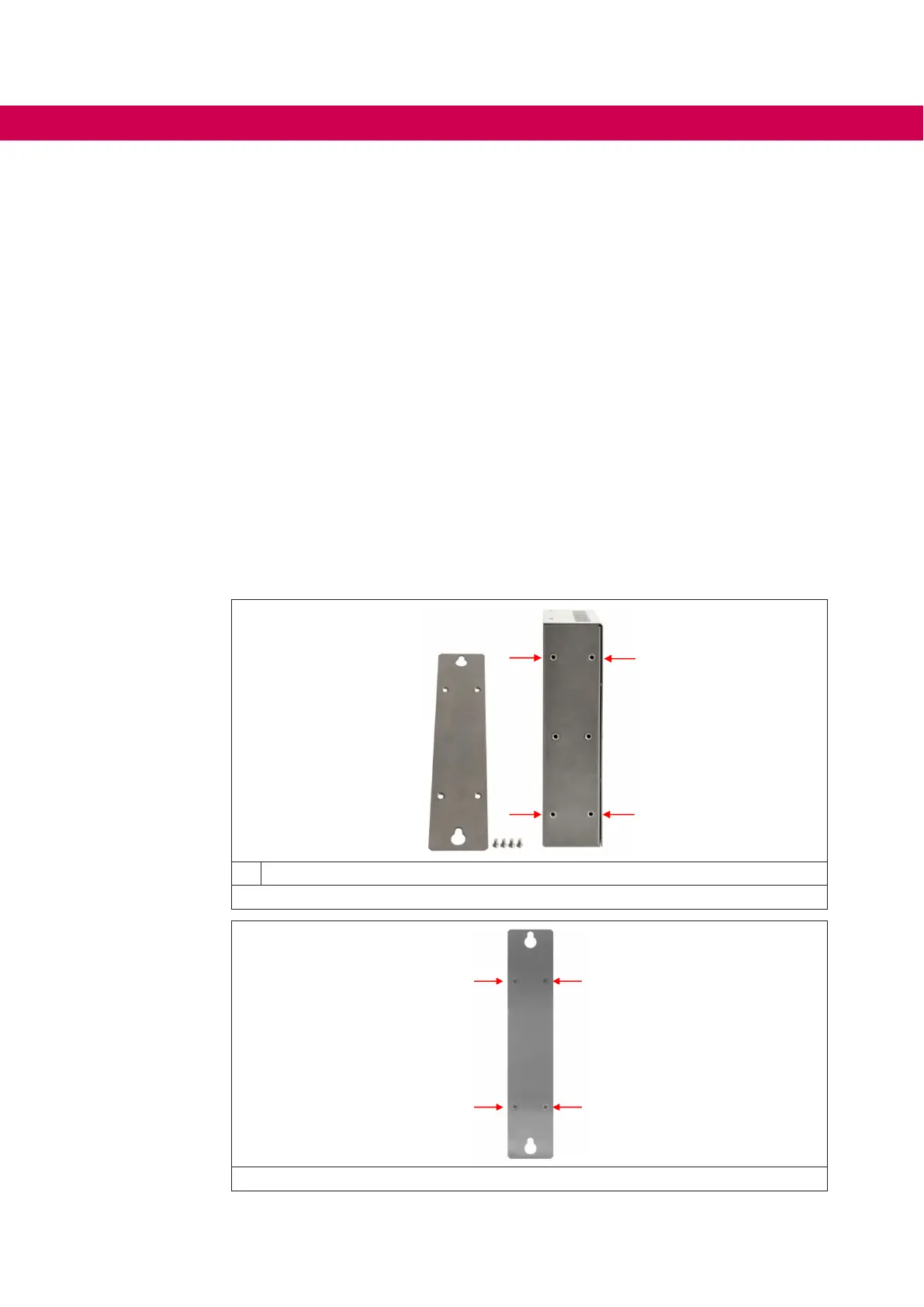

Figure 21: Wall mounting procedure
Figure 22: Wall mounting procedure / DIN rail mounting
