INSTALLATION AND CONNECTION

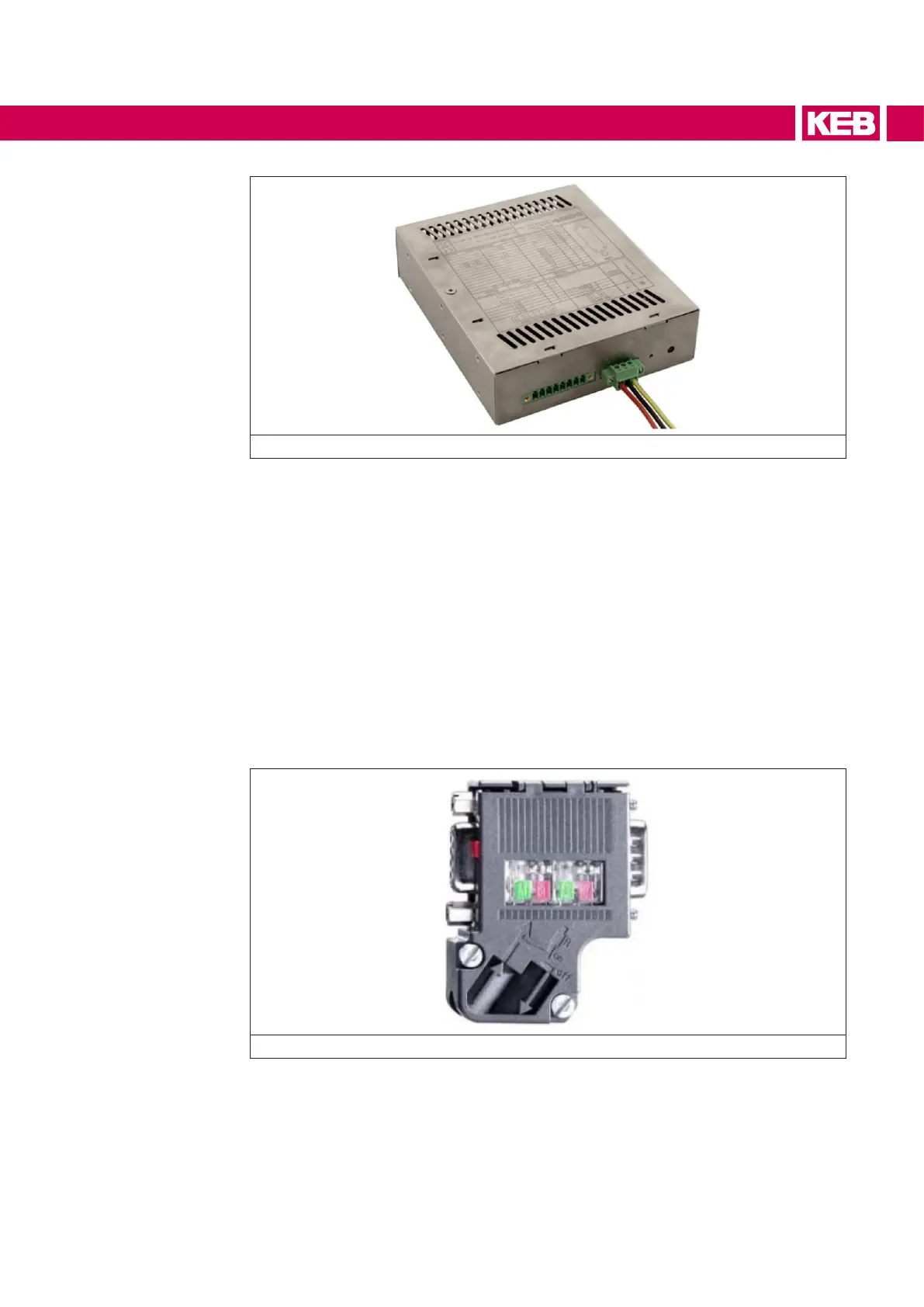

Figure 34: Connections for the power supply
Please refer to the COMBIVIS connect Control Center online help for all the details
abouthowtocongureanduseCOMBIVISconnectRouterdevice.
3.11 Connecting the serial port
A special DB15 connector supports all serial protocols (pin assignment see chapter
6.4.1). Therefore it is necessary to adapt the connections to the technical requirements;
KEB can supply connector adapters as optional parts but user can adapt DB15 connec-
tor by himself.For further details please contact KEB.
3.11.1 Connecting to MPI or PPI networks
Theelectricalspecicationofthe MPI networksareoftenreferringtothe useofDB9
connectorsliketheoneshowninthegurebelow.
Figure 35: DB9 connection adapter
The connector provides also the pass-through DB9 female connector for the MPI cable
of the programming device.
InordertosupporttheuseofthestandardProbus/MPIconnectorsonthemarket,we
recommend using the adapter cable (available as an accessory) to convert the DB15-M
connector of the COM port to a standard DB9-F, as this is necessary for the connector.
