KEB C6 - Pentaband Wall Mounting Antenna; Pentaband Outdoor Antenna; Figure 30: Pentaband Wall Mounting Antenna; Figure 31: Pentaband Outdoor Antenna Installation

42
INSTALLATION AND CONNECTION
3.9.2 Pentaband wall mounting antenna
Theexactdimensionsforthisareinthechapter"Technicalspecications/dimension
drawings".

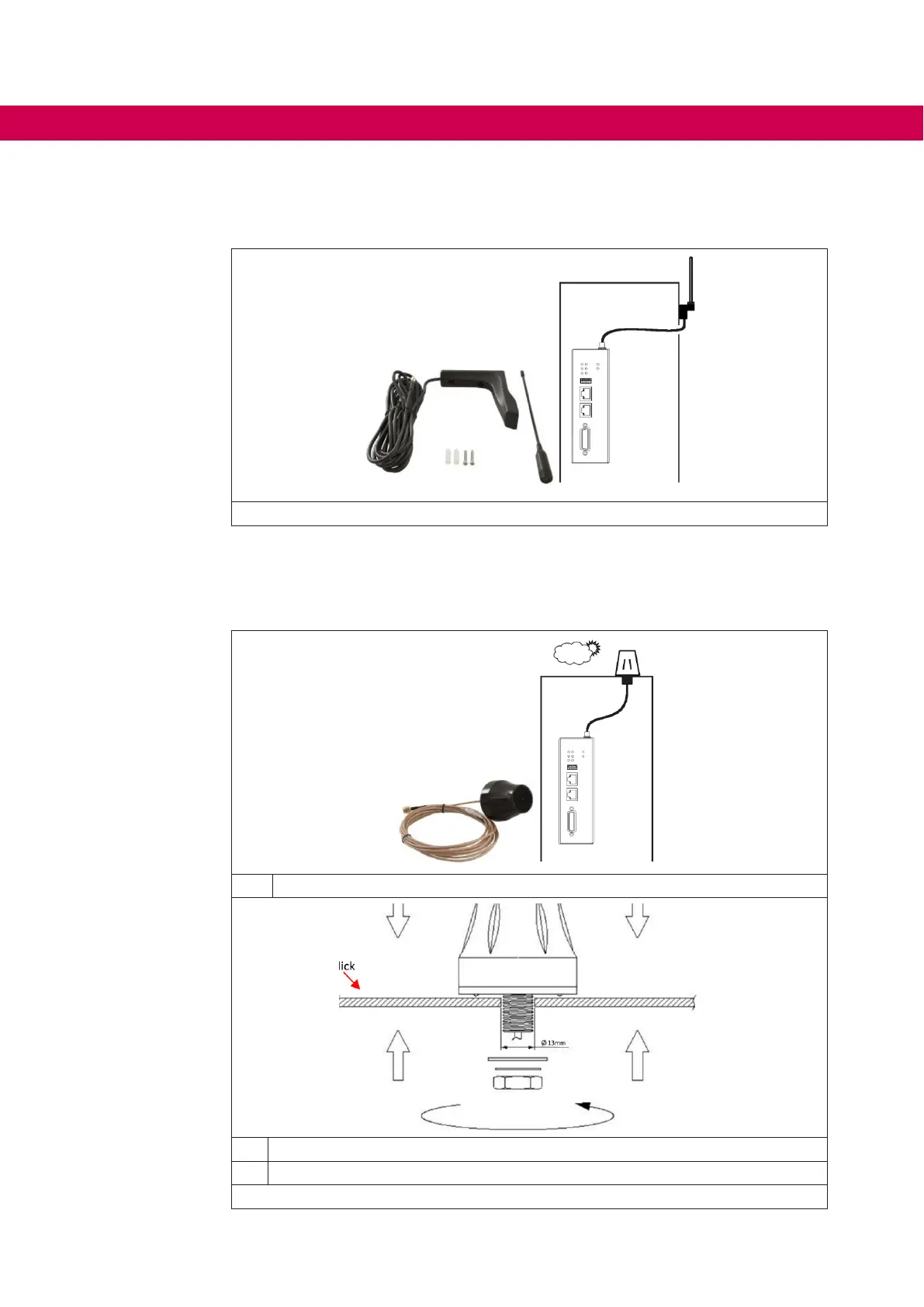

Figure 30: Pentaband wall mounting antenna
3.9.3 Pentaband outdoor antenna
Theexactdimensionsforthisareinthechapter"Technicalspecications/dimension
drawings".
• Drill a 13.0 mm hole in the metal.
• Recommended torque for mounting is 2.94 Nm.
• Maximum torque for mounting is 3.92 Nm.
Figure 31: Pentaband outdoor antenna installation
