46
INSTALLATION AND CONNECTION
Theadapterisshowninthefollowinggure:

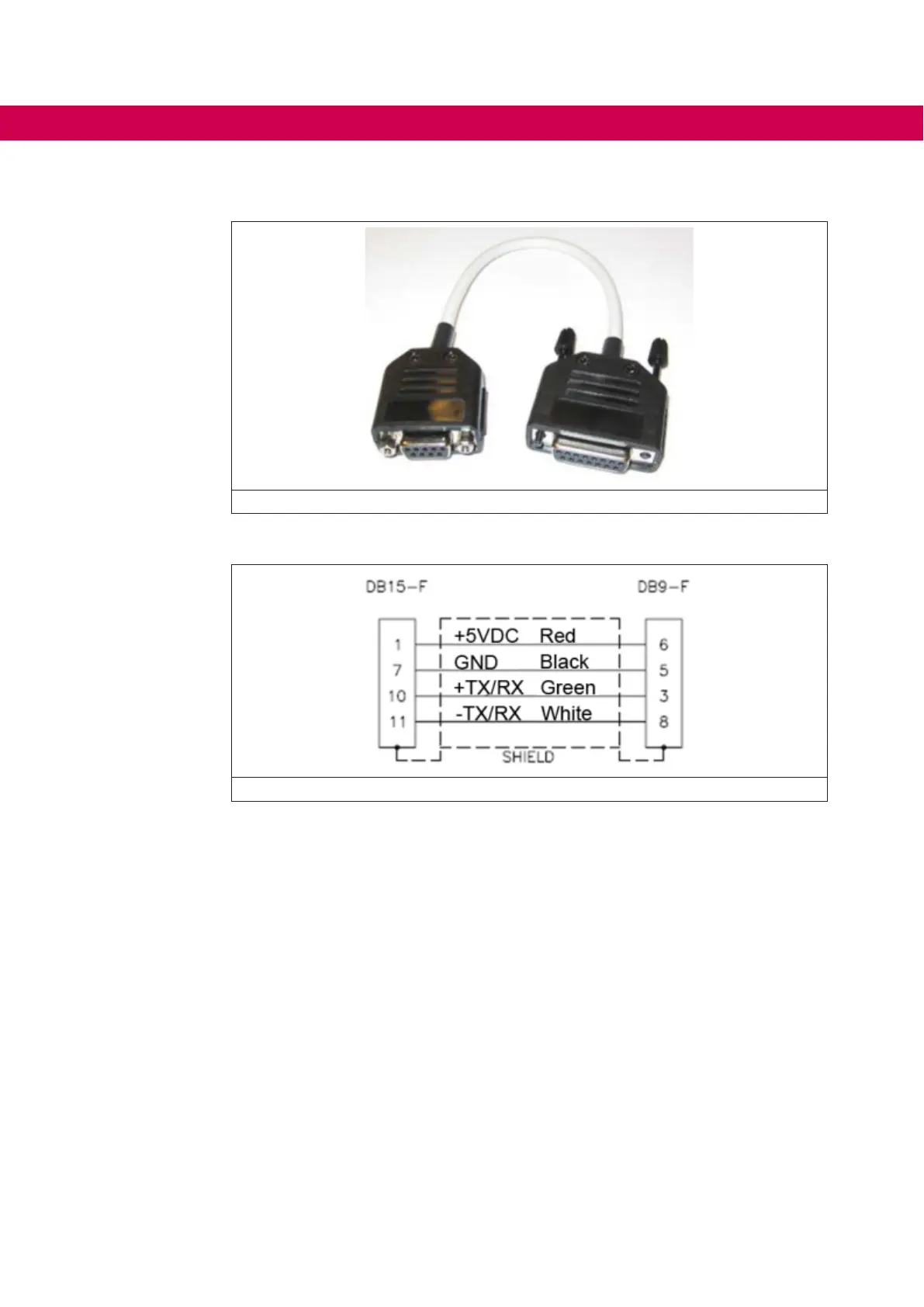

Figure 36: Adapter cable
The internal connection corresponds to the following table:
Figure 37: Connection adapter cable
The line connection and polarization is normally realized by using resistors mounted
internallytothestandardProbus/MPIconnectors.
The KEB adapter cable provides on the DB9-F connection side all signals required by
the MPI communication and the line connection.The KEB cable converter does NOT
containresistorsforlinetermination.Presentnotesdonotreplacetheo󰀩cialdocumen-
tationaboutProbusandMPInetworkwiring.Pleaserefertoo󰀩cialspecicationforany
additional detail.For further details please contact KEB.
