Functional Description Analog In- and Outputs
Chapter
Section
Page
Date
© KEB Antriebstechnik, 1998
All Rights reserved
Terminal Designa- Function
No. tion
13 COM earth for analog inputs/outputs
18 A1 0...±10 V / Ri = 100 Ω
programmable analog outputs Scan time: 2 ms
19 A2 Resolution: 10 Bit
An.14 Function 0...±100% or 0...+100%
An.18 correspond to
0 actual speed 0...±2 x synchronous speed
1 apparent current 0...2 x rated motor current
2 actual torque 0...±2 x rated torque
3 DC-link voltage 0...1000V
4 speed reference variable 0...±2 x synchronous speed
(output size of ramp generator)
5 control difference of the speed controller 0...±2 x synchronous speed
(speed reference variable – actual speed)
6 speed controller manipulated variable = 0...±2 x rated torque
torque setpoint
7 Modulation depth 0...100%
8 Display of the actual position in a range of (=set LE.50...LE.52 for An.14
pos. in set 0) to 100% (=LE.50...LE.52; LE.53...LE.55) LE.53...LE.55 for An.18
9
Speed in front of ramp 0...±2 x synchronous speed
10
REF1 output -10V...+10V
The KEB COMBIVERT F4-F has two programmable analog outputs. Parameters An.14
and An.18 allow the selection of one size each which is given out at the control
terminal strip X2. By means of the characteristic amplifier the analog signals can be
adapted to the requirements.
6.2.6 Analog Outputs
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
9
10

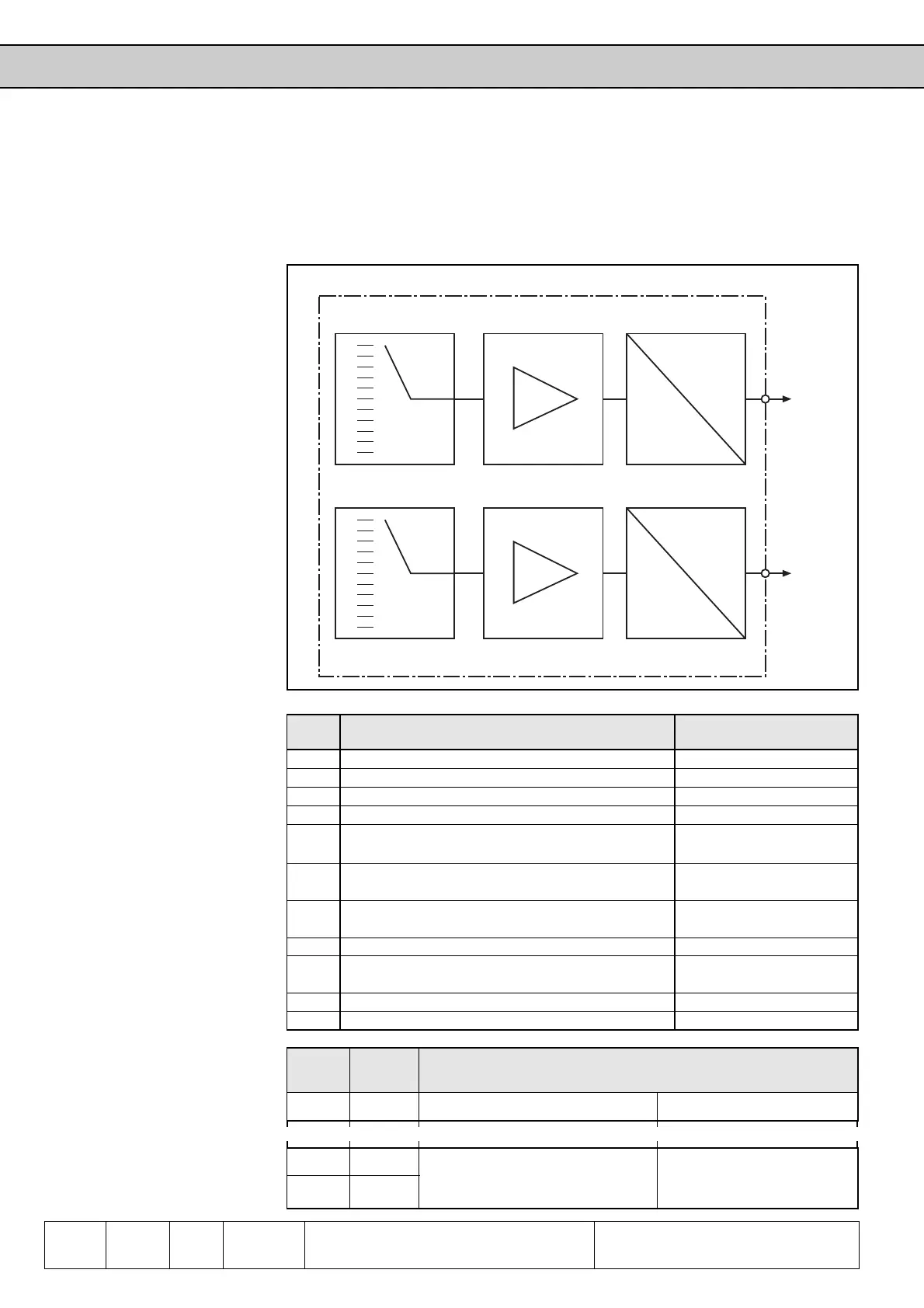

Fig. 6.2.10 Diagram of analog outputs
An.14
(function see table)
An.18
(function see table)
An.15 / An.16
An.19 / An.20
0...±100%
0...±10V
0...±100%
0...±10V
X2.18
A1
X2.19
A2
Function analog outputs
Control terminal strip X2
