6.7.6 Used Parameters
Fr.0 2700h ✔✔✔ -2 7 1 0 not by bus
Fr.1 2701h ✔ - - -2 7 1 0 not by keyboard
Fr.2 2702h ✔ - ✔ 0310-
Fr.3 2703h ✔ - ✔ 0 255 1 0 -
Fr.4 2704h ✔ - ✔ 0710-
Fr.5 2705h ✔✔- 0,000 10,000 s 0,001 s 0,000 -
Fr.6 2706h ✔✔- 0,000 10,000 s 0,001 s 0,000 -
Fr.9 2709h ✔ - - -1 7 1 0 not by keyboard
6.7.5 Parameter Set ON
and OFF Delay
(Fr.5, Fr.6)
With these parameters a time of 0...10s can be adjusted,
- with which the activation of a new set is delayed (Fr.5)
- with which the deactivation of the old set is delayed (Fr.6)
At set changeover the turn-off time of the old set and the turn-on time of the new set
are added up.

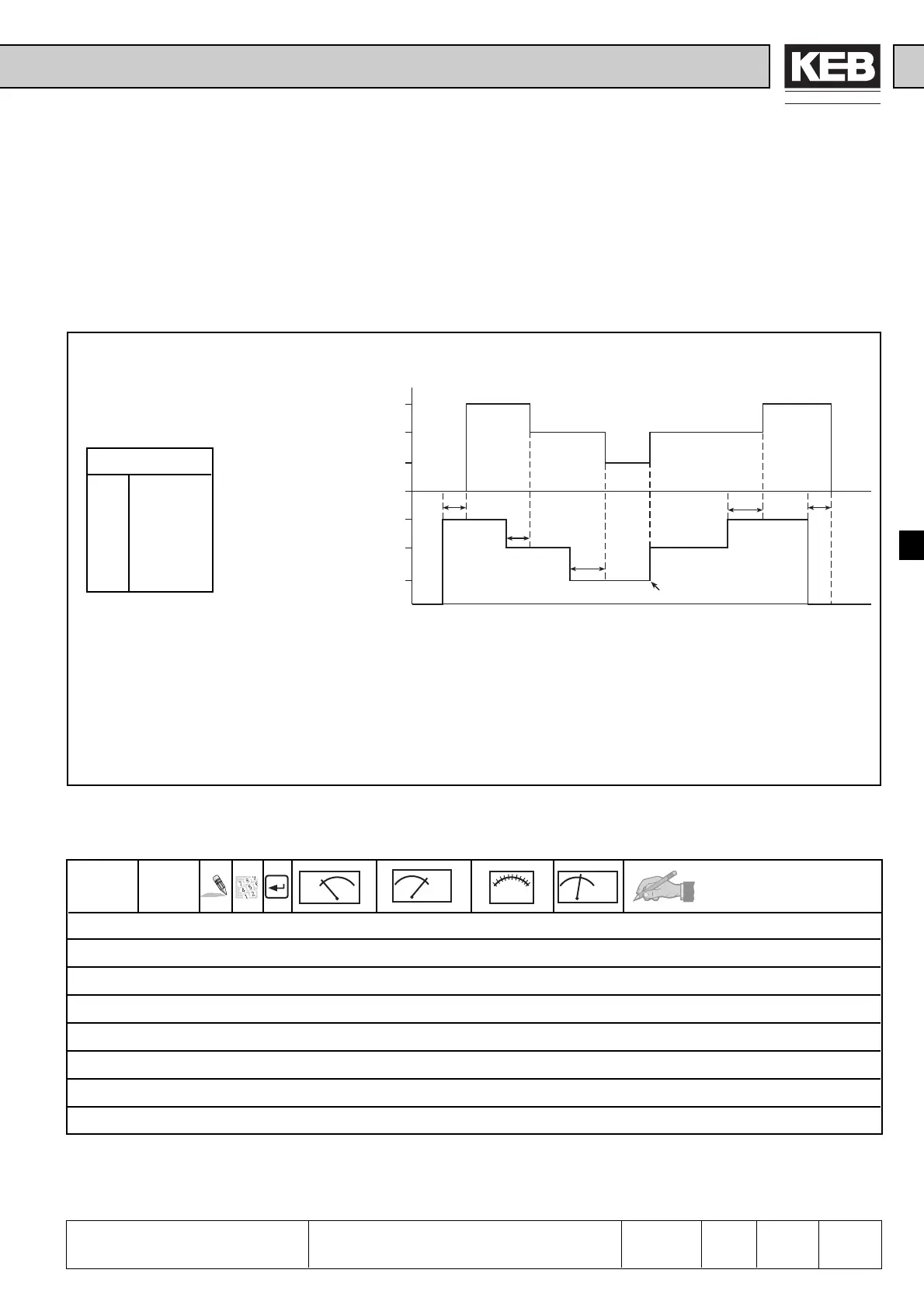

Fig. 6.8.5 ON and OFF delay
Example
Set Fr.5 Fr.6
00 s0 s
12 s0 s
20 s1 s
32 s2 s
1: ON delay set 3 of 2s
2: OFF delay set 3 of 2s
3: OFF delay set 2 of1s +
ON delay set 1 of 2 s
4: Immediate changeover as no delay-time is adjusted
5: OFF delay set 2 of 1s +
ON delay set 3 of 2s
6: OFF delay set 3 of2s
Set 1
Set 3
Set 2
Set 1
Set 3
Set 2
Set 0
Set 0
Preselected set
Current set
