3
ANTRIEBSTECHNIK
11
13
11
KEB COMBIVERT F4-F
Name: Basis
05.01.99
Chapter Section PageDate
© KEB Antriebstechnik, 1998
Allk Rights reserved
Networks
Network Hardware
3
2
7
2
3
7
2
3
5
11.1.1 Available Hardware
11.1 Network
Components
The KEB COMBIVERT F4 can be easily integrated into different networks. For that
the inverter is fitted with an operator or interface that corresponds to the bus system.
Following hardware components are available:
– RS232-Cable PC/Inverter Part No..:
00.58.025-000D
– Interface Operator Part No..:
00.F4.010-1009
serial network in RS232 or RS485-Standard
– Bus Operator Part No..: 00.F4.010-7009
serial network in RS485-Standard
– InterBus Loop-Operator Part No..:
00.F4.010-8009
– InterBus Remote Bus Interface (external) Part No..: 00.B0.0BK-
K001
– LON-Bus-Operator Part No..: 00.F4.010-4009
– CAN-Bus-Operator Part No..: 00.F4-010-5009
– Profibus-DP-Operator Part No.: 00.F4.010-6009
– Optical fibre interface (Master) Part No.:
00.F4.028-1009
– Optical fibre interface (Slave) Part No.: 00.F4.028-1008
– Optical fibre operator Part No.: 00.F4.010-A009
11. Networks

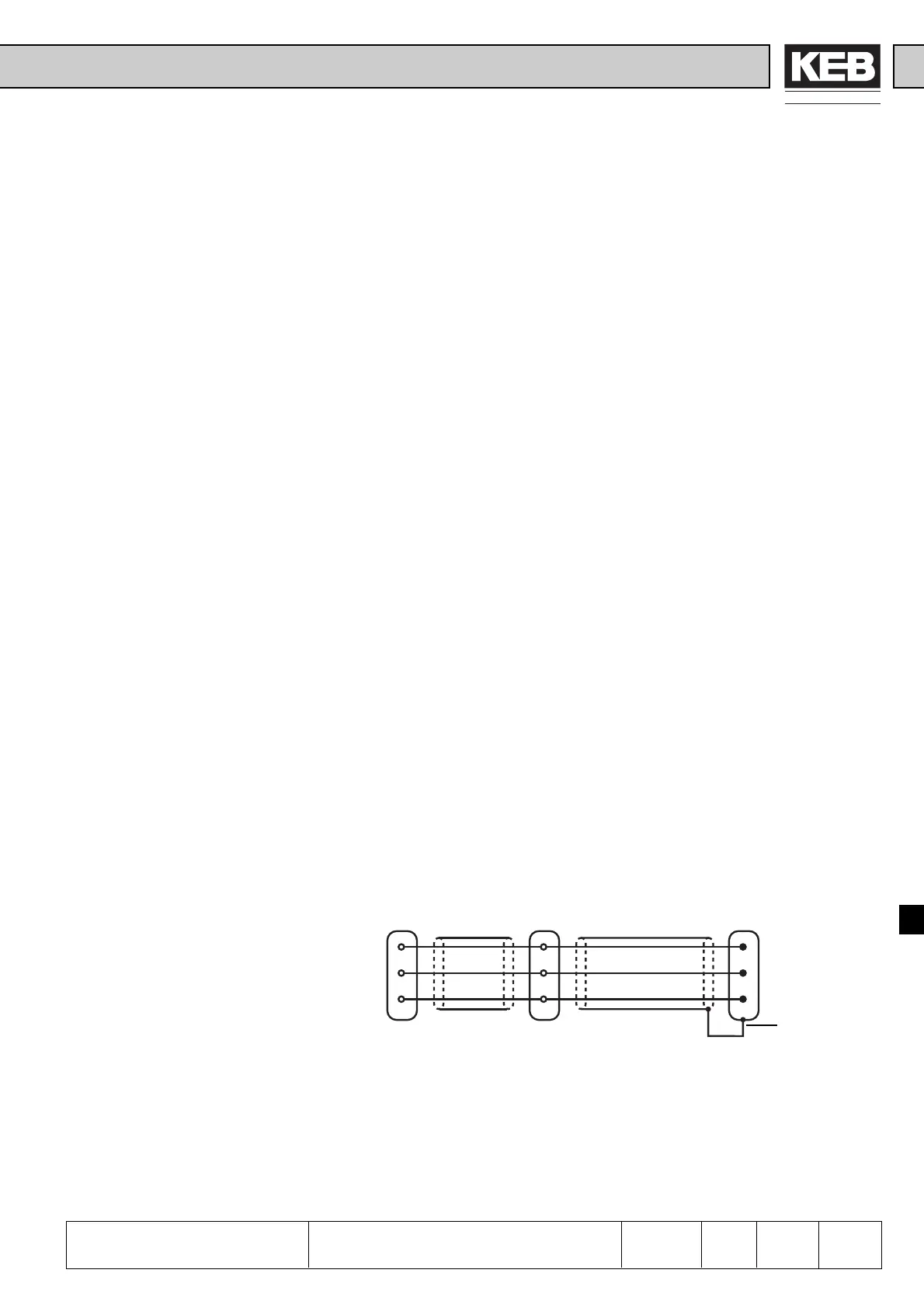

11.1.2 RS232-Cable PC/
Inverter
The 3m-long cable serves for the direct RS232 connection of PC (9-poles or 25-
poles SUB-D connector) and inverter.
9pol. or 25pol. SUB-D Socket 9pol. SUB-D
Connector
Housing (PE)
PC PC
F4
