The Drive-Mode is a special operating mode of the KEB COMBIVERT. It allows an
easy manual start-up. To activate the Drive-Mode enter the password „500“ in
‘CP.0’ or ‘ud.0’. Following settings are possible:
– Stop / Start / Run
– Setpoint value
– Direction of rotation
All other settings like setpoint limitation, acceleration time, deceleration time etc.
correspond to the preselection in the parameter sets.
Hardware condition: The control release must be bridged!
4.4 Drive-Mode
4.4.3 Setpoint Display /
Setpoint Input
Rotation display
Display operating status /
actual speed / setpoint
speed
Status-/ Error display
Normal "LED on"
Error "LED blinking"
Operator panel

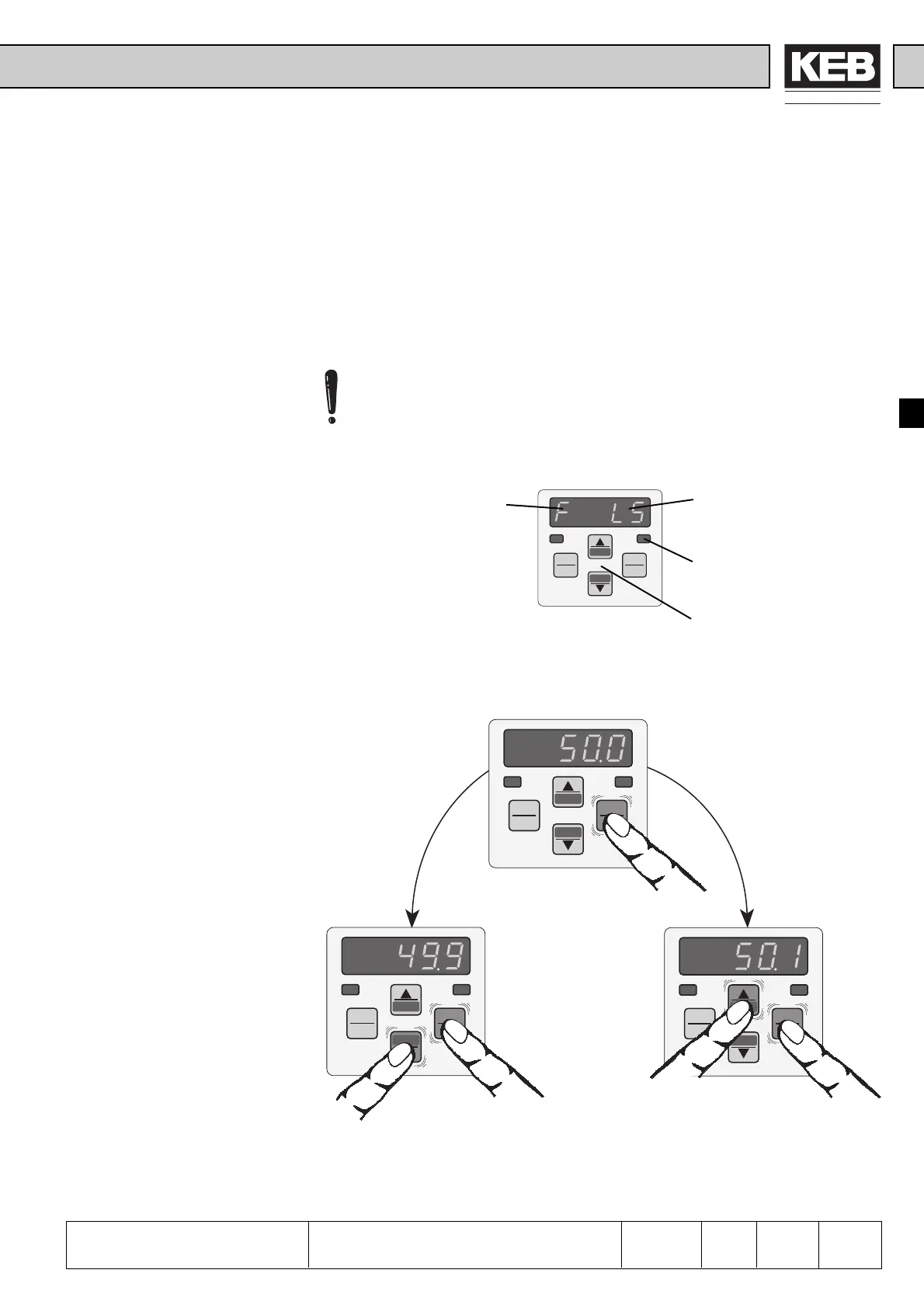

4.4.1 Adjustment
Possibilities
Press the SPEED-key and
reduce the displayed setpoint
value with the STOP-key.
Press the SPEED-key and
increase the displayed setpoint
value with the START-key.
The adjusted setpoint value is
displayed for as long as the
SPEED-key is pressed.
4.4.2 Display and
Keyboard
D
e
c
r
e
a
s
e
s
e
t
v
a
l
u
e
I
n
c
r
e
a
s
e
s
e
t
v
a
l
u
e
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
START
FUNC.
SPEED
ENTER
F/R
STOP
