Functional DescriptionMotor Data and Controller Adjustment
6.5.19 Used Parameters
dr.0 2400h ✔ - ✔ 0,01 kW 75 kW 0,01 kW - default value dep. on inverter size
dr.1 2401h ✔ - ✔ 100 min
-1
9999 min
-1
1min
-1
- default value dep. on inverter size
dr.2 2402h ✔ - ✔ 0,1 A 1,1 x In.01 0,1 A - default value dep. on inverter size
dr.3 2403h ✔ - ✔ 20 Hz 300 Hz 1 Hz 50 Hz -
dr.4 2404h ✔ - ✔ 0,05 1,00 0,01 - default value dep. on inverter size
dr.9 2409h - - - 0,1 Nm 1000,0 Nm 0,1 Nm - -
dr.10 240Ah - - - 0,1 Nm 1000,0 Nm 0,1 Nm - -
dr.12 240Ch ✔ - ✔ 100 V 500 V 1 V 400 V -
dr.13 240Dh ✔ - ✔ 0,0 rpm 9999,5 rpm 0,5 rpm 1000 rpm -
dr.16 2410h ✔ - ✔ 0,0 5 x dr.09 0,1 1,5 x dr.09 -
dr.19 2413h ✔ - ✔ 200,0 rpm 9999,5 rpm 0,5 rpm 1300 rpm -
-10V
10V
-5V
5V

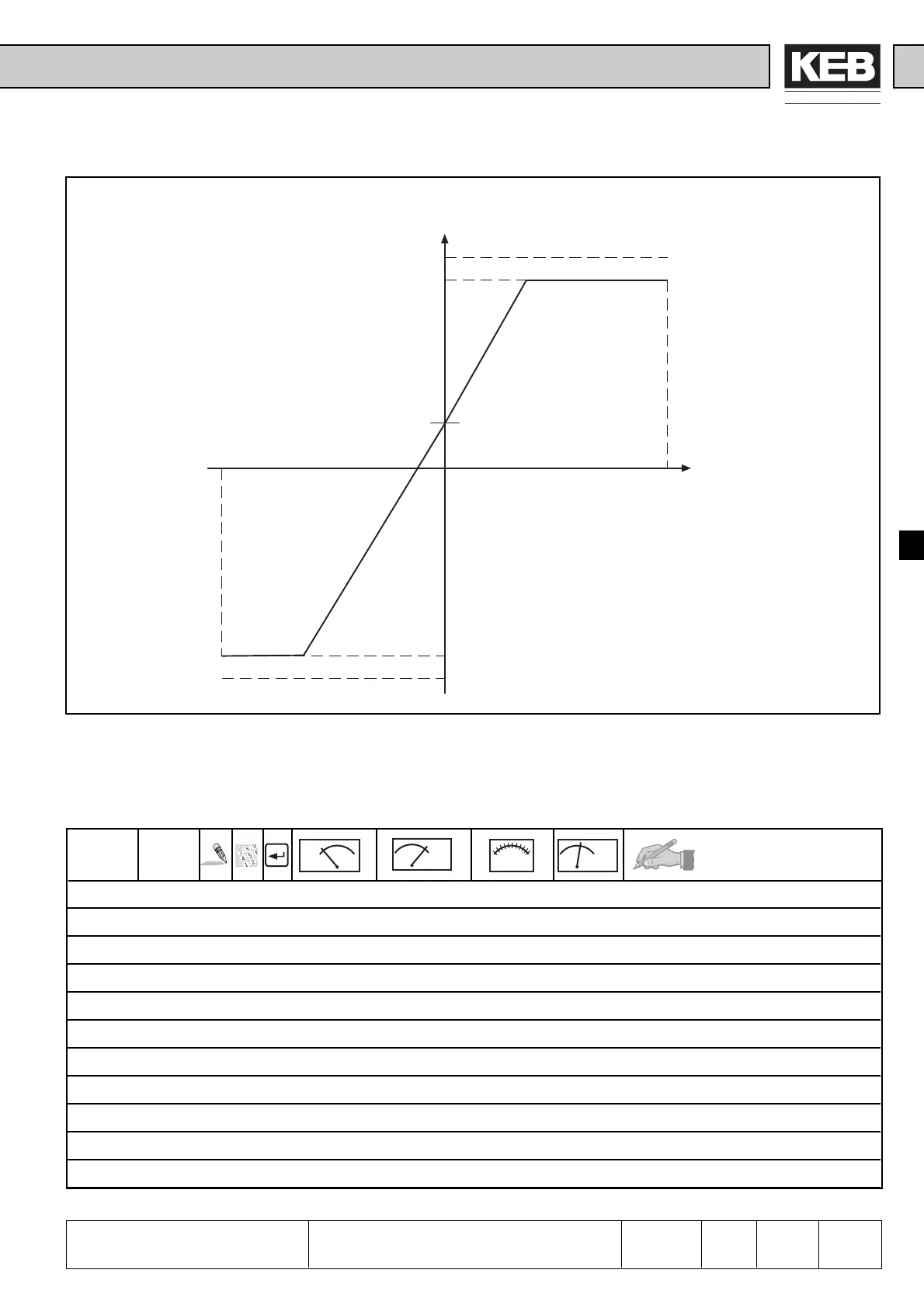

6.5.18.c Torque input via REF1 with Offset 20% (An.4) and Gain factor 2 (An.3)
Torque
Torque limit CS.6
REF1
Max. torque dr.10
Torque limit CS.6
10% CS.6
Max. torque dr.10
Param. Adr.
min
max
default
ENTER
PROG.
R/W
Step
