Functional Description Motor Data and Controller Adjustment
-10V
10V
-5V
5V

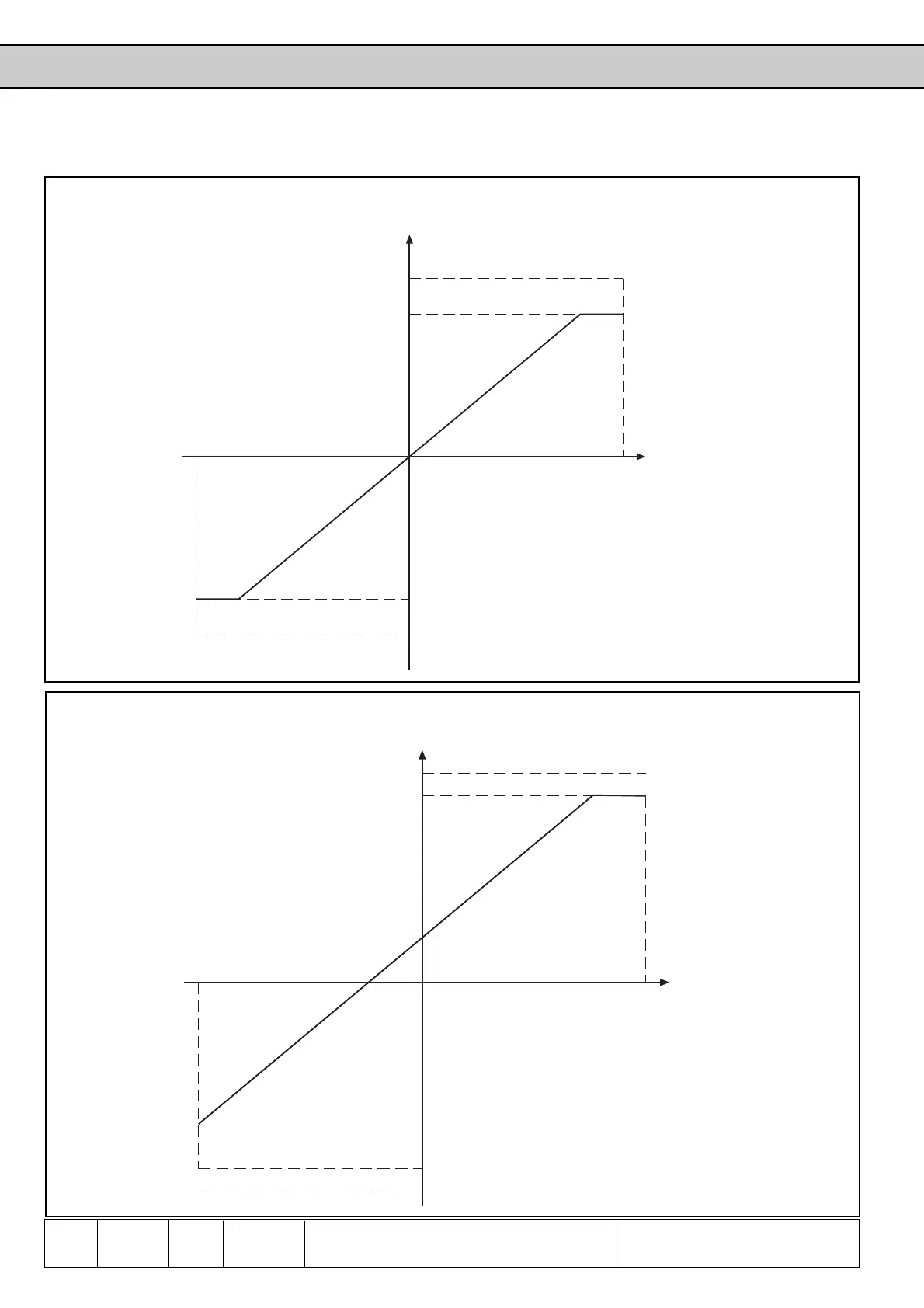

6.5.18.b Torque input via REF1 with Offset 20% (An.4)
Torque
Torque limit CS.6
REF1
Max. torque dr.10
Torque limit CS.6
10% CS.6
Max. torque dr.10
-10V
10V
-5V
5V
6.5.18.a Torque limit higher than max. torque
Torque
Torque limit CS.6
REF1
Max. torque dr.10
Torque limit CS.6
Max. torque dr.10
