Functional Description Parameter Sets
Input-coded set selection
ID IB I4 I2 I1 Set
000000
000011
000202
003003
040004
500005
503003
503011

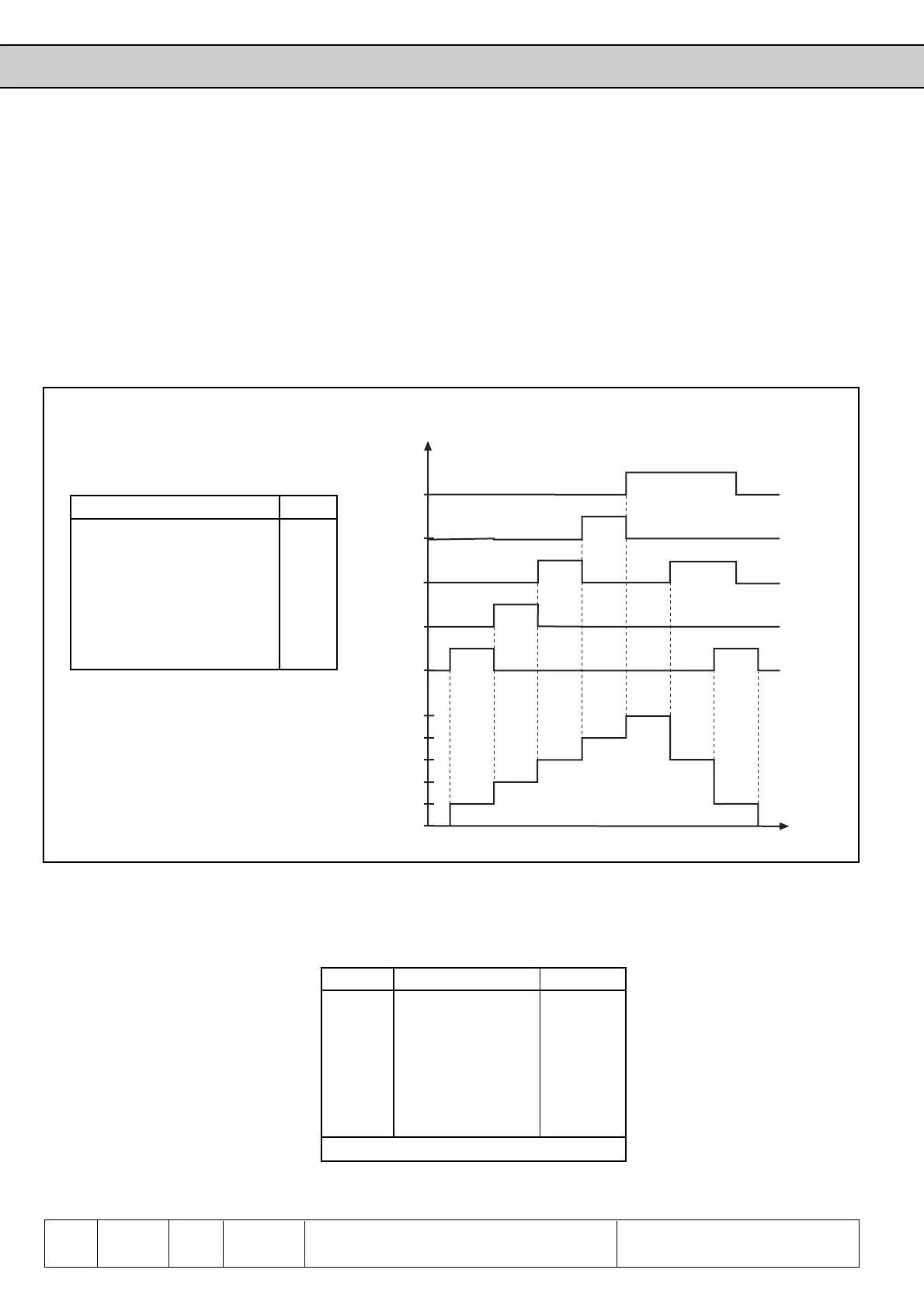

Fig. 6.8.3.c Input-coded parameter set selection
For bit-coded set selection
- maximal 7 of the internal or external inputs may be programmed for set selection
(0…7 sets) in order to avoid set selection errors.
- the lowest of the selected inputs has priority
(I1 > I2 > I3 > I4 > I5 > I6 > IA > IB > IC > ID)
Example 1: Set 0…5 shall be selected with 5 inputs (I1, I2, I4, IB und ID).
1.) Adjust parameter di.3, di.4, di.6, di.8 and di.10 to value „1“
2.) Parameters di.5, di.7 and di.9 must be set to ≠ 1
3.) Adjust Fr.2 to value „3“ (set selection input-coded by way of terminal strip)
6.7.4 Locking of Para-
meter Sets
Parameter sets that shall not be selected can be locked with Fr.3. If one of the locked
sets is selected, the inverter switches off with set selection error (E.SEt).
Value Locked set Example
10 -
21 -
42 4
83 -
16 4 -
32 5 32
64 6 -
128 7 -
Set 2 and set 5 lcoked Sum 36
Parameter set lock (Fr.3)
Set 0
Set 1
Set 2
Set 3
Set 4
Set 5
I1
I2
I4
IB
ID
