Functional DescriptionParameter Sets
As shown in Fig. 6.8.3 with Fr.2 it is defined whether the parameter set selection is
enabled or disabled by keaboard/bus (Fr.4) of by way of terminal strip.
Fr.2 Function
0 Set selection disabled; set 0 always active
1 Set selection by keyboard/bus with Fr.4
2 Set selection binary-coded by way of terminal strip
3 Set selection input-coded by way of terminal strip
Parameter set source (Fr.2)
Parameter set setting (Fr.4 )
This parameter can be written by keyborad or by bus. The desired parameter set
(0…7) is entered directly as value.
The adjustment by way of terminal strip can be done binary-coded or input-coded.
The inputs are defined for set selection with the parameters di.3…di.10 „value 1“.
For binary-coded set selection
- maximal 3 of the internal or external inputs may be programmed for set selection
(2
3
=8 sets) in order to avoid set selection erors.
- the significance of the inputs programmed for set selection rises (I1 < I2 < I3 <
I4 < I5 < I6 < IA < IB < IC < ID)
Example 1: Set 0...8 shall be selected with 3 inputs (I1, I3 and I4).
1.) Adjust parameter di.3, di.5 and di.6 to value „1“
2.) Parameters di.4, di.7...di.10 must be set to ≠ 1
3.) Adjust Fr.2 to value „2“ (set selection binary-coded by way of terminal strip)

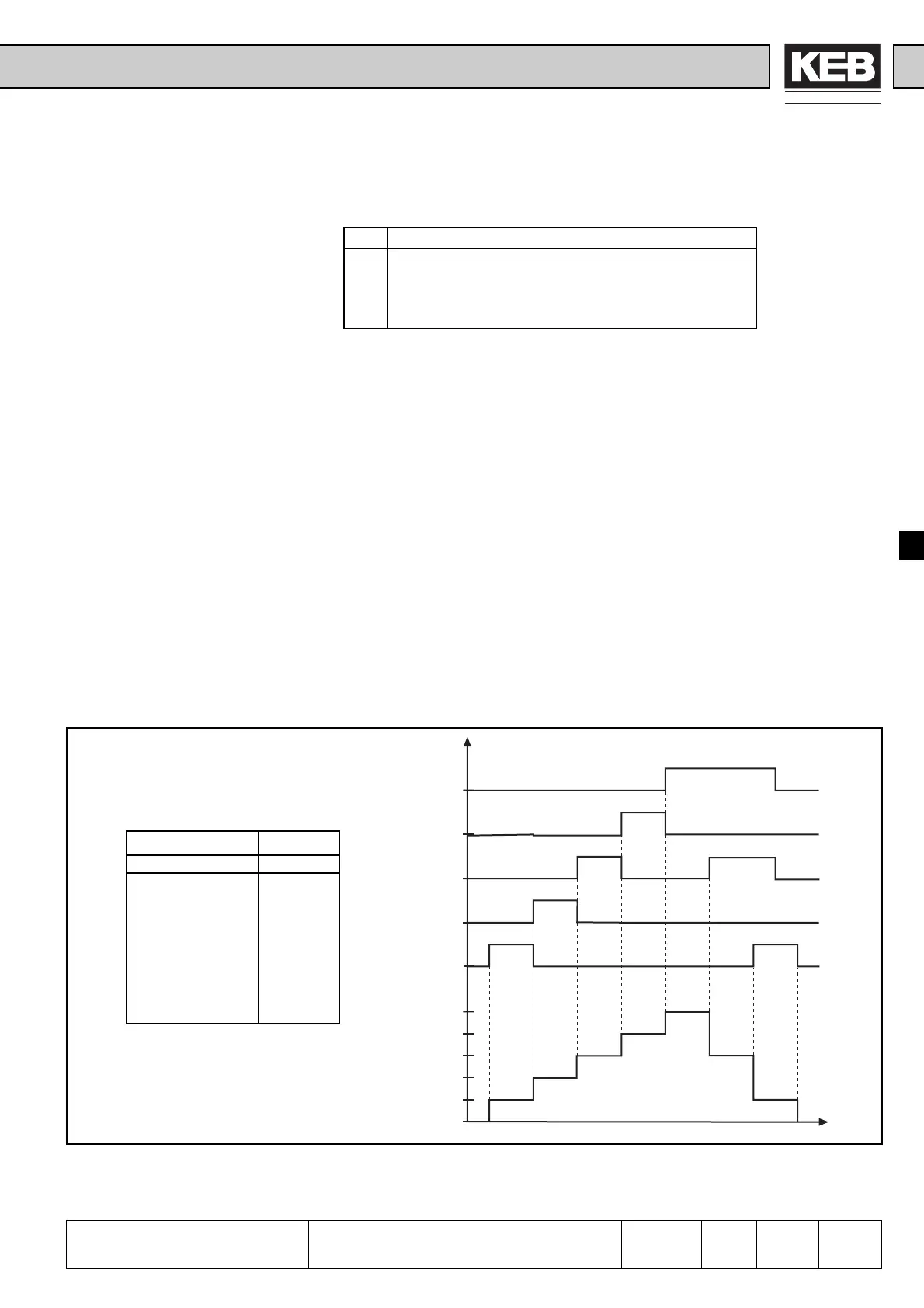

Binary-coded set selection
Set 0
Set 1
Set 2
Set 3
Set 4
Set 5
I1
I2
I4
IB
ID
I4 I3 I1 Input
2² 2
1
2
0
Set
0000
0011
0202
0213
4004
4015
4206
4217
Fig. 6.8.3.b Binary-coded parameter set selection
