Name: Basis
KEB COMBIVERT F4-F
16.03.99
Functional Description Set Value and Ramp Adjustment
Chapter
Section Page Date
© KEB Antriebstechnik, 1999
All Rights reserved
0
1
2
3
4
518
6
7
8
15
16
17
+ + + +
An.13
0
1
2...6

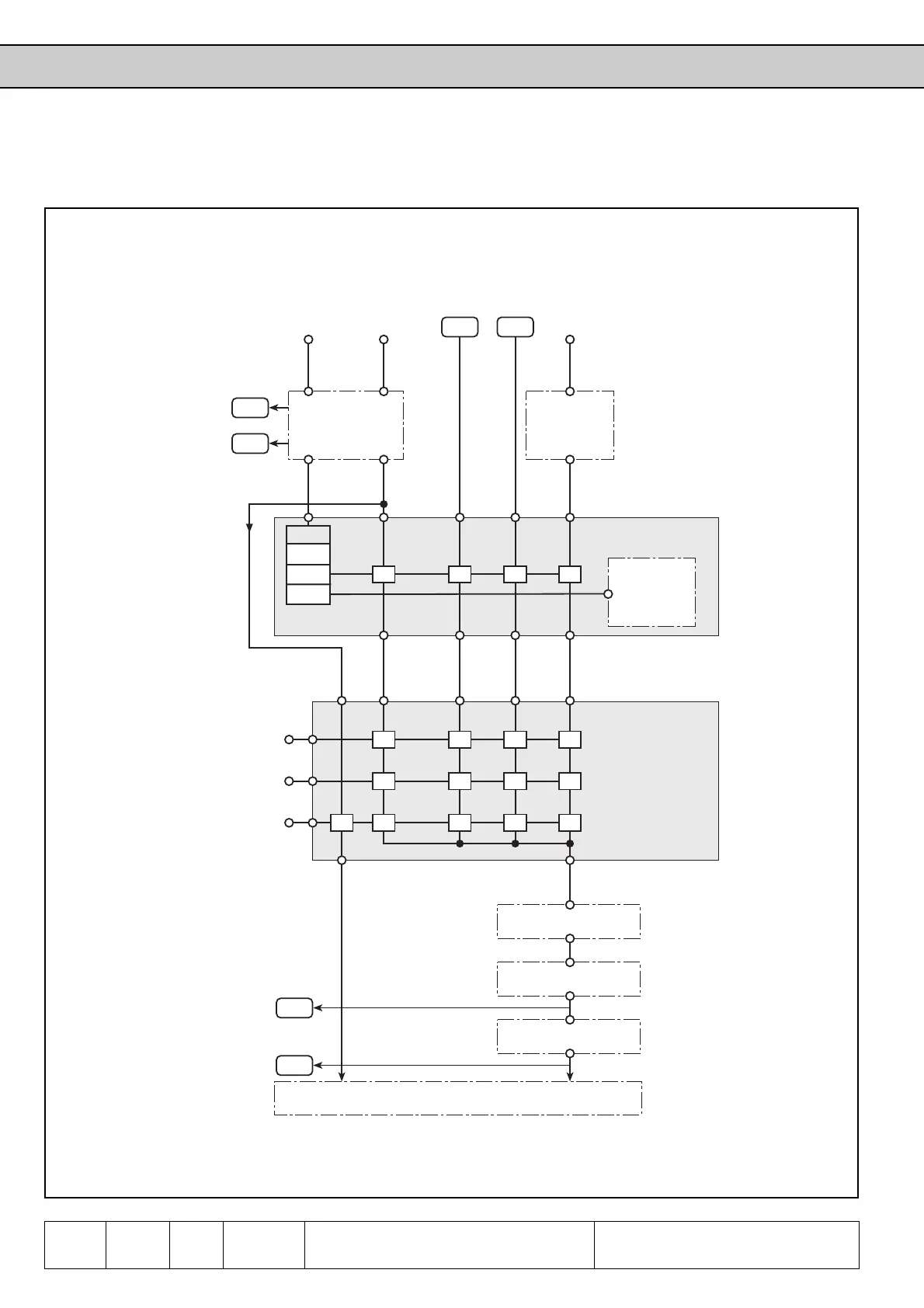

Fig. 6.4.2 Setpoint values and AUX-function
Analog setpoints Digital setpoints
see 6.7
Sepcial
functions
see 6.2
analog in- and
outputs
REF2 +/-
X2.14
X2.15
REF1 +/-
X2.16
X2.17
SP.1 SP.2 Motorpoti
REF1 +/-
direct
6.4.2 AUX-Function, Setpoint and Rotation Selection
Setpoint
sources
Setpoint limits
Setpoint calculation
Ramp generator
Control processor
SP.0
Setpoint and
rotation
selection
Rotation sources
Digital (SP.3)
Terminal strip
X2.3 / X2.4
Sign of setpoint
(REF1/REF2)
Display setpoint
speed before ramp
ru.20
Display setpoint
speed
ru.4
Display REF1 ru.22
Display REF2 ru.23
see 6.8.3
AUX-
function
