Functional DescriptionSpecial Functions
Positioning without ‘Target window reached’ signal (i.e. no switching condition programmed on value 30: ‘Targ e t
window reached’ ) :
The same function as before but in addition to the condition actual speed smaller speed hysteresis the status
‘rFP:positioning can be started’ must be achieved. In this mode the speed setting has no function.

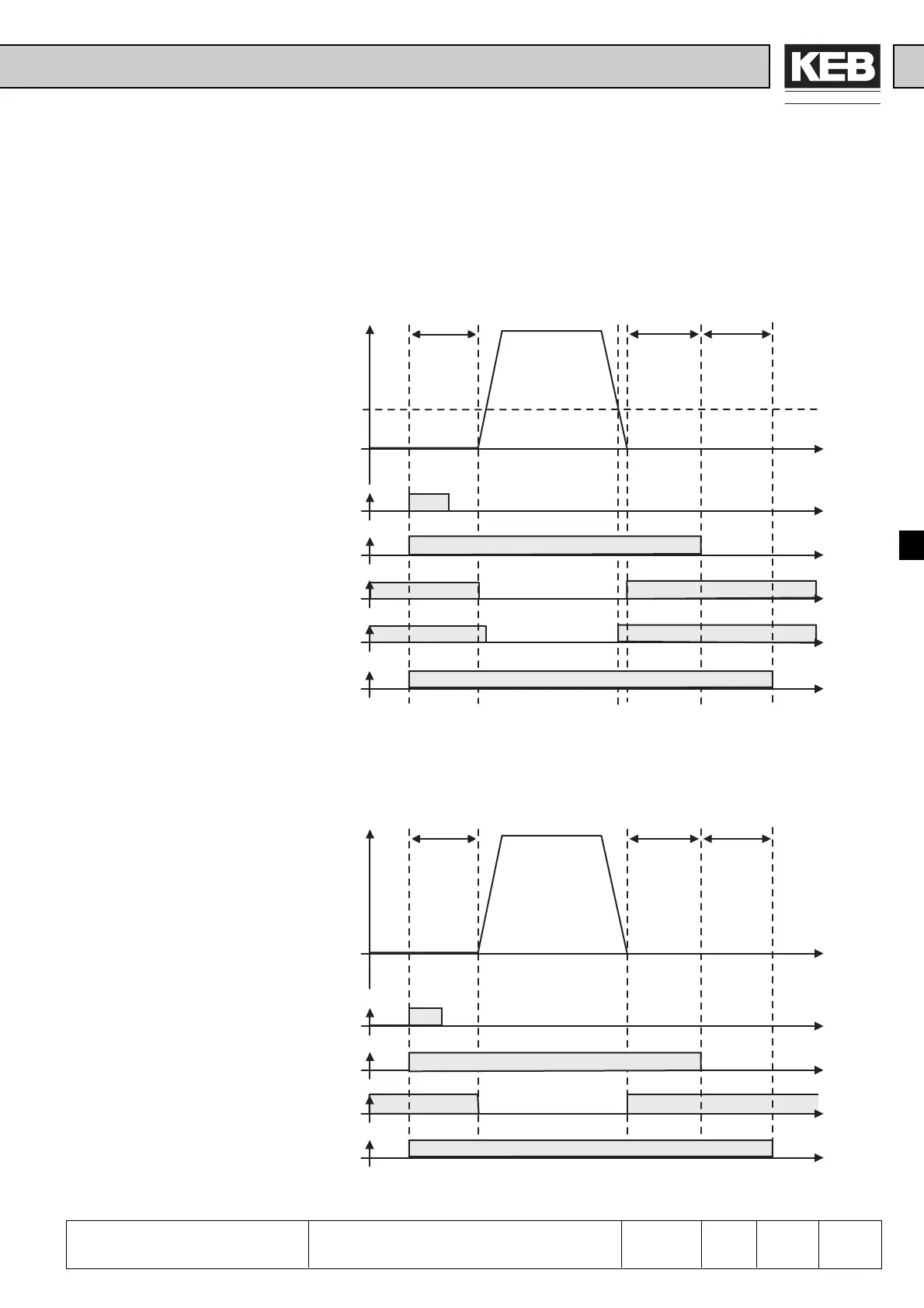

Brake handling at activated positioning with ‘Target window reached’-signal:
With the signal ‘Target window reached’ the brake delay time starts. the speed hysteresis has no function in this mode.
Actual speed
Modulation on
Actual speed < speed hysteresis
Brake control
Start positioning
Release time
LE.67
Delay time
LE.66
Application
time LE.68
‘rFP’ positioning
can be started
Actual speed
Modulation on
Target window reached
Brake control
Start positioning
Release time
LE.67
Delay time
LE.66
Application
time LE.68
Speed hysteresis LE.37
