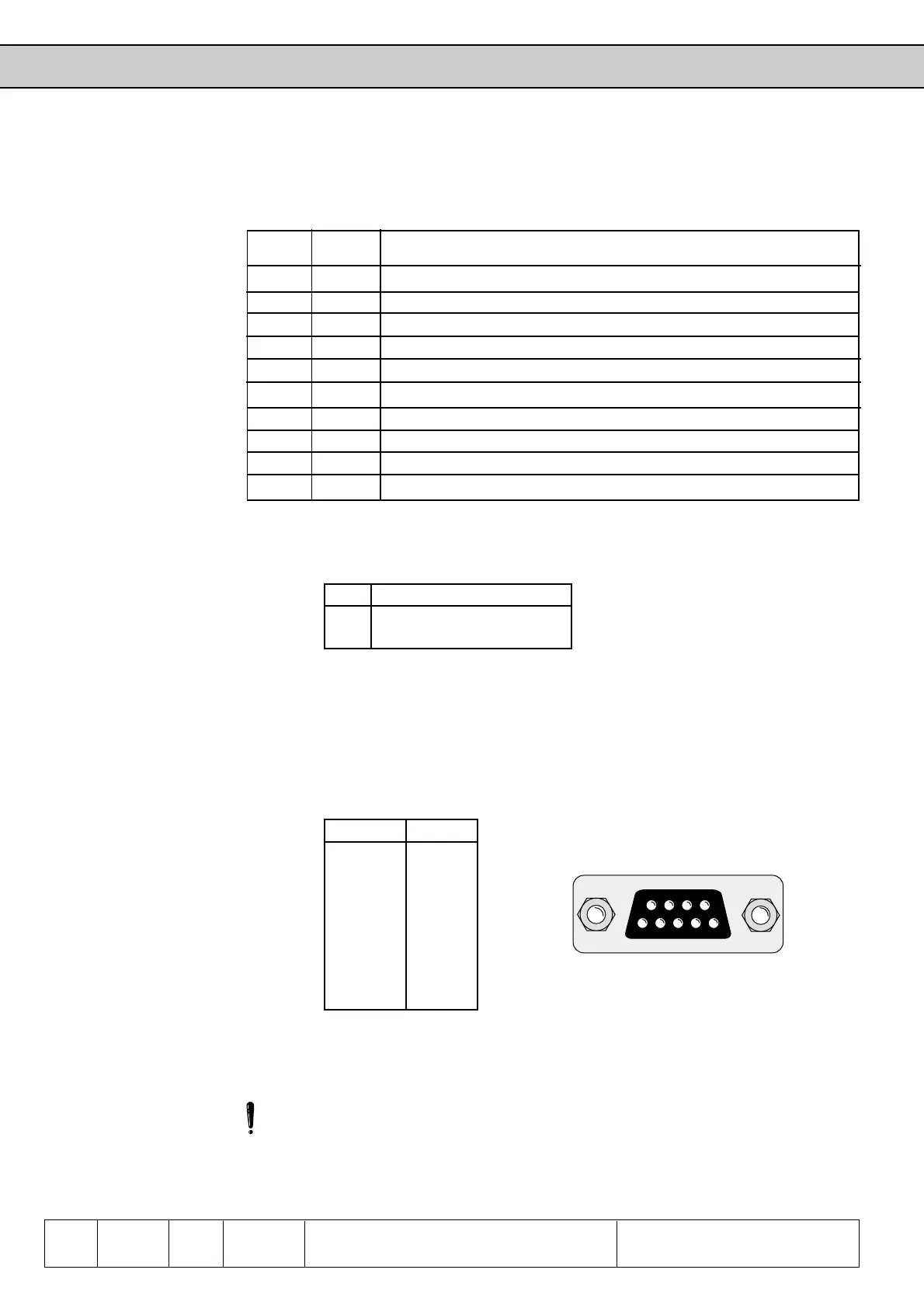

Functional Description Encoder Interface
Incremental encoder
output
Signal X5 Description
U
var
5 Supply voltage for encoder (see 6.9.2)
+5 V 4 Supply voltage for encoder (see 6.9.2)
0 V 9 Reference potential
A 1 Signal output A
_
A 6 Signal output A inverted
B 2 Signal output B
_
B 7 Signal output B inverted
N 3 Reference marking output N
_
N 8 Reference marking output N inverted
Shield Housing Shielding
The incremental encoder output gives out the signals recorded at the encoder interface 1:1
in RS422-specification over the second channel (e.g. master drive in synchronous operation).
Operating mode
encoder 2 (dr.39)
With parameter dr.39 it is defined whether the encoder channel 2 shall work as input or
output. Precondition for that is a built-in switch-selectable encoder interface (In.57 = 7).
dr.39 Function
0 Incremental encoder output
1 Incremental encoder input
SSI-Interface for
absolute value encoder
(Optional to X5)
Clock frequency : 312,5 kHz or 156,25 kHz
Signals : RS 422 / Clock and data
Max. transmission link : 50 m
Released encoder types : Heidenhain ROC 424, Stegmann AG
626 or compatible.
PIN No. Signal
1 Clock +
2 Data +
3 n.c.
4+ 5 V
5 +18 V
6 Clock -
7 Data -
8 n.c.
9 GND
12345
6789
Only when the inverter is switched off and the voltage supply is disconnected
may the plug be pulled out or plugged in !
(1) Uvar is loadable at X4 and X5 with altogether 110 mA. The +5 V voltage is a stabilized
voltage and loadable at X4 and X5 with altogether 300 mA (see 6.9.2).
