4 3 KEB COMBIVERT F4-F
8
Name: Basis
15.12.98
CP - Parameter
© KEB Antriebstechnik, 1998
All Rights reserved
Operation
Chapter Section Page Date

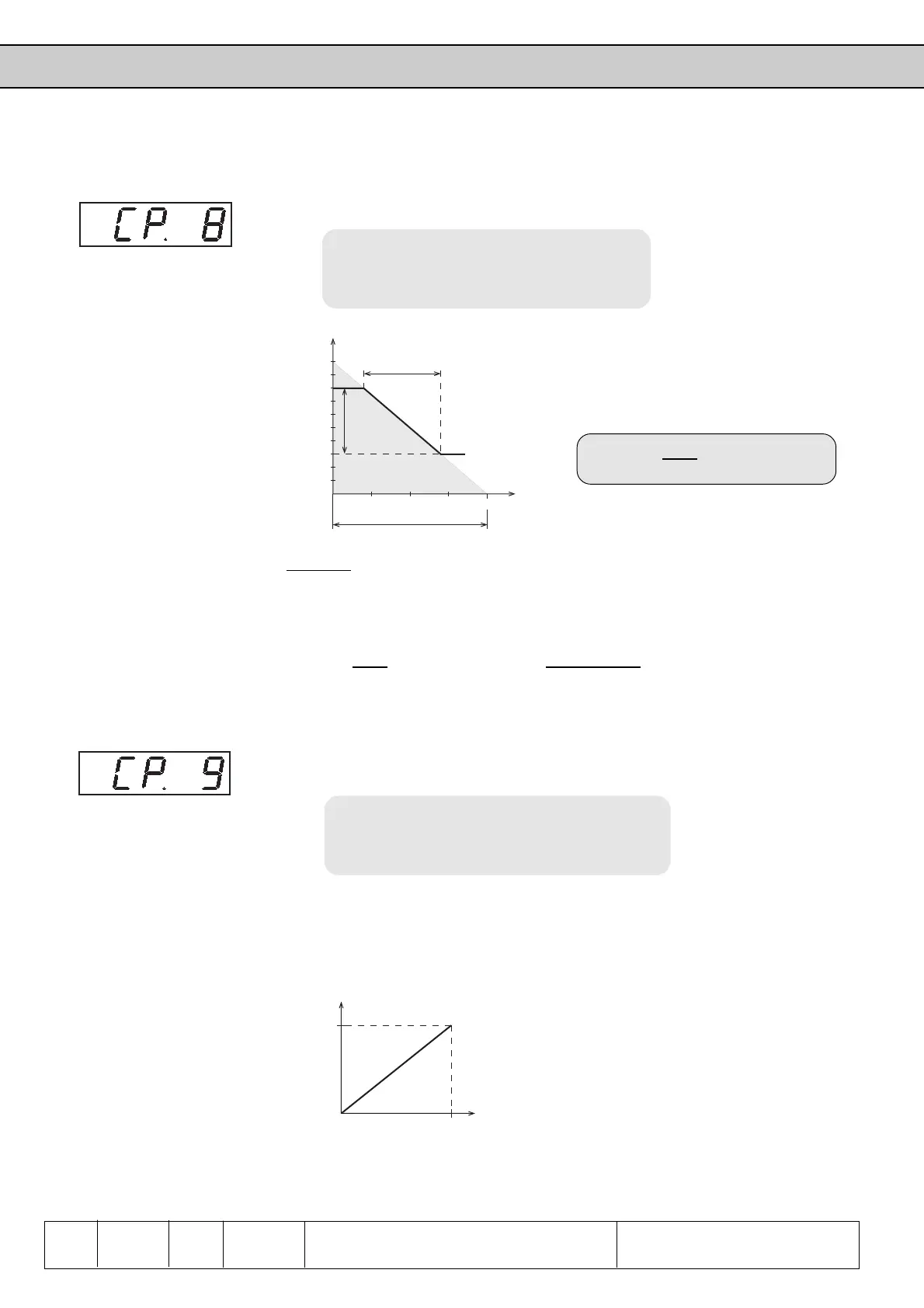

Defines the time needed to decelerate from 1000 to 0 rpm. The actual deceleration
time is proportional to the speed change (D n).
Adjustment Range: 0…320 s
Resolution: 0,01 s
Factory setting: 2,0 s
Customer setting ________ s
Deceleration Time
∆ n speed change
∆ t deceleration for ∆ n
∆ t
CP.8 = x 1000 rpm
∆ n
Example:
The drive should decelerate from 800 rpm to 300 rpm in 1 s.
∆∆
∆∆
∆ n = 800 rpm - 300 rpm = 500 rpm
∆∆
∆∆
∆ t = 1 s
∆ t1 s
CP.8 = x 1000 rpm = x 1000 rpm = 2 s
∆ n 500 rpm
t [s]
CP.8
n [rpm]
1000
800
300
0
0,5 1 1,5 2
∆ t
∆ n
Torque Limit
Adjusts the maximum permissible torque of the drive. The parameter can be influenced
by the analog torque limitation. During open-loop operation (CP.32 = 0) this
parameter has no function.
Adjustment Range: 0…5 x M
N
Nm
Resolution: 0,1 Nm
Factory setting: dependent on size
Customer setting ________ Nm
max. tolerance: approx. ±20 % in base speed range
(In the field weakening range larger tolerances are possible, also see reference on
page 4)
Analog Limiting
Terminals X2.16 / X2.17
! only when CP.36 = 5 !
CP.9
+100
M [Nm]
U [V]
(REF
2)
