7.3 Selection and Changing
of Parameters
7. Operation
7.4 Storing Parameter Value

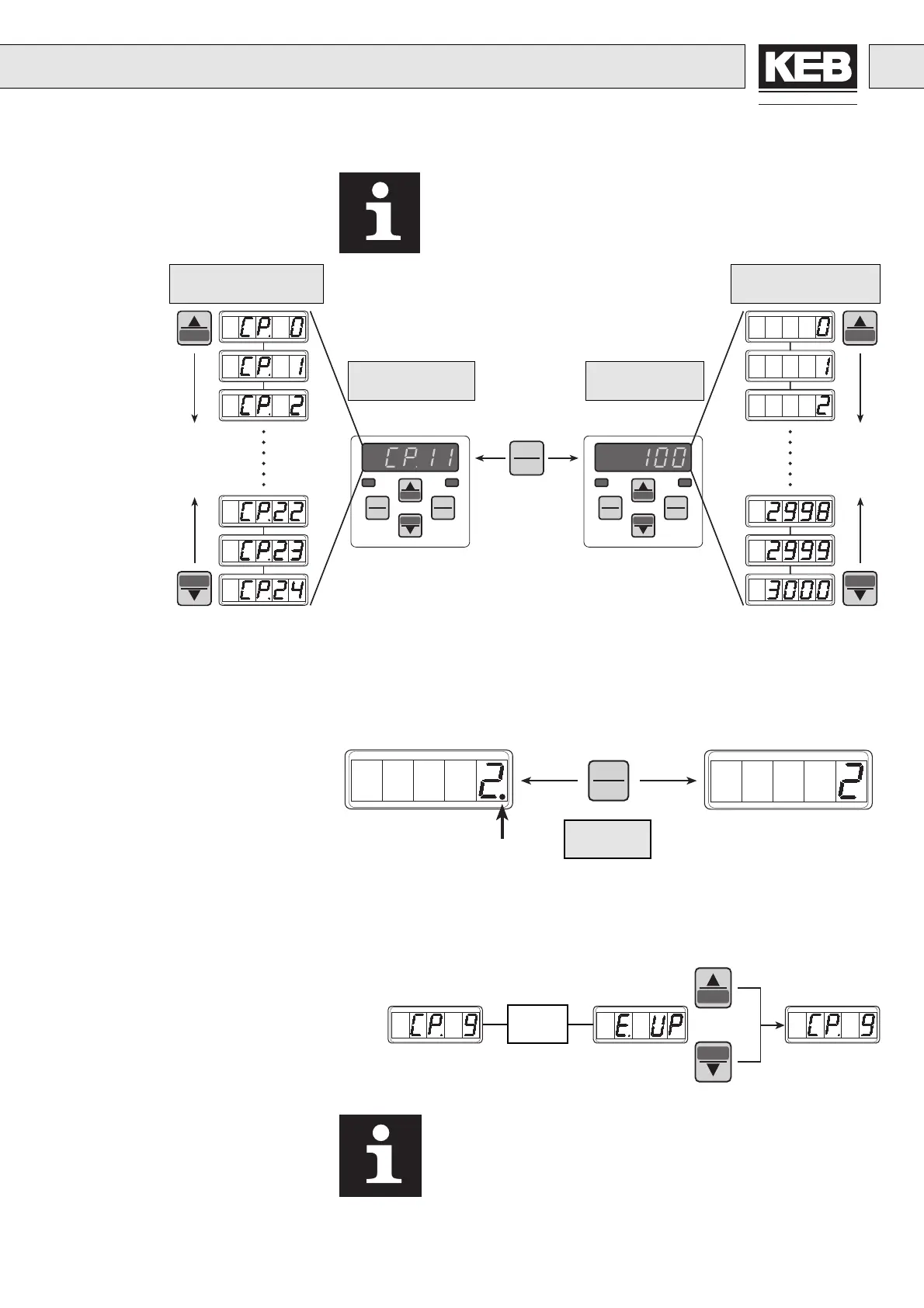

When changing the value of an ENTER-Parameter a point appears behind the
last digit in the display. By pressing the ENTERkey the adjusted value is accepted
and stored (point disappears).
Example:
When switching on the servo controller the
display always shows the value of parameter
CP.1 (Status Display).
Raising / decreasing
of parameter number
Display of
parameter number
Display of
parameter value
Raising / decreasing
of parameter value
Acceptance /
Storing
7.5 Error Message
If an error occurs during operation the current display is overwritten by the error
message. To reset the error message press the key "UP" or "DOWN" .
Example:
Error /
Fault
or
The keys UP / DOWN only reset the error message. To reset
the error itself the error cause must be eliminated first and a
reset at terminal X2.2 or a cold start must be carried out.
! Error Massages / Error Diagnosis see page E 44 !
