KEB COMBIVERT S4 User Manual

E 39
ANTRIEBSTECHNIK
PA PB
PA PB

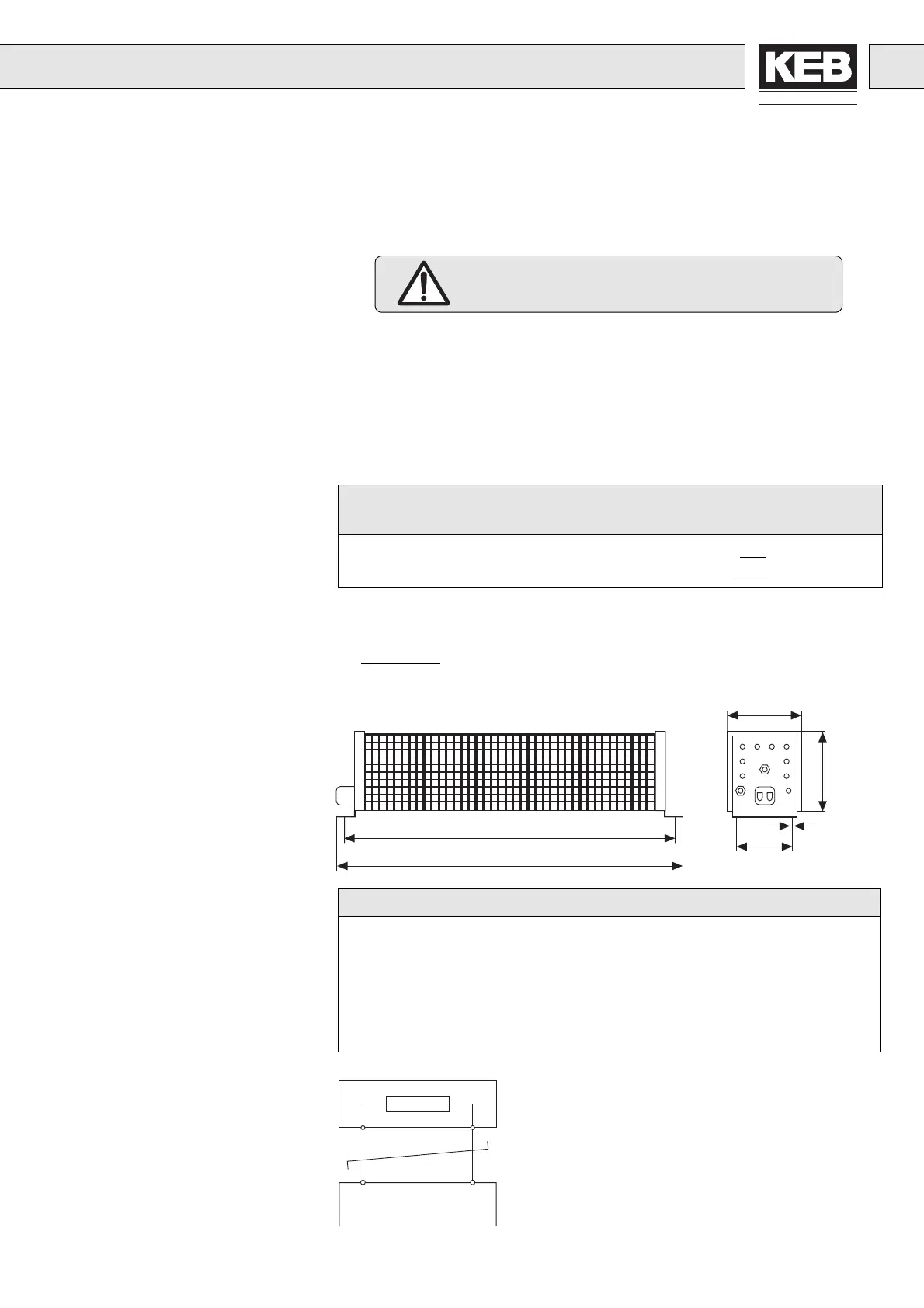

10.1 External Braking
Resistor
The braking resistor heats up during the braking operation. If the braking resistor
is installed in the control cabinet sufficient cooling of the cabinet interior must be
provided and a sufficient distance to the KEB COMBIVERT S4 must be kept.
10.1.2 Technical Data
10.1.4 Connection
KEB COMBIVERT S4
The external braking resistor is connected with the
shortest possible line (twisted) to the terminals PA and
PB.
14.56.080 – 4008 Braking resistor 6 % c.d.f.
14.56.080 – 4018 Braking resistor 25 % c.d.f.
14.56.080 – 4028 Braking resistor 40 % c.d.f.
15.56.080 – 4008 Braking resistor 6 % c.d.f.
15.56.080 – 4018 Braking resistor 25 % c.d.f.
15.56.080 – 4028 Braking resistor 40 % c.d.f.
10.1.1 Part No.
Do not mount the external braking resistor below the
servo controller !
1)
Rated resistor value P
N
depends on the peak braking power and the cyclic
duration factor c.d.f. [%]
2)
Short-time taken up peak braking power P
R
Dimensioning servo controller : motor = 1 : 1
Marked value = Standard resistor (Other resistors on request!)
10.1.3 Dimensions
A
E
B
5,8 x12
D
C
10. Accessories
R
B
P
R
2)
Controller P
N
1)
[W]
Part No. [Ohm] [kW] size 6% 25% 40%
14.56.080 – 4xx8 82 7,0 03…10 800 2700 3700
15.56.080 – 4xx8 56 10,3 12 1200 3700 5500
Part No. A B C D E
13.56.080-4008 426 64 92 120 466
13.56.080-4018 430 190 230 145 468
13.56.080-4028 630 190 230 145 668
14.56.080-4008 526 64 92 120 550
14.56.080-4018 630 190 230 145 650
14.56.080-4028 830 190 230 145 850
