KEB COMBIVERT S4 User Manual

E 42
10. Accessories
As an accessory to the local operation an operator is necessary. To prevent
malfunctions, the Servo Controller must be brought into nOP status before
connecting/disconnecting the operator (open control release terminal X2.1).
When starting the Servo controller whitout an operator, it is started with the last
stored values or factory setting. The operator is obtainable in different versions:

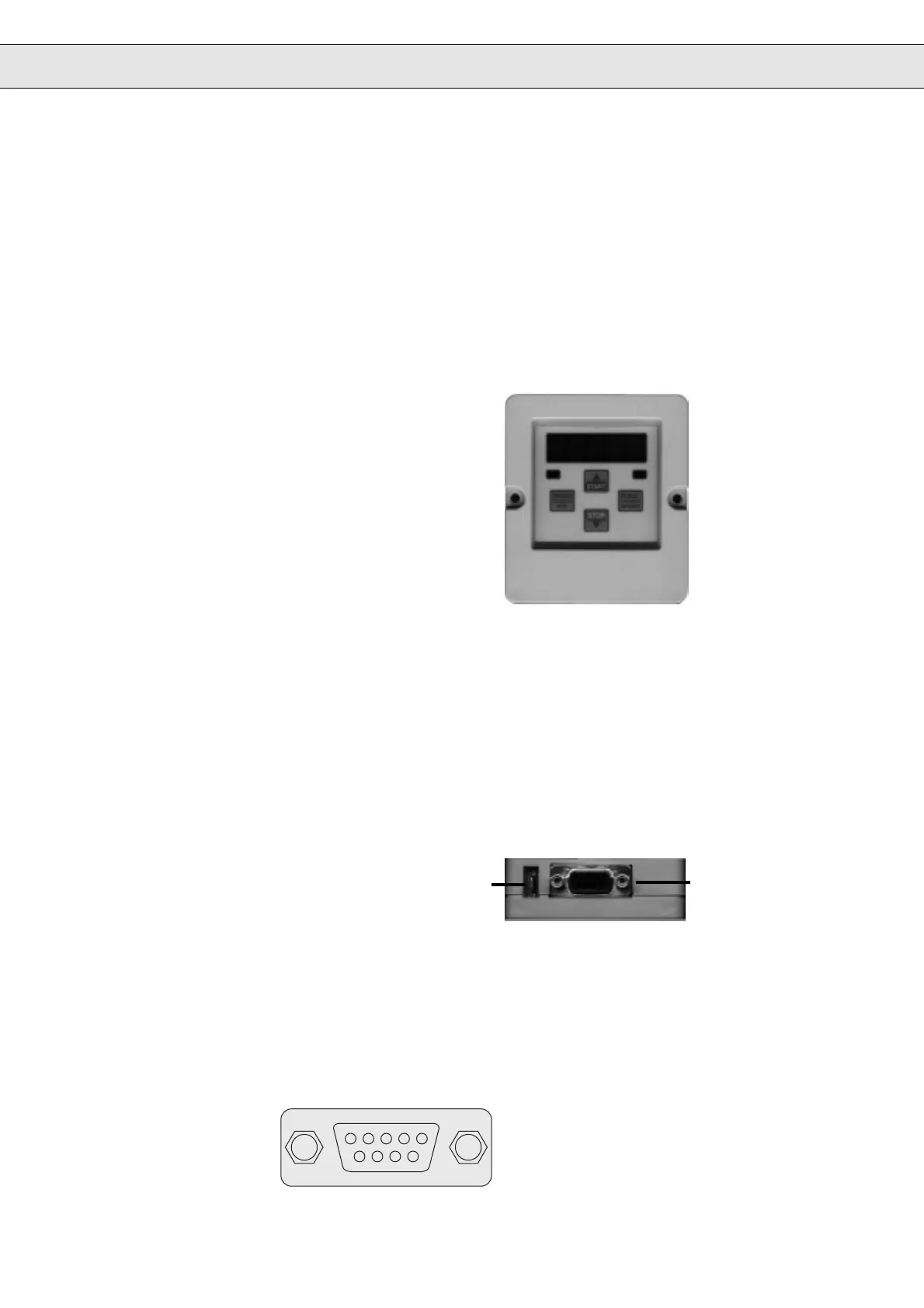

10.4 Operator
Double function keyboard
Interface control
Transmit "LED flickers"
5-digit LED-Display
Digital-OperatorDigital-Operator
Digital-OperatorDigital-Operator
Digital-Operator
Part.-No. 00.F4.010-2009Part.-No. 00.F4.010-2009
Part.-No. 00.F4.010-2009Part.-No. 00.F4.010-2009
Part.-No. 00.F4.010-2009
Interface-OperatorInterface-Operator
Interface-OperatorInterface-Operator
Interface-Operator
Part.-No. 00.F4.010-1009Part.-No. 00.F4.010-1009
Part.-No. 00.F4.010-1009Part.-No. 00.F4.010-1009
Part.-No. 00.F4.010-1009
RS232/RS485
PE-Connection
! Connection see page E 23 !
In the Interface operator there is an additionally isolated RS232/RS485-Interface
integrated. The RS232/485-parameterizing interface expands the KEB
COMBIVERT S4 for communication with data communications equipment.
Suitable wiring permits the physically isolated data transmission.
Operating-/Error display
Normal "LED on"
Error "LED blinks"
12345
6789
Servo controller
Parameterizing interface
PIN No. RS485 Signal Meaning
Norm
1 – – reserved
2 – TxD Transmit signal / RS232
3 – RxD Receive signal / RS232
4 A' RxD-A Receive signal A / RS485
5 B' RxD-B Receive signal B / RS485
6 – VP Supply voltage
+5 V, I
max
= 10 mA
7 C/C' COM Data reference potential
8 A TxD-A Transmit signal A / RS485
9 B TxD-B Transmit signal B / RS485
