KEB COMBIVERT S4 User Manual

E 29
ANTRIEBSTECHNIK

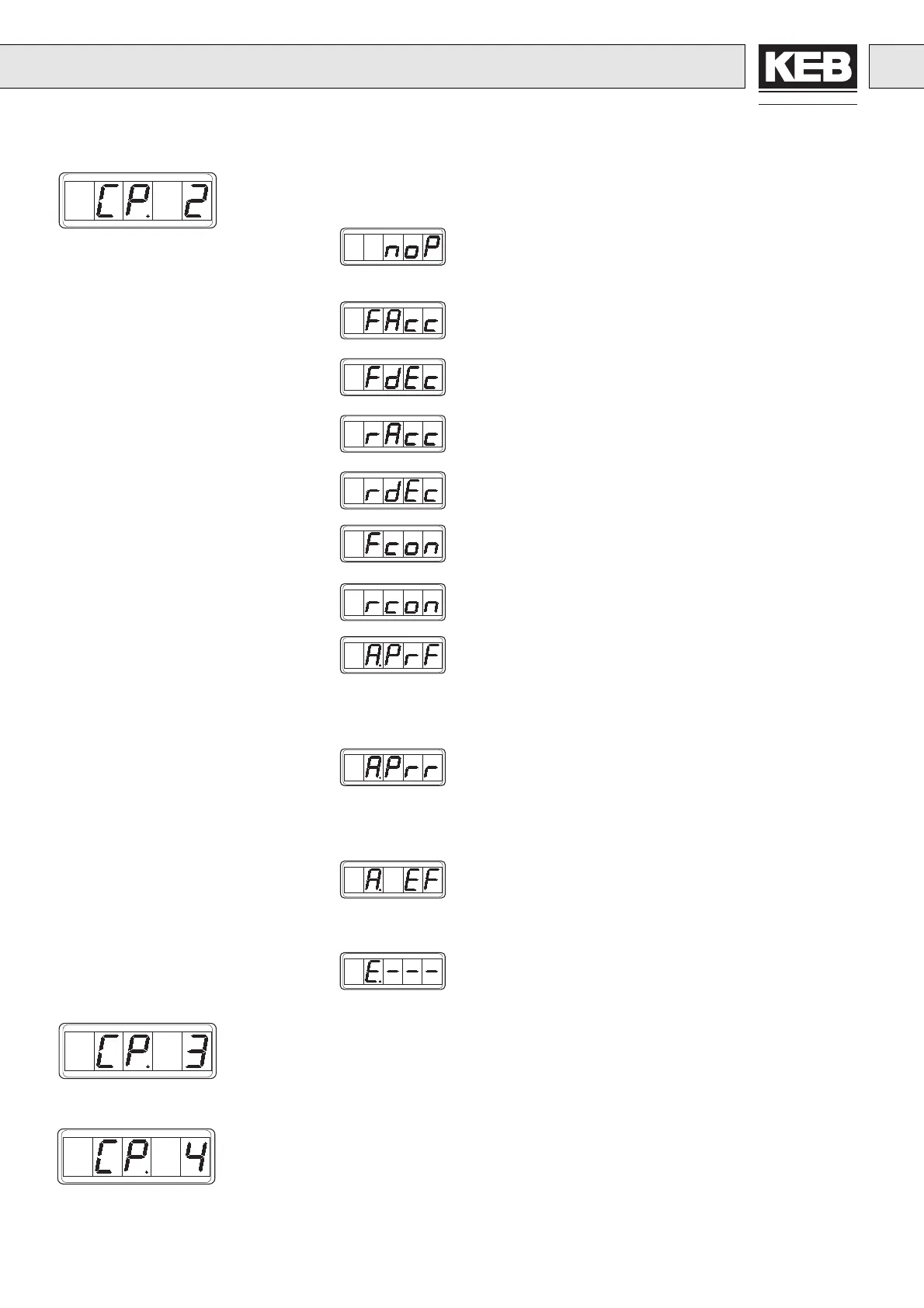

Status Display
The status display indicates the current operating condition of the servo controller.
Possible indications and their meaning are listed in the following:
no Operation –Control release (terminal X2.1)not activated
–Modulation switched off
– Output voltage= 0V/drive uncontrolled
Forward – Drive accelerates with forward direction of
acceleration rotation
Forward – Drive decelerates with forward direction of
deceleration rotation
Reverse –Drive accelerates with reverse direction of
acceleration rotation
Reverse –Drive decelerates with reverse direction of
deceleration rotation
Forward – Drive runs with constant speed and forward
constant direction of rotation
Reverse –Drive runs with constant speed and revers
constant direction of rotation
Prohibited – Rotation release at terminal X2.3 is missing:
rotation Drive does not start with positive reference
forward value or decelerates to standstill(speed zero
is maintained). After release of rotation the
drive starts again automatically.
Prohibited – Rotation release at terminal X2.4 is missing:
rotation Drive does not start with negative reference
reverse value or decelerates to standstill ( speed zero
is maintained). After release of rotation the
dirve starts again automatically.
External – The signal for an external fault is applied to
fault terminal X2.7. The response of the drive to
external faults is adjusted with parameter
CP.15
–Error - Messages see Page E 44
"Error Diagnoses"
A
b
n
o
r
m
a
l
S
t
o
p
p
i
n
g
Apparent Motor Current
Indication of the current apparent motor current in ampere.
Resolution: 0,1 A
Apparent Motor Current
Peak Value
Indication of the maximum apparent motor current measured during operation, in
ampere.
Resolution: 0,1 A
8. Parameter Description
