8.4 Rear absorber
8.4.1 Disassembly
Remove the seat and the rear left/right guard.
Remove the rear storage box, rear rack assembly and rear
fender.
Remove fixing bolts of the rear absorber.
Remove the rear absorber.
8.4.2 Installation

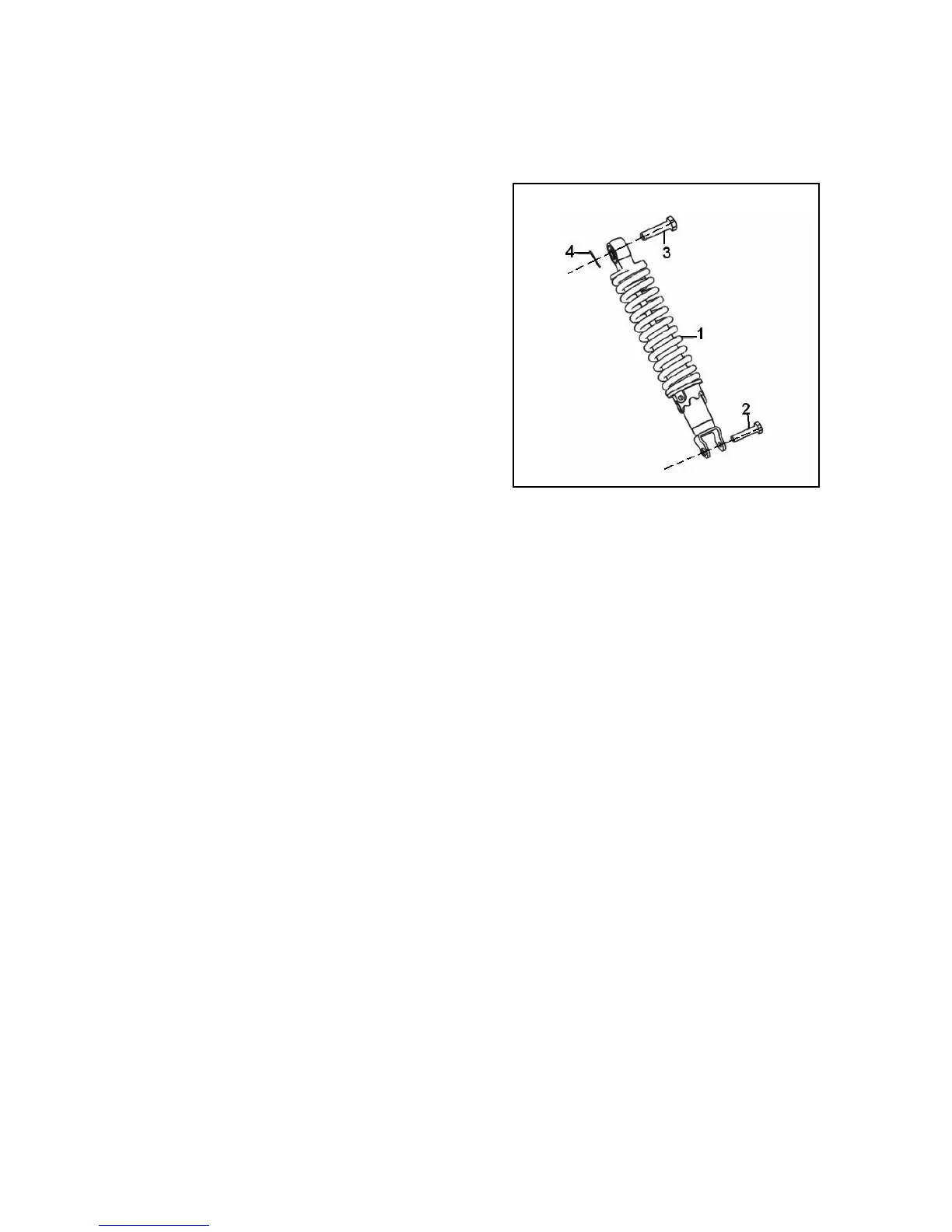

Installation of the rear absorber:
Torque force:
Upper fixing nut: 37-44 N·m
Lower fixing nut:22-29 N·m
Install the rear absorber.
Install the rear storage box, rear rack assembly and rear fender.
Install the seat and the rear left/right guard.
