87
Body

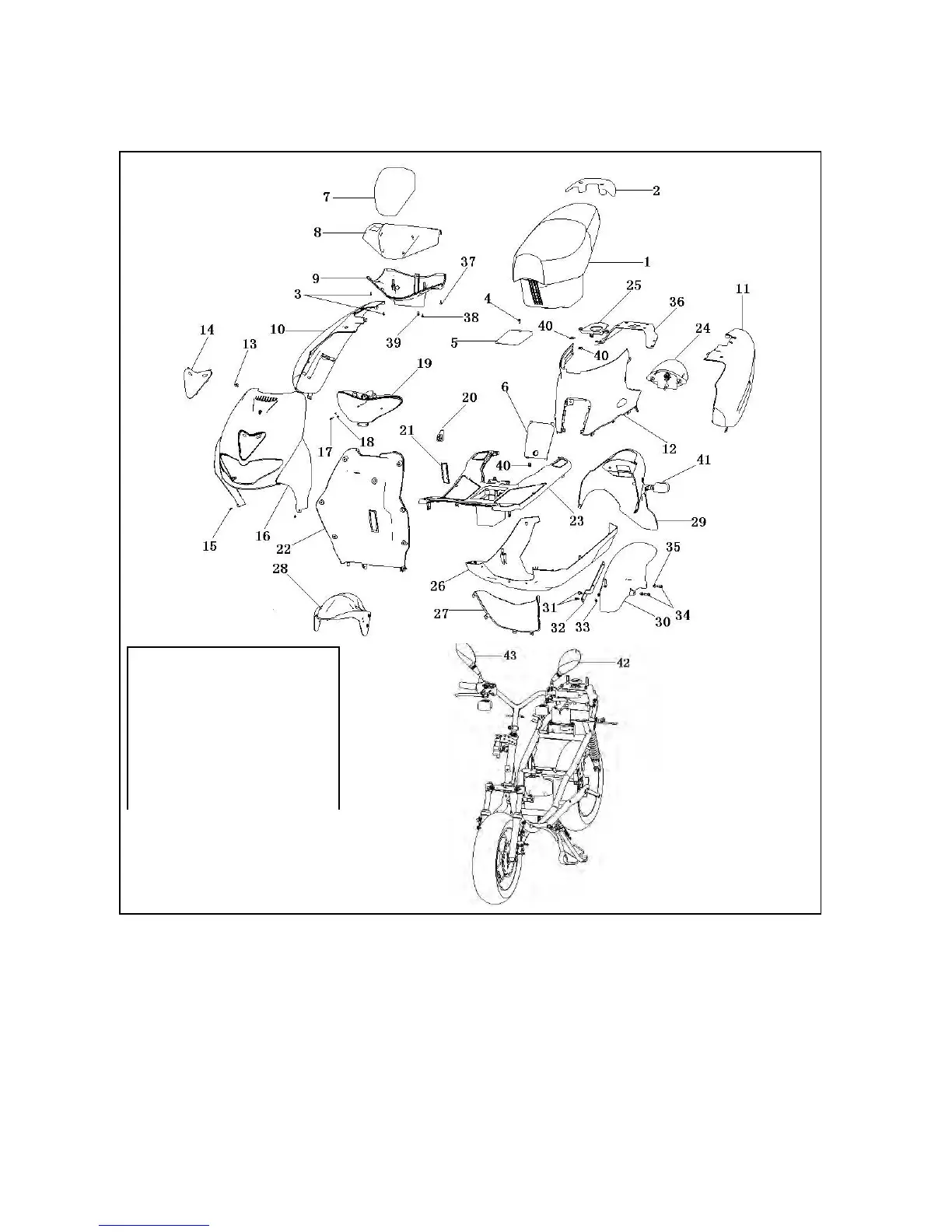

1seat assembly 2rear rack 3 tapping screw ST3×10 4 tapping screw ST5×16 5 battery box cover 6 helmet box
front cover 7odometer shade 8 handlebar cover 1 9 handlebar cover 2 10 right guard 11left guard 12 connecting
bracket of the left/right guard I 13 screw M6×14 14 decorating panel of the front shield 15 tapping screw
ST4.2×16 16 front shield 17 tapping screw ST5×16 18 tapping screw ST4.8×16 19 headlamp 20helmet hook
21 frame number cover 22 foot protection board 23 foot pedal 24 tail lamp 25 connecting bracket of the left/right
guard II 26 lower cover of foot protection board 27 front inner fender 28 front fender 29 rear license plate
bracket 30 rear fender 31bolt M6×12 32rear fender bracket 33 card nut M6 34 bolt M6×20 35 rear fender
spacer bush 36 rear shelves bearing 37 tapping screw ST4×12 38 tapping screw ST5×12 39 screw M5×14 40
card 41 rear left steering lamp 42 left rearview mirror 43 right rearview mirror
*Note:
Do not damage any body part during
disassembly.
Do not damage any hook or claw in
the body during disassembly.
Aim panels in the body at each
corresponding groove.
