Remove the spacer and the locating pin.
Remove the clutch spindle and gear of output shaft.
Remove the middle shaft and the middle gear.
15.3.2 Check the Output Gearbox Cover
Check abrasion and damage of the clutch spindle, gear and bearing.
Exchange gearbox cover bearings.
Press the clutch spindle when the clutch spindle bearings are exchanged; remove it from the gearbox cover.
Note:
Removed bearing cannot be used any more. It shall be replaced.
Use special tools to dismantle the bearing and the oil seal.
Remove the oil seal from the gearbox and knock the bearing out.
Note:
Removed bearing cannot be used any more. It shall be replaced.
Use special tools to dismantle the bearing and the oil seal.
15.4 Assembly
Assemble it in reverse order.
Note:
Use special tools to assemble the bearing and the oil seal to avoid any damage.

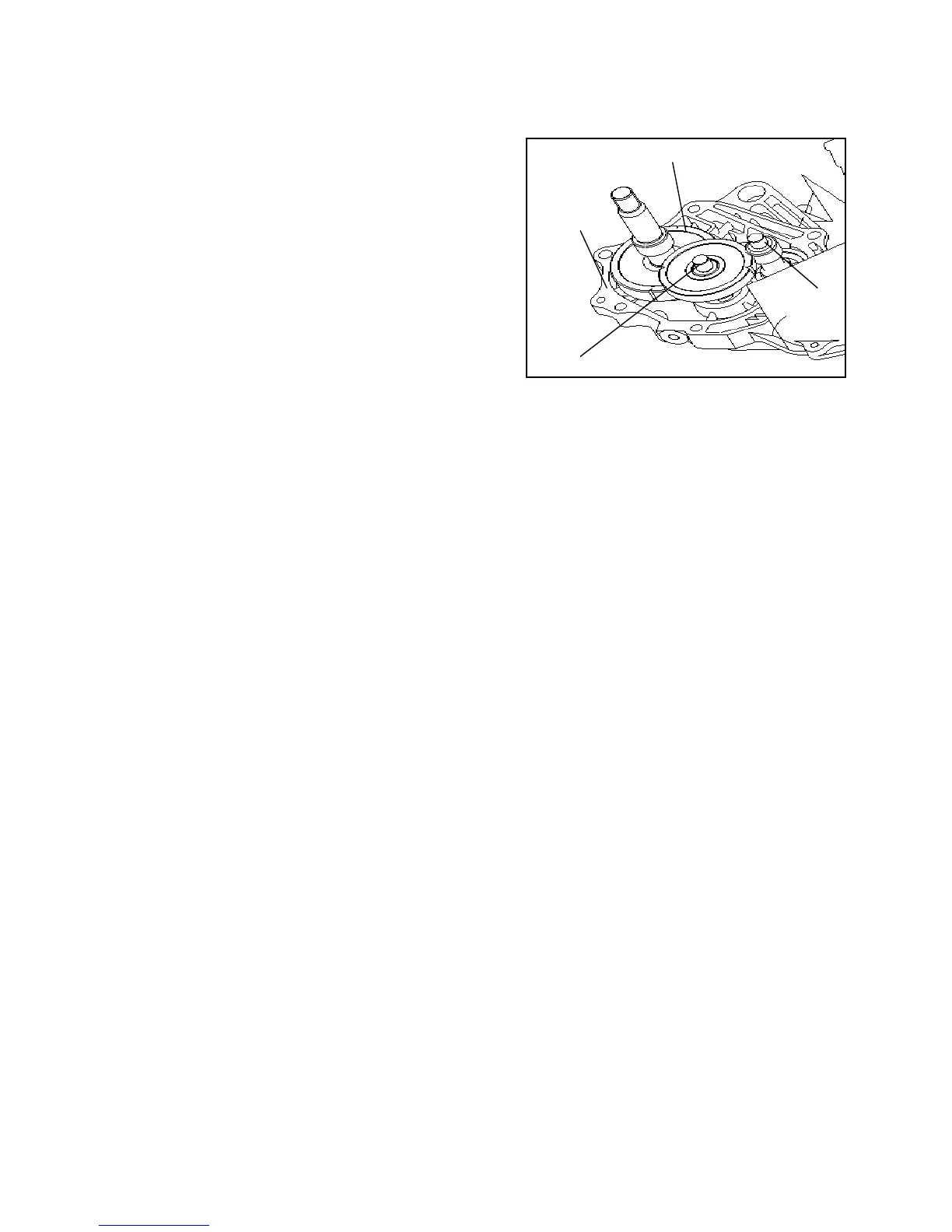

Middle shaft Middle gear
Clutch spindle
Spacer
Output shaft gear
