4.3.2 Installation
Install the bulb in reverse order.

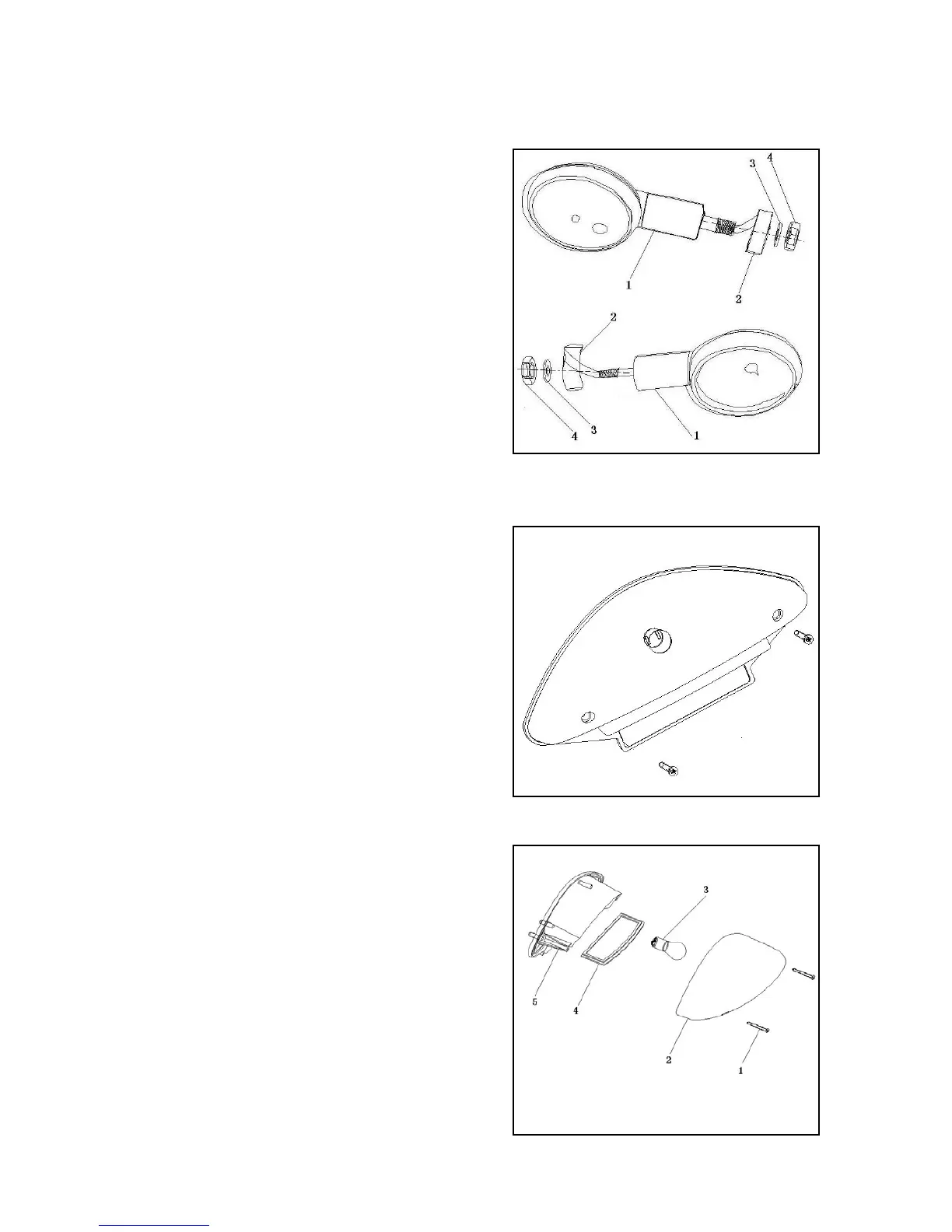

4.4 Replacement of rear steering lamp
bulbs
4.4.1 Disassembly
Remove the foot guard and pedal assembly.
Remove the front shield, and disconnect the steering lamp
connecting wire.
Loosen the fixing nuts (4) of the steering lamp.
Remove the bulb from the socket.
4.4.2 Installation
Install the bulb in reverse order.
4.5 Replacement of tail lamp bulbs
4.5.1 Disassembly
Remove the seat.
Remove the fixing screws of rear left/right guard for
dismantling the tail lamp shade.
Disconnect the tail lamp connector.
Remove the rear left/right guard, and then the tail lamp
shade.
Remove the tail lamp
4.5.2 Installation
Install the tail lamp in reverse order.
4.5.3 Replacement of tail lamp bulbs
4.5.3.1 Disassembly
Remove fixing screws of the tail lamp shade.
Remove the tail lamp shade for dismantling tail lamp bulb.
Remove the bulb from the socket.
4.5.3.2 Installation
Install the bulb in reverse order.
