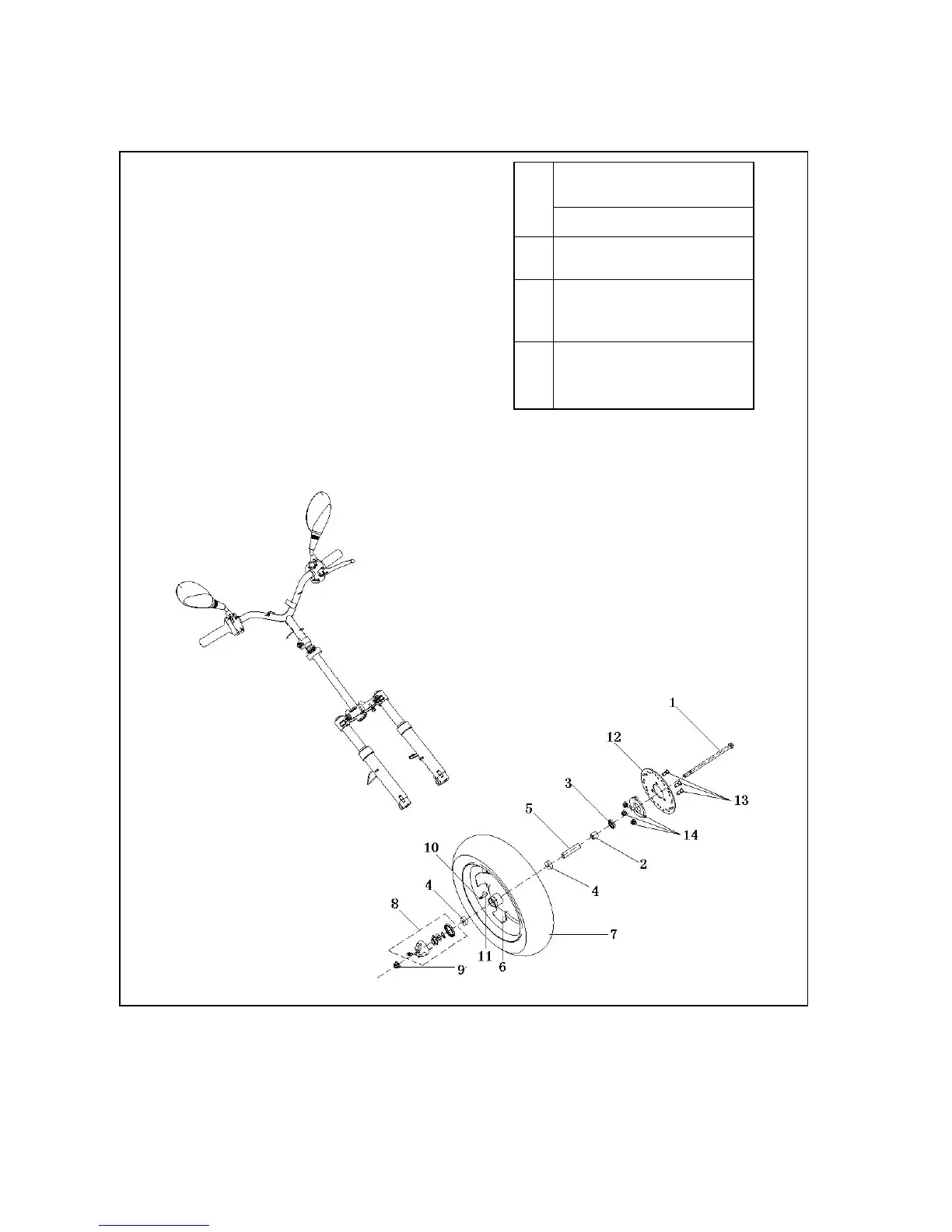

Front wheel
1 front wheel spindle M12Χ1.25Χ224 2 left spindle sleeve of front wheel 3 oil seal 22×35×7 4 bearing 6201-2RS
5 middle spindle sleeve assembly 6 front rim 3.50×12 7 tire 120/70-12 8 gear housing assembly 9 nut M12Χ1.25
10 valve cap 11 valve 12 front brake disc 13 installation nut of front brake disc 14 nut
Tire size: outer tire 120/70-12
A
Auth. No. of the front wheel outer
tire: E11 75R 000210
B
Rim size：3.50×12
C
Rim run-out limit:
Vertically: 2.0mm
Horizontally: 2.0mm
D
Front wheel spindle bending limit:
0.2mm
