4. Bulbs/Switches/Meters
Preparing documents ---------------------4.1 Meters -------------------------4.6
Failure diagnosis--------------------------4.2 Main switch ------------------4.7
Replacement of headlamp bulbs --------4.3 Horn ---------------------------4.8
Replacement of front steering lamp bulbs------4.4 Handlebar switch -------4.9
Replacement of tail lamp bulbs---------4.5
4.1 Preparing documents
Work Instructions
Remove the switch from the vehicle to measure its conduction
4.2 Failure diagnosis
When the main switch “ON” is not light, it is due to
• Poor bulbs.
• Poor switch.
• Bad contact or broken wires
4.3 Replacement of headlamp bulbs
4.3.1 Disassembly
Remove the foot guard and pedal assembly.
Remove the front shield.
Disconnect the headlamp connector.
Remove fixing screws for dismantling the headlamp.
Remove the headlamp.
Remove the glass of the headlamp.
Fix the headlamp and rotate the socket clockwise to remove
the bulb.

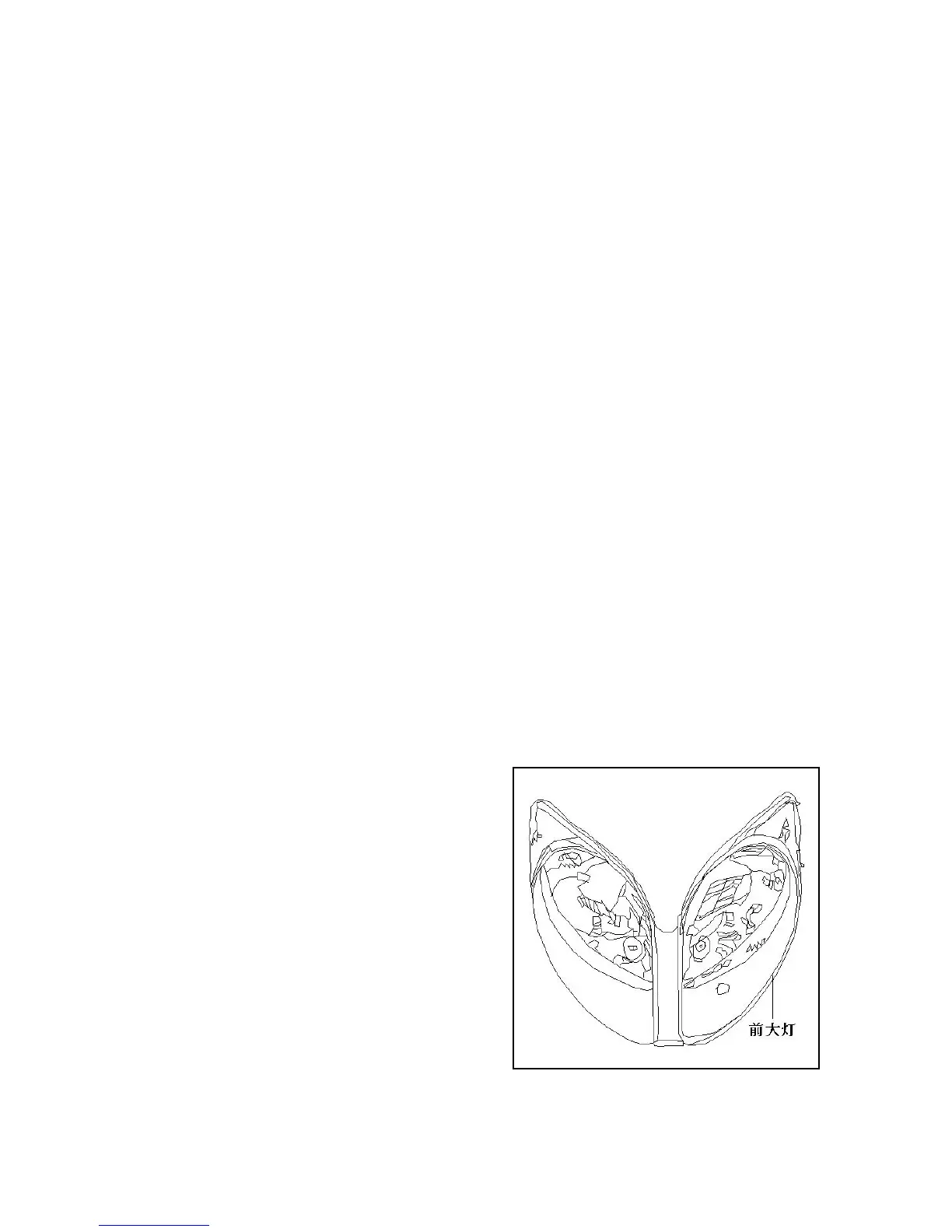

（前大灯：front lamp）
