Check
Remove the 6p connector of the magnetor.
Measure impedance between the white coil of the magnetor and the body with multimeter.
Standard: 1.5-2Ω（20）
Replace the magnetor coil when the measured value exceeds the standard value.
1.7 Magnetor lighting coil
* Note
Check the magnetor lighting coil on the engine.
1.7.1 Check
Remove the 3p connector of the magnetor.
Measure impedance between the green/red coil of the magnetor
and the body with multimeter.
Standard: 2.0-2.5Ω（20） （螺栓：bolt 冷却风扇：cooling fan）
Replace the magnetor coil when the measured value exceeds the
standard value.
1.7.2 Disassembly
Remove the body guard.
Remove the right body guard.
Remove the fixing bolts and screws; dismantle the fan cover.

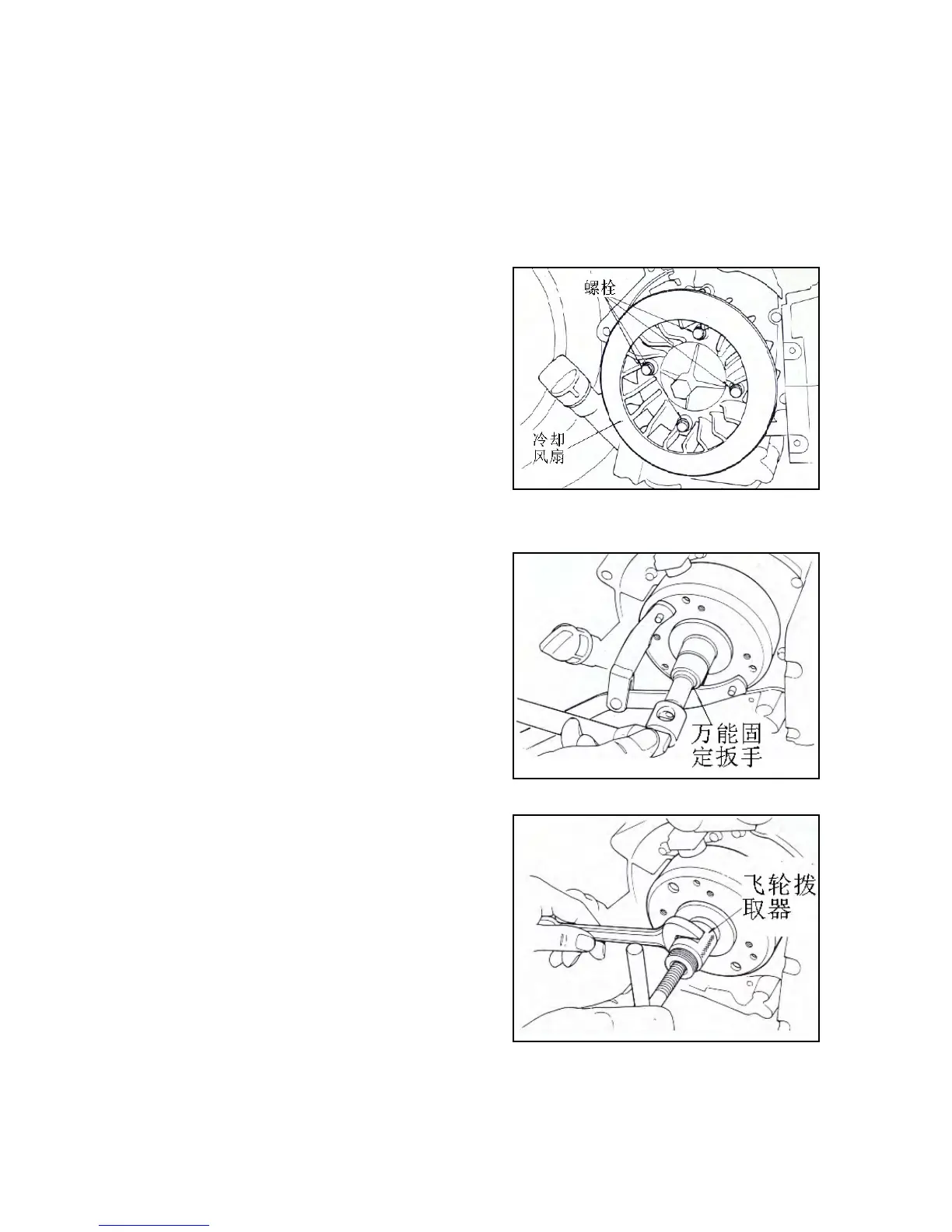

Remove four fixing bolts of the cooling fan; dismantle the （万能固定板手：universal fixing spanner）
cooling fan.
Fix the flywheel using the universal spanner.
Remove fixing bolts of the flywheel.
Remove the flywheel using the flywheel remover.
Remove the solid key.
Remove the conductor joint.
Remove the stator.
（飞轮拔取器：flywheel remover）
