* Note

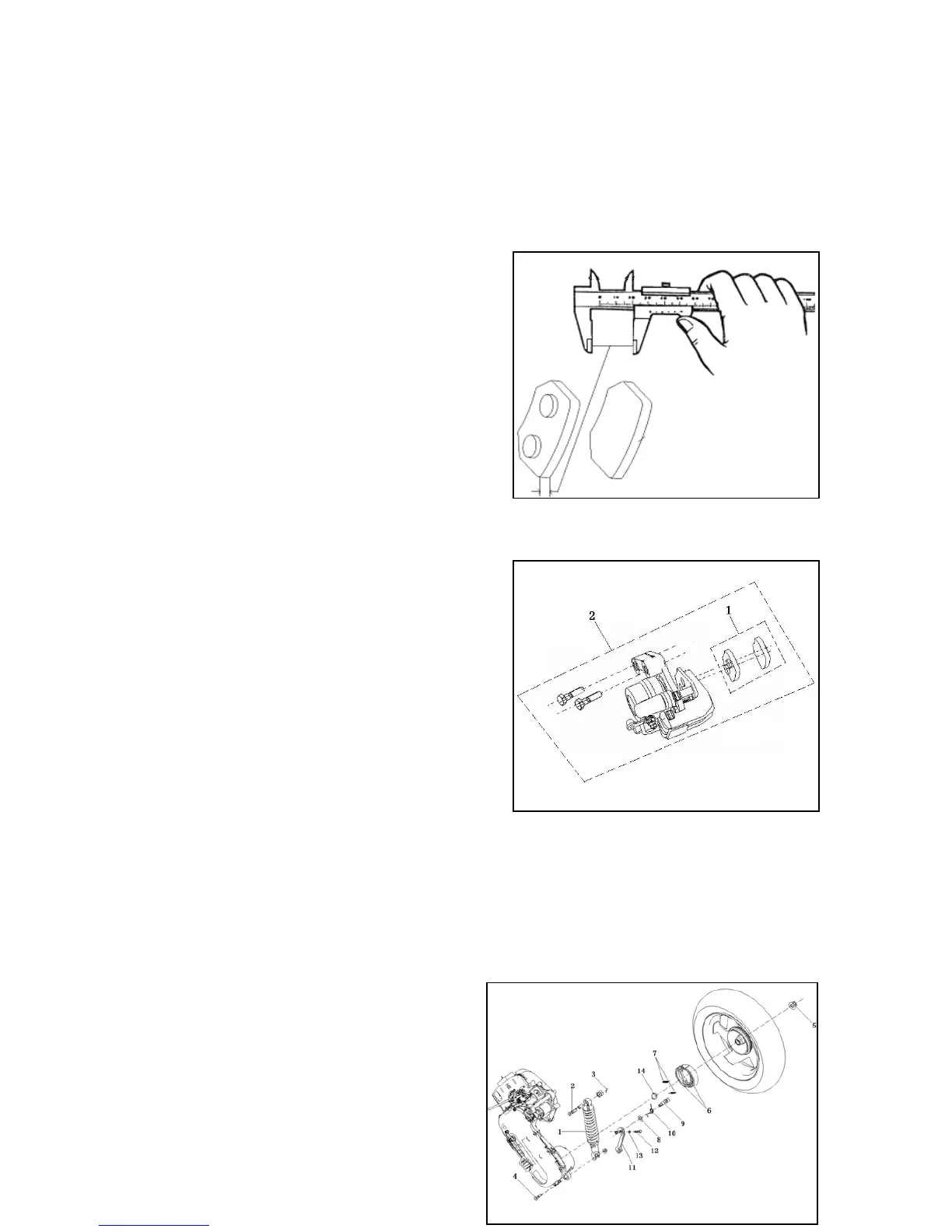

• Measurement with micrometer.
Measure the thickness of the friction disc assembly.
If the thickness of the front brake disc or the friction disc assembly is below the required value for maintenance or
it is stained with grease, please replace it.
Limit for use: friction disc 5.0mm
Front brake disc 2.6mm
Note:
Replace friction discs in pair.
The friction disc can be measured within the motorcycle
without removing down.
5.3.3 Installation
Install the front brake disc and the front wheel.
Install the front brake hose assembly and the brake cylinder
assembly.
Do not stain the friction discs and the front brake disc with grease.
* Note
Any grease on friction discs will reduce the brake
performance and even lead to failure.
Tighten bolts and nuts to the required torque force.
Torque force:
Fixing bolts for fuel pump assembly 5-9 N·m
Mounting bolts for front brake cylinder assembly 22-29 N·m
Do not stain friction discs with oil spots.
Use brake cleaning agent to clean friction discs with oil spots.
* Note
Any oil spot on friction discs will reduce brake performance.
5.4 Rear drum brake
5.4.1 Disassembly
