110

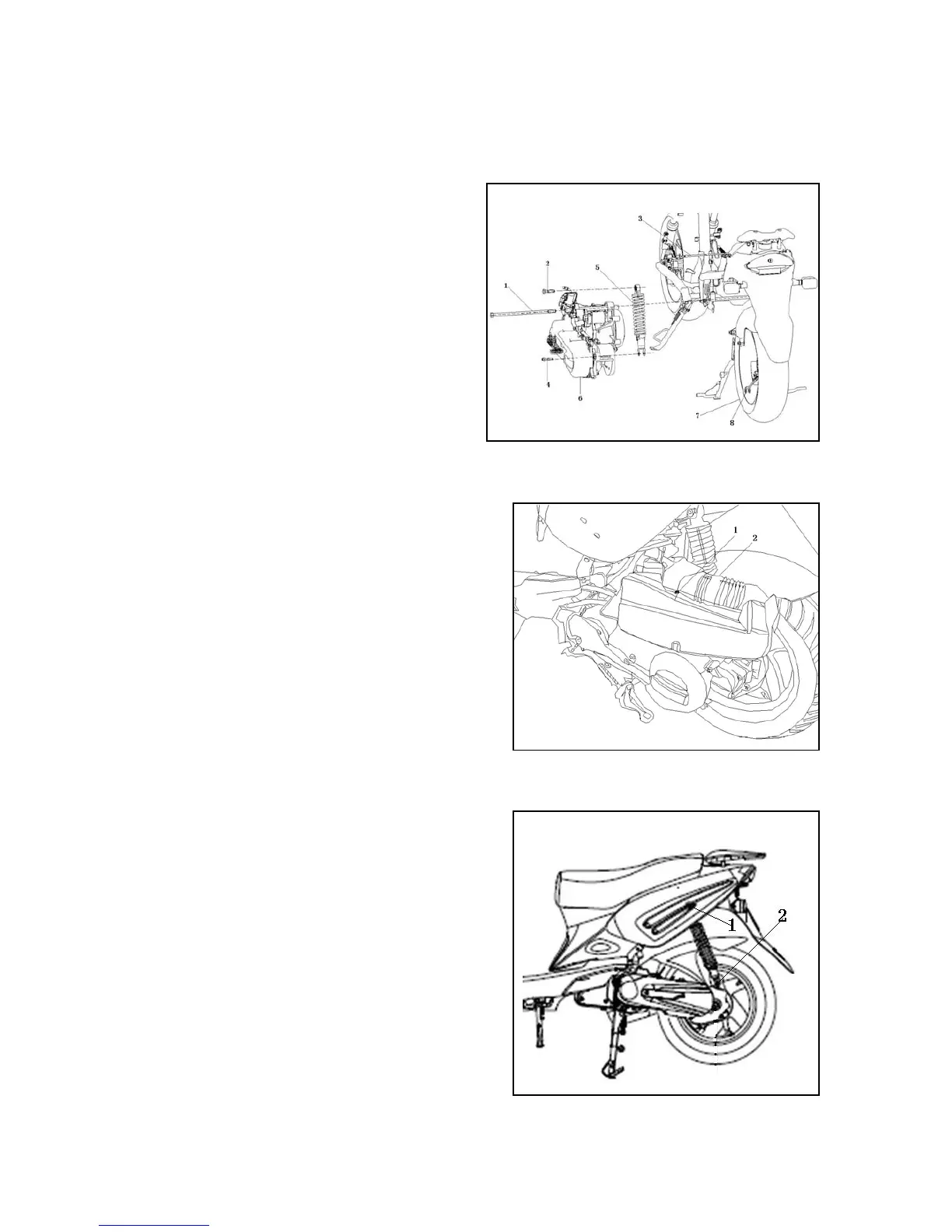

10.3 Disassembly of engine
10.3.1 Disassembly
Remove bolt and left crankcase ventilated tube.
Disassembly procedures:
-remove frame cover.
-remove gas filter.
-remove primary cable of ignition coil.
-remove starter motor cable.
-remove fuel tube and vacuum tube.
-remove starter valve 2P connector.
-remove magnetogenerator/ pulser 3P connector.
Remove bolt and underground cable of motorcycle.
remove rear shock absorber standing bolt (upper).
Remove the right suspension bolt and gasket.
Remove the left suspension bolt.
Remove the engine from the frame.
10.3.2 Engine suspension standing clamp
10.3.2.1 Disassembly
Remove spark plug cap.
Remove fuel tube and vacuum tube from carburetor.
Remove engine suspension bolt/nut and engine assembly.
Remove bolt and ignition coil.
remove bolt, fuel tube and vacuum tube.
10.3.2.2 Inspection
Check whether the shock absorber of engint suspension is
abraded or damaged.
Check whether the rubber ring of shock absorber is abraded
or damaged.
10.3.2.3 Installaiton
Install bolt and ignition coil.
Install fuel tube, vacuum tube and bolt.
Install spark plug cap.
