Kickstart Mechanism

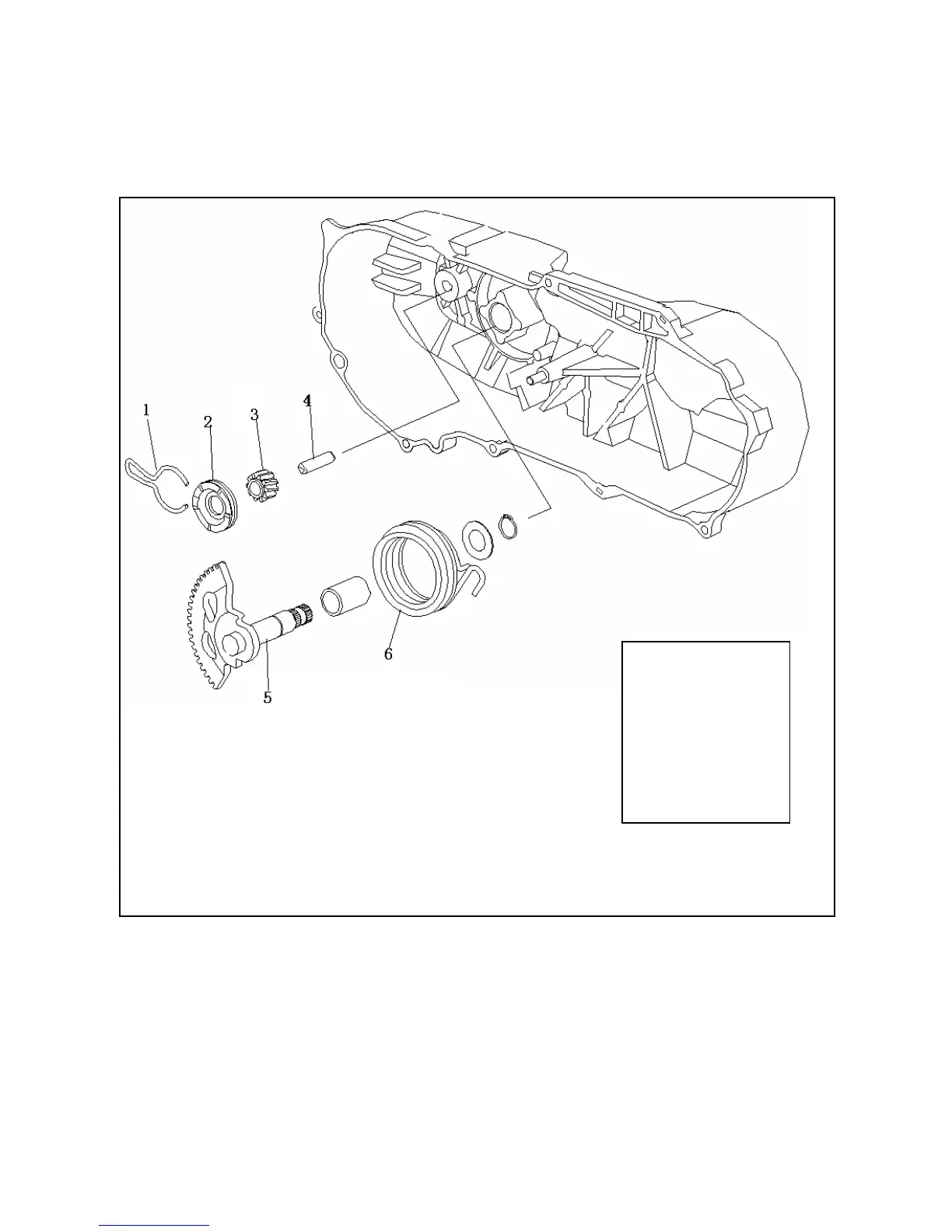

1. snap spring 2. start claw 3. idle gear 4. idler shaft 5. start shaft assembly 6. kickstart shaft spring
Note: During operation, the
surface of the triangle belt
can not be stained with any
grease which must be
removed. It helps avoid
slipping between the
triangle belt and the belt
pulley as much as possible.
